Train controller

Advertisement

Welcome

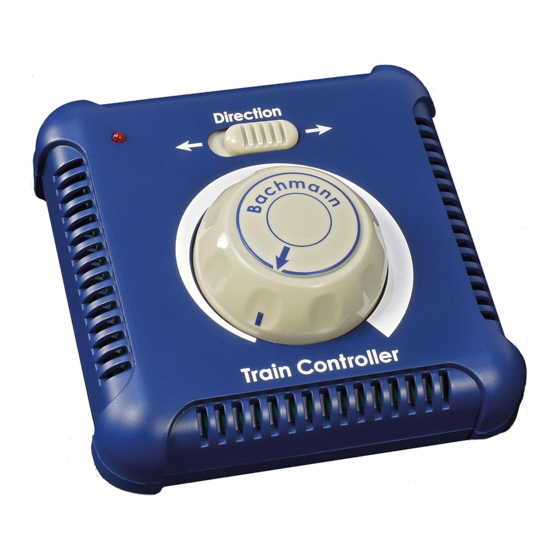

Many thanks for purchasing one of our Bachmann Train Controllers. Please read this leaflet before using. This
controller is suitable for use with DC (analogue) model railways in N, HO, OO and On30 scales.
Please retain this leaflet for future reference.

1. Contents

• 12v DC Train Controller (0.7amp power output)
• Mains Plug Power Transformer
• Track Power Clip
• Connector Lead for Power Clip
• Connector Lead with Plain End (for use with alternative track wiring methods)

2. Setting Up

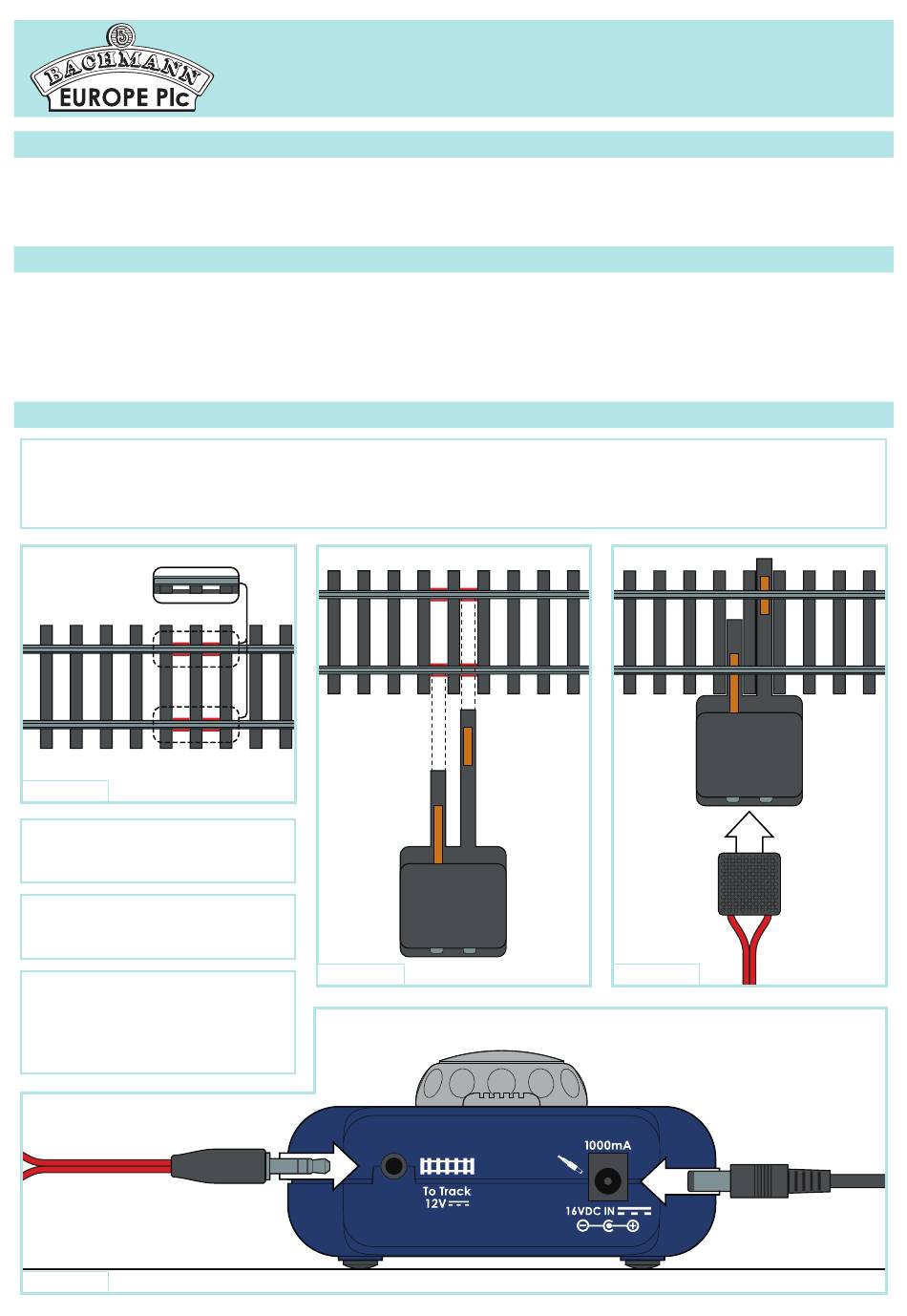

1. Connect the Track Power Clip to the track.
- Most pieces of track will have two apertures in the plastic beneath the rails, between the sleepers. These
apertures accommodate the forks of the Track Power Clip. Thread the forks of the Power Clip into these
apertures until the body of the clip touches the track sleepers. (figs.1, 2 & 3)
Apertures for
Power Clip
Power Clip
fig.1
Power Clip
2. Plug the Connector Lead with
Socket into the Track Power Clip.
(fig.3)
3. Plug the other end of the
Connector Lead into the Train
Controller. (fig.4)
4. Plug the Transformer Lead
into the Controller. Check that
the Speed Control Dial is turned
down and then plug into the
mains socket. (fig.4)
Track
fig.4
Bachmann Train Controller
Operating Instructions
Apertures for
Power Clip
Apertures for
Power Clip
Track
Track
Power Clip
fig.2
Connector
Lead Jack
Connector
Lead Jack
Apertures for
Power Clip
Track
Connector
Lead Jack
fig.3
Transformer
Connector
Lead Jack
Lead for
Power Clip
Transformer
Lead Jack
36-565 Instruction Sheet
Connector
Lead for
Power Clip
Connector
Lead for
Power Clip
Tran
Lead
