Summary of Contents for Opale-Paramodels Trike M

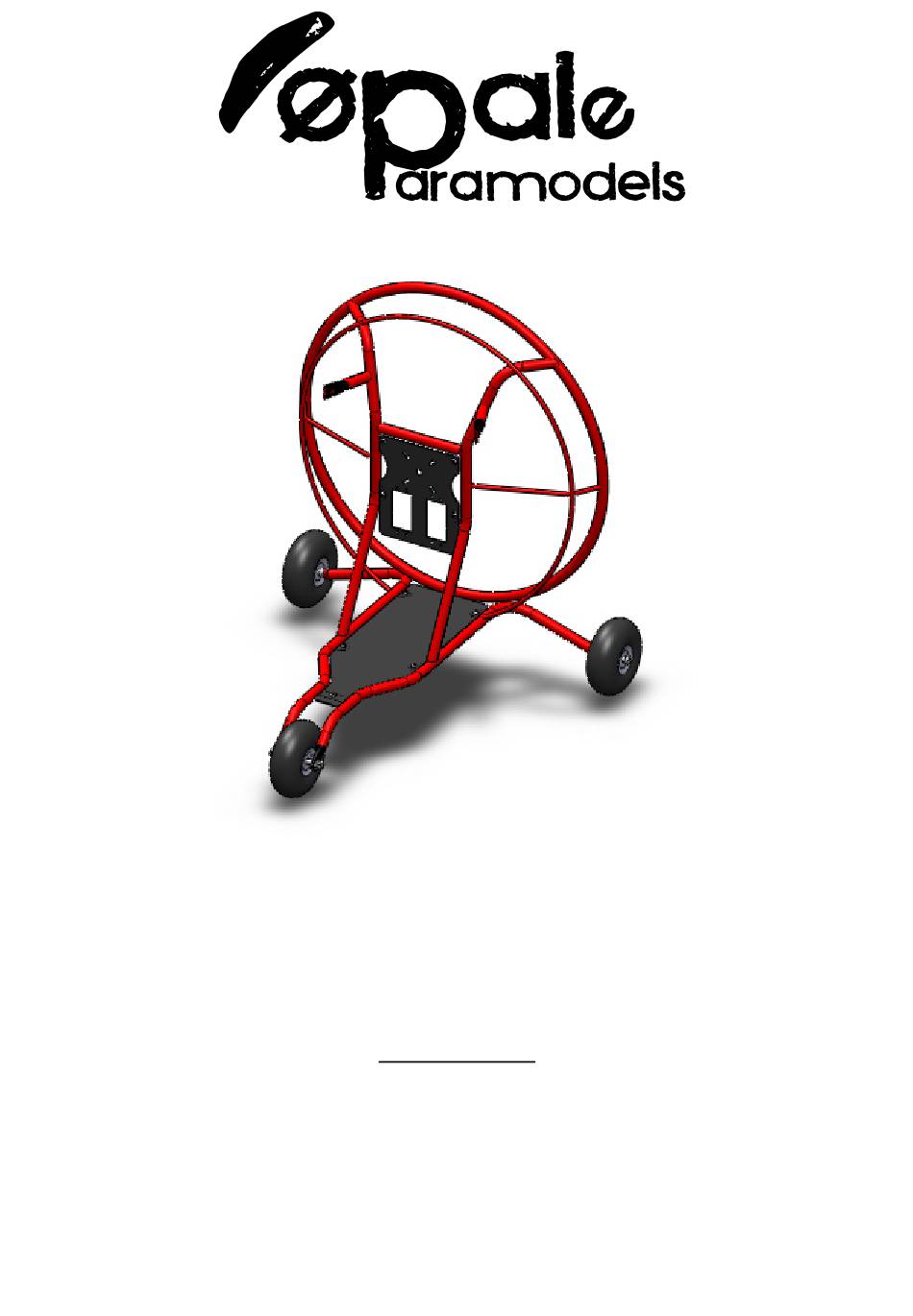

- Page 1 e e M M rI rI User’s G uide Please read carefully this manual before using your equipment for the first time. ©Copyright b y O pale-‐Paramodels 2 011 v 1.0 ...
-
Page 2: Safety Information
You hereby accept the inherent risk of flying radio-controlled models. Using our equipment in a bad way may increase risks. Neither Opale-Paramodels nor any other seller will be liable for any damage caused by any accident whatever the circumstances are. The way our equipment is used is incumbent upon the final user, including towards the law. - Page 3 Contents Kit content……………………………..……………………………………………………………………………………………………………………….3 2. Assembly Steps……...……..……………………………………………………………………………………………………………………………….3 Technical data: Width: 39 cm Height: 39 cm Length: 39 cm Empty weight: 850 gr (chassis + locking plates) Recommended motorization: 350 to 500W depending on the overall weight brought up in the air Maximum propeller size: 12 inches Chassis: Steel Locking plates: Aluminium...
-
Page 4: Assembly Steps
1. Trike M kit content Ttrike M kit content: 1x Red steel frame 2x Black aluminium locking plates 3x Aluminium wheels (77 mm diameter) 1x HSHC M5-40 screw 3x Nylstop M5 nuts 9x HSHC M2-8 screws 9x Nylstop M2 nuts 2x 10 kg.cm servomotors... - Page 5 Use the 5 screws wrapped in the plastic sachet as shown above (on the right side of the picture). Verify (and adjust if necessary) that the 2 holes of the aluminium rims are properly aligned and facing each other. Insert the 5 screws in the designed holes of the rim. Insert the nuts on the other side of the rim.
- Page 6 Front wheel mounting • To go through this steps you will need: 1x Already assembled wheel • 1x HSHC M5-40 screw • 1x Nylstop M5 nut • Do not hesitate to push the spacer rings aside to limit the play between the wheel and the frame before mounting the wheel.
- Page 7 Motor locking plate mounting : • To go through this step you will need: 1x Aluminium locking plate • 4x HSHC M2-8 screws • 4x Nylstop M2 nuts • ©Copyright b y O pale-‐Paramodels 2 011 v 1.0 ...
- Page 8 Lower locking plate mouting: • To go through this step you will need: 1x Aluminium locking plate • 5x HSHC M2-8 screws • 5x Nylstop M2 nuts • Installing the shackles to fasten the wing risers • To go through this step you will need: 2x Stainless-steel shackles (4mm diameter) Red frame...
- Page 9 Servomotors mounting • Please grab the parts shown on the picture below: Assembling the plastic arms onto the servomotors: Put the clear plastic arm aligned with the black plastic part in order to match the holes location. Then screw using the screws provided with the servomotor.
- Page 10 Cut the screw parts that are staying free on the other side of the plastic arms (on the black side). Mounting the servomotors onto the locking plate: • Please place the servomotors the way shown on the picture below: Use the last 2 screws that come with each servomotor to screw it onto the locking plate. Then plug you radio receiver and the servomotors and turn you radio transmitter on.
- Page 11 ©Copyright b y O pale-‐Paramodels 2 011 v 1.0 P age 1 1 / 1 2 ...
- Page 12 Should you have more questions, feel free to visit our FAQ section on our website or to contact us at: contact@opale-paramodels.com Enjoy your flights! ©Copyright b y O pale-‐Paramodels 2 011 v 1.0 ...
