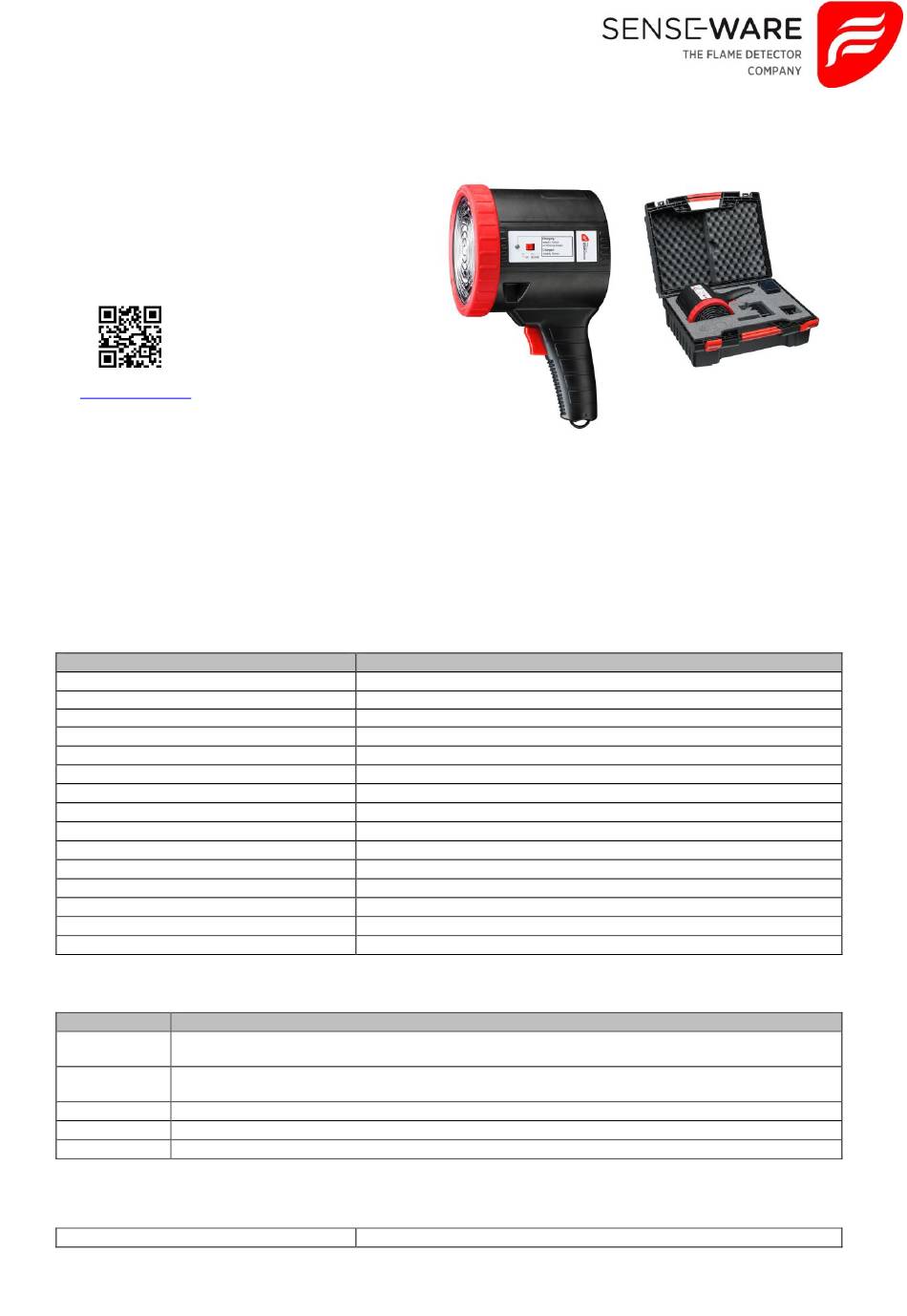

Sense-Ware T-229/4P Quick Manual

Universal Test Lamp T-229/4P for UV,
IR and UV/IR Flame Detectors
•

Specifications

•
User Guide
•
Instructions
www.testlamp.com

1. Description

The Sense-WARE T-229/4P Flame Detector Test Lamp activates UV, IR and UV/IR Flame Detectors which detect in
the 185-235 nm UV and 4.4 µ IR frequency ranges. For UV only detectors the maximum distance is up to 8 meters
(26 ft) in the continuous mode. The test range for IR and UV/IR detectors is up to 4 meters (13 ft). Most IR Flame
Detectors have an extra alarm criterion; analyzing the flicker frequency of a fire. The Test Lamp T-229/4P can be put
into the pulse mode by means of a selection switch on the left side of the Test Lamp. The lamp then emits pulsed
energy with a frequency of approx. 2 Hz. After the alarm delay time the IR or UV/IR Flame Detector will activate.
Not suitable for: IR/IR- (dual IR), IR/IR/IR (IR3 or triple IR) Flame Detectors, whether or not in combination with a
UV sensor. For use in safe areas only.
2. Specifications
Test Lamp:
Test range UV Flame Detectors
Test range IR and UV/IR Flame Detectors
Use
Housing; material, dimensions / weight
Ingress protection rating
Temperature range
Optional carrying case:
Dimensions / weight
Battery:
dimensions / weight
Charger, (Adapter):
dimensions / weight
Light bulb:
dimensions / weight
CE declaration:
Ordering Information
Part# Description
T-229/4P Test Lamp with Lamp, Battery and Charger, shipping dimensions / weight (box): 310 x 220 x 210
mm (12.5 x 9 x 8.5 "); 2.1 kg (4.5 lbs)
TC-229/4P Test Lamp with Lamp, Battery and Charger plus Carrying Case, shipping dimensions / weight
(box): 440 x 340 x 280 mm (17.5 x 13.5 x 11 "); 5 kg (11 lbs)
Spare battery, shipping dimensions / weight: 225 x 160 x 90 mm (9 x 6.5 x 3.5 "); 1.1 kg (2.4 lbs)
BATT4P
Spare charger, shipping dimensions / weight: 225 x 160 x 90 mm (9 x 6.5 x 3.5 "); 0.4 kg (0.9 lbs)
CH4P
Spare light bulb, shipping dimensions / weight: 225 x 160 x 90 mm (9 x 6.5 x 3.5 "); 0.2 kg (0.5 lbs)
BU4P
Origin and Statistic Numbers
Country of Origin / Statistic Numbers
P 1 / 2
up to 8 m (26 ft) in continuous mode, up to 4 m (13 ft) in pulse mode
up to 4 m (13 ft)
10-15 minutes under optimal conditions and continuous use
ABS/PC, 160 x 140 x 260 mm (6.5 x 5.5 x 10 "); 0.65 kg (1.4 lbs)
IP30
0
+4 to +40 C (+39 to +104
Polypropylene, inlay: Polyurethane
400 x 190 x 310 mm (16 x 8 x 12"); 2 kg (4.5 lbs)
Sealed Lead Acid, 12 V / 2.7 Ah
103 x 70 x 46 mm (12.5 x 9 x 8.5 "); 1 kg (2.2 lbs)
100-240 Vac, 1600 mA switching with pins for US, EU, GB and AU
148 x 100 x 45 mm (6 x 2.5 x 2 "); 0.25 kg (0.5 lbs)
Broad Band, 12 Vdc / 100 W
50 x 20 (D) mm (2 x 1(D) "); 0.03 kg (0.07 lbs)
See website
The Netherlands, EU (IS): 8531 10 30, USA (HS): 853110
SW_IN_T-229-4P_UV-IR_test-lamp_GEN2_v0_EN.docx
Carrying Case:
-Americas: Always included
-Rest of the World: Optional
0
F)
