S01.0.0X.6C-19
GHM GROUP - Greisinger
GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY
Tel.: +49 9402 9383-0 |
Installation and Operating Manual
GEWAS 191 AN / N
Please read these instructions
carefully before use!
Please consider the safety instructions!
Please keep for future reference!
info@greisinger.de

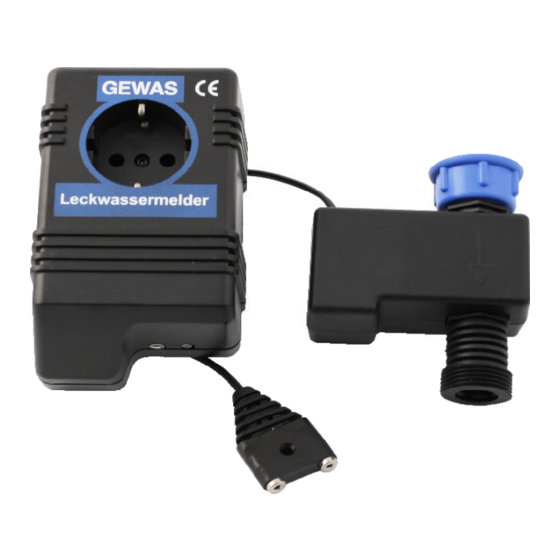

Alarm- and protection device
Leak-water detector
| www.greisinger.de
WEEE-Reg.-Nr. DE 93889386

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEWAS 191 AN and is the answer not in the manual?

Questions and answers

Summary of Contents for GHM Greisinger GEWAS 191 AN

  • Page 1 S01.0.0X.6C-19 Installation and Operating Manual Alarm- and protection device Leak-water detector GEWAS 191 AN / N  Please read these instructions carefully before use!  Please consider the safety instructions!  WEEE-Reg.-Nr. DE 93889386 Please keep for future reference! GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str.
  • Page 2 If a water film is detected at the sensor, the valve will be closed and the unit warns with an intense signal tone. The GEWAS 191 AN also switches off the device (e.g. washing machine, dish washer) connected to the control de- vice.
  • Page 3 S01.0.0X.6C-19 Installation and Operating Manual GEWAS 191 AN / N page 3 of 6 Safety 4.1 Safety signs and symbols Warnings are labelled in this document with the followings signs: Caution! This symbol warns of imminent danger, death, serious injuries and significant damage to property at non-observance.
  • Page 4 If the water film at the water sensor exceeds 0.5 mm the control device automatically triggers an audible alarm and switches off the solenoid. The GEWAS 191 AN also switches off the device connected to the control device. To remove the alarm disconnect control device for a short time.
  • Page 5 S01.0.0X.6C-19 Installation and Operating Manual GEWAS 191 AN / N page 5 of 6 What to do in case of alarm  The control device can only be switched off by disconnecting it.  Seek and eliminate error causes. ...
  • Page 6 Sensor input: Connection for water sensor with max. 10 m cable length Control output: by socket outlet in device housing (only for GEWAS 191 AN) (at GEWAS 191N the outlet is direct connected to the plug) Switching voltage: equivalent to supply voltage Switching current: max.
