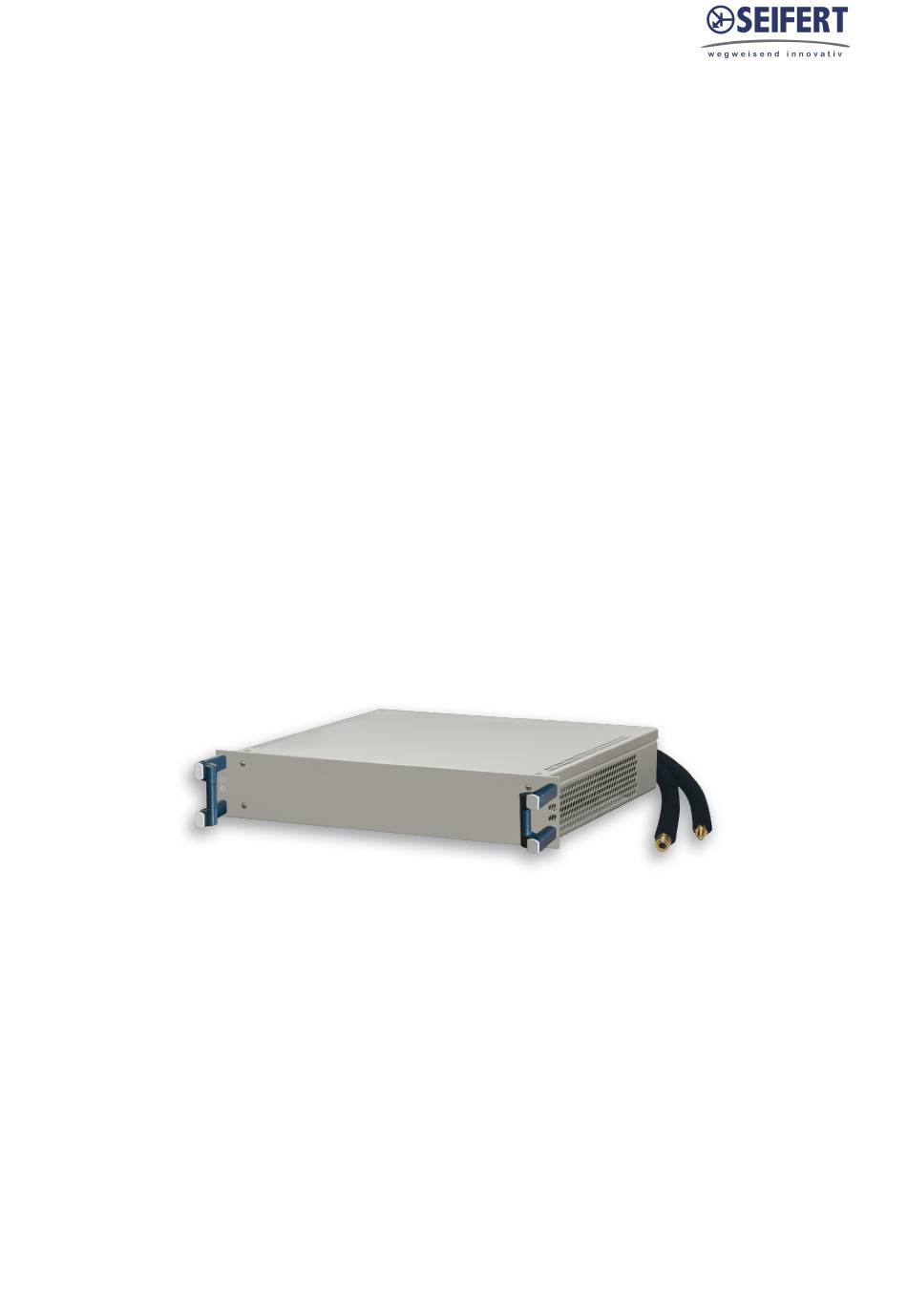

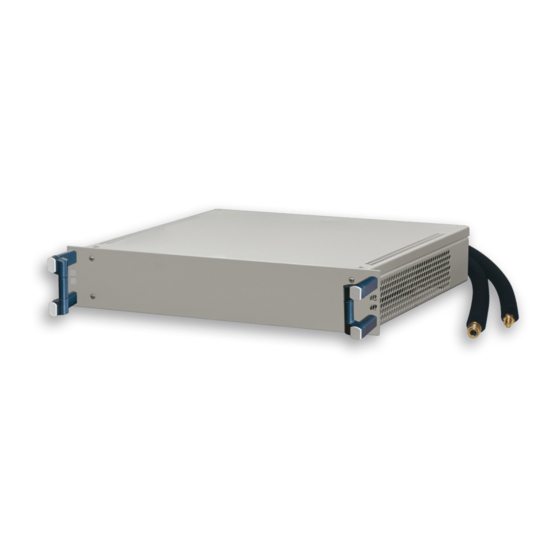

Table of Content 2192100
..................................................................................................................................
.........................................................................................................................................
.......................................................................................................................................
Version No. 1-2 - 07.04.2021
........................................................................................................................
......................................................................................................................
.....................................................................................................................
..............................................................................................................................
.......................................................................................................................
...................................................................................................................
........................................................................................................................
.............................................................................................................
.....................................................................................................................
.........................................................................................................
................................................................................................................
..........................................................................
Doc. No. 992192100
2
2
3
4
5
6
7
8
9
10
11
11
11
12
13
1 / 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RK-2192 and is the answer not in the manual?

Questions and answers

Related Manuals for Seifert RK-2192

Summary of Contents for Seifert RK-2192

  • Page 1: Table Of Contents

    Table of Content 2192100 1. User manual ..........................2. Legal Regulations ........................3. Safety Instructions ........................4. Settings ............................5. Functional Principle ........................6. Technical Data ..........................7. Mounting ............................8. Mounting Principle ........................9. Electrical Connection ........................10. Wiring Diagram ........................

  • Page 2: User Manual

    1. User manual This instruction manual contains information and instructions to enable the user to work safely, correctly and economically on the unit. Understanding and adhering to the manual can help one: Avoid any dangers. Reduce repair costs and stoppages. Extend and improve the reliability and working life of the unit.

  • Page 3: Safety Instructions

    Disregarding the instruction manual Operating error Inappropriate work on or with the unit The use of non-specified spare parts and accessories Unauthorised modifications or changes to the unit by the user or his personnel The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main contractual agreement.

  • Page 4: Settings

    4. Settings Air - water heat exchangers are intended as complementary accessories to large industrial equipment which include a motor-operated fan or blower together with a cooling heat exchanger. These may also include an electric heater. The fan or blower is intended to recirculate air and allow heat exchange. The heat exchanger is designed for chilled water or anti-freeze/corrosion inhibitor mixed water from a separate source.

  • Page 5: Functional Principle

    5. Functional Principle The air inside the control cabinet is moved over a laminar heat exchanger through which a coolant medium runs, making use of the counter-flow principle. The fan blows the warm air along the aluminium fins of the heat exchanger;...

  • Page 6: Technical Data

    6. Technical Data Order Number 2192100 Cooling Capacity L35W10 (200 l/h) 1 kW Cooling Capacity L35W10 (500 l/h) 1.2 kW Refrigerant / GWP Water, light oils or similar Operating Temperature Range +1°C - +72°C Air Flow Volume (System / Unimpeded) 180 / 625 m³/h Mounting 19"...

  • Page 7: Mounting

    7. Mounting The power supply rating on unit rating plate must comply with mains rating. Always disconnect the power supply before opening the unit. The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any condition.

  • Page 8: Mounting Principle

    8. Mounting Principle Bolt Washer Version No. 1-2 - 07.04.2021 Doc. No. 992192100 8 / 13...

  • Page 9: Electrical Connection

    9. Electrical Connection High electric voltage present. Installation, maintenance, cleaning and any other work must be carried out by qualified personnel only. The personnel must ensure that for the duration of this work the unit and the cabinet are disconnected from the electrical supply and protected against unauthorised/accidental reconnection.

  • Page 10: Wiring Diagram

    10. Wiring Diagram Radial fan Thermal motor protector Start capacitor 4 pin connector 7 pin connector Thermostat (NO) A2 & A3 Thermostat (NC) Magnetic valve Version No. 1-2 - 07.04.2021 Doc. No. 992192100 10 / 13...

  • Page 11: Taking Into Operation

    11. Taking into Operation Attention! The unit can be damaged by lack of lubricant. To ensure that the compressor is adequately lubricated the oil, which has been displaced during transport, must be allowed to flow back into it. The unit must therefore be allowed to stand for at least 30 min.

  • Page 12: Transport & Storage

    14. Transport & Storage Malfunction due to transport damage On delivery the carton box containing the unit must be examined for signs of transport damage. Any transport damage to the carton box could indicate that the unit itself has been damaged in transit which in the worst case could mean that the unit will not function.

  • Page 13: Parts Supplied / Spare Parts / Accessories

    15. Parts supplied / Spare parts / Accessories 1 x Heat exchanger RK-2192 1 x Instruction manual 1 x EC declaration 1 x Brass connection for easy out fastening nipple 1 x Brass connection for easy out fastening coupling 1 x Condensation pipe...
