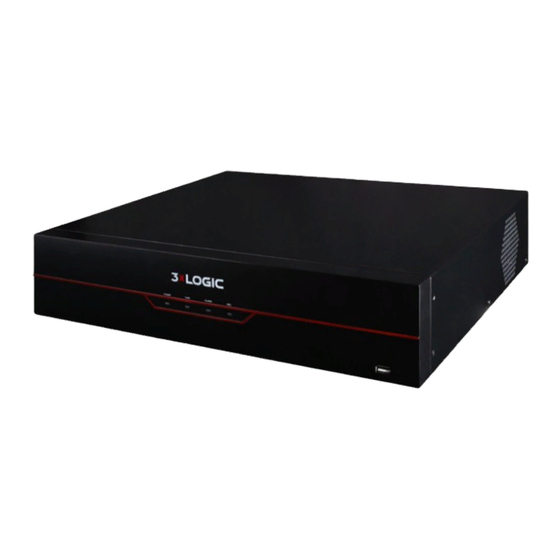

3xLogic VIGIL V250 Series Quick Start Manual

VIDEO MANAGEMENT |

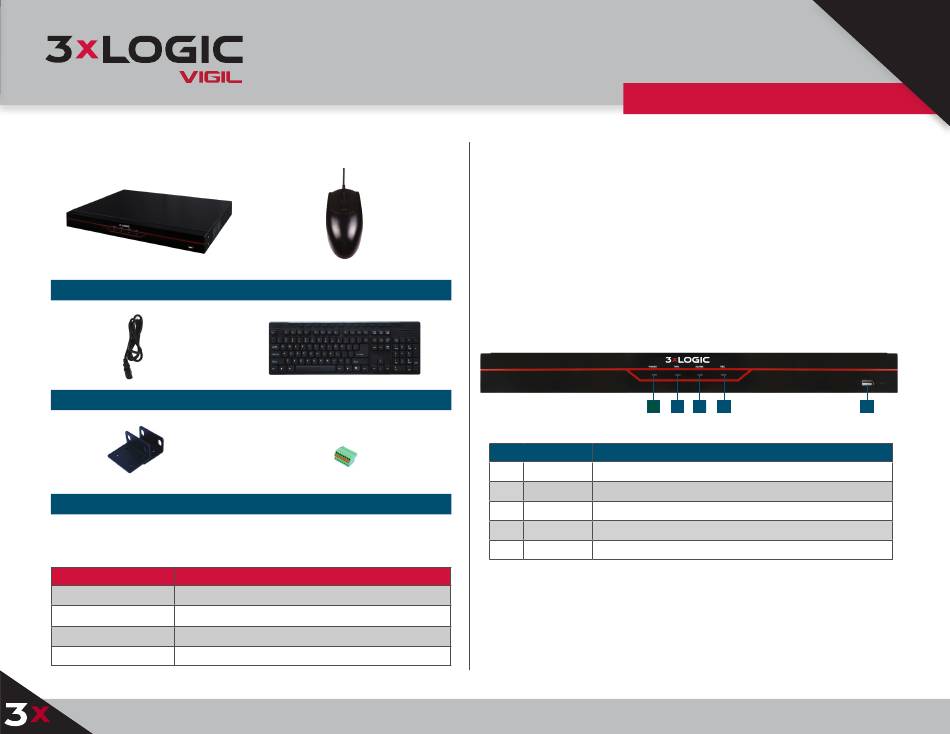

Package Contents
NVR
POWER CABLE
RACK MOUNT EARS
Operating Information
SPEC
Voltage 100V-240V, 6A, 50HZ-60HZ
Operating Environment Indoor Equipment Only
Operating Temperature 32 -113° F / 0 - 45° C
Humidity 20~90% RH
V250 NVR Rev IV
Quick Start Guide
MOUSE
KEYBOARD
TERMINAL BLOCK (FOR ALARMS)
VALUE
Simple. Scalable. Secure.
GETTING STARTED | V250 Rev IV NVR
Before You Begin
1. Connect all cameras to PoE Camera Switch with Cat5, Cat5e, or Cat6
networking cable. Depending on your V250 model, 8 or 16 PoE ports will be available.
2. Connect the Corporate LAN Port to your Site LAN.
3. Connect a monitor to either HDMI, DVI and / or VGA.
4. Connect your mouse and keyboard (included) to the rear PS/2 ports.
5. Connect power.
a. The V250 will automatically power on and boot into a Wizard which will
guide you through the configuration of your video recorder.
1
PART NAME
1 POWER Shows the Power On/Off Status
2 Tx/Rx Blinks to indicate network usage
3 ALARM Blinks to indicate the alarm I/O has been triggered
4 REC Blinks to inidcate data is being recorded to the HDD
5 USB USB 2.0 port
2 3 4
FUNCTION
5
