Summary of Contents for Delta Regis ESB4-SXI Series

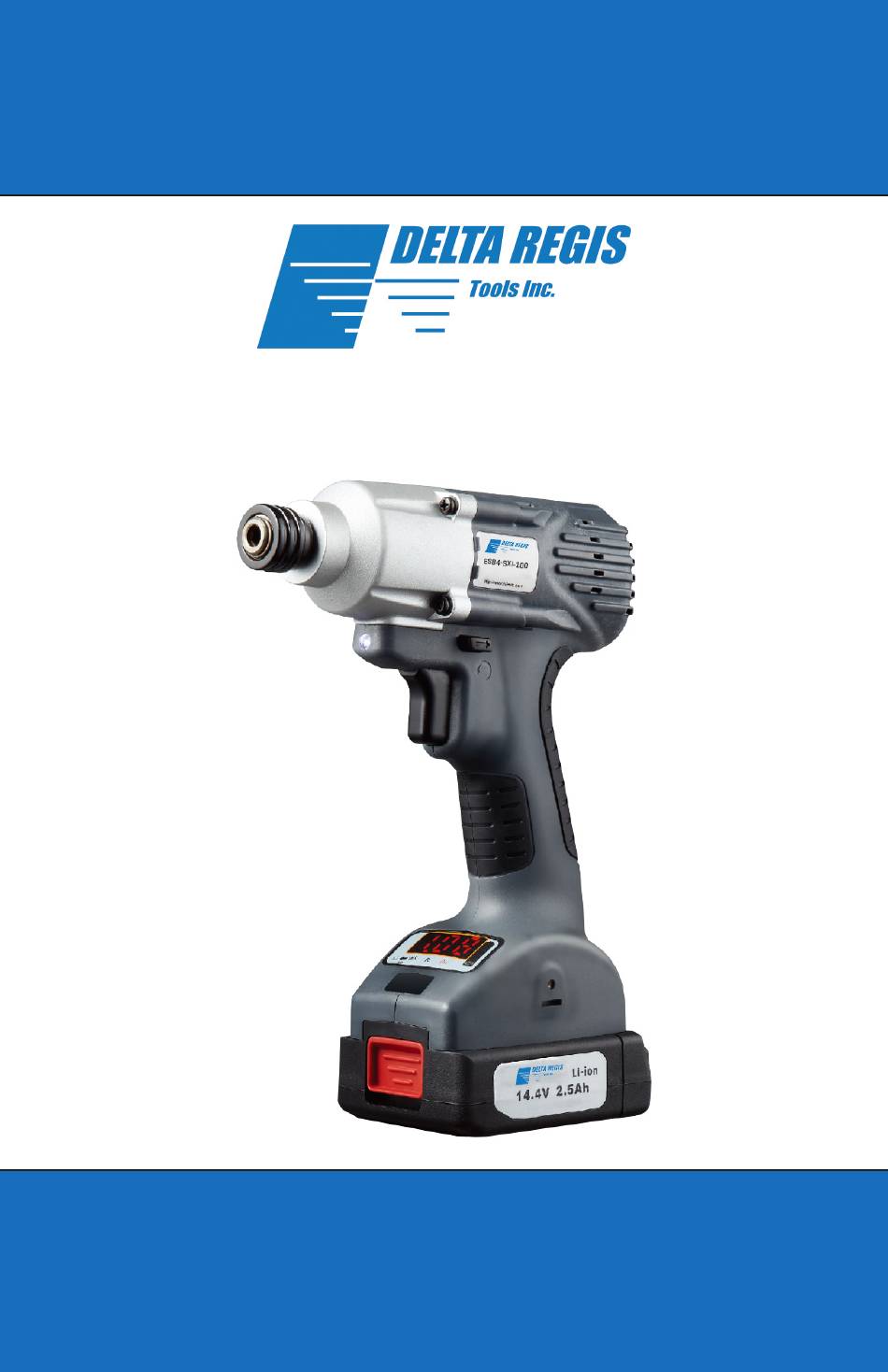

- Page 1 ESB4-SXI Series Automatic Shut-off Precision Impact Driver USER MANUAL Delta Regis Tools Inc. 7370 Commercial Circle Fort Pierce, FL 34951 sales@deltaregis.com 1-888-500-2755 www.deltaregis.com Delta Regis_ESB4-SXI_M_R0.2...
-
Page 3: Table Of Contents
Table of Contents Symbology Description.................. 3 Warning........................ 4 Safety Functions....................5 Operating Instructions..................5 Operating Function Summary..............7 Function Description:..................10 1. Main panel buttons and screen display instructions:..10 2. DR-IRC1 Remote control overview:.......... 11 3. Operation function setting description:......... 11 3-1. -
Page 4: Warning
Warning Before operating device, please make sure that all main parts/ accessories are included/undamaged and please carefully read full user manual. Please adhere to the following safety precautions/operating instructions and basic safety measures to avoid fire, electric shock and personal injury ect. 1. -
Page 5: Safety Functions
Safety Functions Device Safety Functions - Over-current protection - Temperature protection - Low speed & stall protection - Low battery protection - Forward and reverse three stage control protection - Device sleep function (if tool is unused for 3 min) Operating Instructions 1) Before using this device please fully charge the battery and attach it securely to ensure safety. - Page 6 2) For battery installation and removal please refer to diagram below. 3) The device will provide audible (beep) and visual (lights) feedback if battery ID identifcation is failed once battery is attached. Please see table below. DEVICE STATE ACTION FEEDBACK INCORRECT CORRECT Tool in active Press the...
-
Page 7: Operating Function Summary
Operating Function Summary Description Trigger Forward/Reverse Switch LED Work-light Bit/Socket Holder Aluminum Alloy Cover Belt Hook Mount Signal Display Light Power Indicator Light Display Panel Wrist Strap Mount 7370 Commercial Circle www.deltaregis.com Fort Pierce, FL 34951 sales@deltaregis.com ( 772.465.4302... - Page 8 Operating Function Summary This device is an Impact Screwdriver. When the screw is tightened you will hear/feel a hammering sensation. This is completely normal and will continue to apply the impact until the desired fastening is completed. 1. Trigger: This device is capable of variable speed based on how far the trigger is pressed.
- Page 9 Operating Function Summary Chemicals such as acetone, benzene, alcohol, thinner, ketones, trichloroethylene, etc. must not come into contact with the hous- ing to avoid chemical damage. Please operate the Charging Screwdriver carefully in accordance with the operating instructions. Do not drop or subject the device to unnecessary impact.
-
Page 10: Function Description
1. Main panel buttons and screen display instructions - Quickly browse the setting of the running program. - Press and hold the button to enter the remote control setup mode. Pc Button - Quickly switch the running program. Remember: After switching programs press the “Res” button to return to the screwdriver work screen. -
Page 11: Dr-Irc1 Remote Control Overview
2. DR-IRC1 Remote control overview 3. Operation function settings description To enter service mode on the device press and hold button for 3 seconds. Once in service mode display screen on the device will read “SEr” Choose Program [P01-P05] 1) Scroll through program with buttons. - Page 12 3) Multi-program (Sequence) setup: Once program details have been set press the button and scroll through programs using buttons. Once desired program is on the screen press the button again to enter into sequence. Once entered into sequence a series of dots will appear on the screen [for Program example P.0.1].
- Page 13 Save Function: 1) After parameters are set, press the save button to save settings and exit the setup function. Tool display Save will return to the main screen. 2) After parameters are set, Device will not run for 30 seconds and will save settings automatically. Device will automatically return to the main screen.
-
Page 14: Secondary Function Setting Description
3-1. Secondary Function Settings Description To enter service mode on the device press and hold button for 3 seconds. Once in service mode display screen on the device will read “SEr” Once in service mode press the button on the device to enter the secondary functions menu. -
Page 15: Screwdriver, Lights And Sound Status Description
4. Device Visual(lights) & Audible(beep) feedback description Beep Function Status Lights (Sound on) Fastening is Green light ON 1 Short beep completed properly (Top) Fastening is Amber light OK ALL completed for entire 1 Long beep workpiece properly (Top) Continuous Fastening operation Red Light ON short beep... -
Page 16: Additional Information Menu
Additional Information Menu To enter Additional Information Menu on the device press and hold button for 3 seconds. Once in Additional Information Menu display screen on the device will read “rES” Once in the Additional Information Menu press the Revision/ button to see Revision/Firmware Version Firmware Version (ie. -
Page 17: Main Technical Parameters
Main Technical Parameters Model ESB4-SXI-100 ESB4-SXI-70 ESB4-SXI-50 Input Voltage 14.4V 10.8V Speed (RPM) 0~2000 0~2600 0~1900 Impacts (BPM) 0~2600 0~3400 0~2860 20~100 Nm 20~70 Nm 5~50 Nm Torque 14.7~73.7 ftlb 14.7~51.6 ftlb 3.7~36.9 ftlb Recommended KTM-IWT400 KTM-IWT400 KTM-IWT50 Torque Tester Testing Fastener 25~100 Nm... -
Page 18: Curve Chart
Curve Chart Model ESB4-SXI-100 ESB4-SXI-70 ESB4-SXI-50 Input Voltage 14.4V 10.8V Speed (RPM) 0~2000 0~2600 0~1900 Impacts (BPM) 0~2600 0~3400 0~2500 20~100 Nm 20~70 Nm 5~50 Nm Torque 14.7~73.7 ftlb 14.7~51.6 ftlb 3.7~36.9 ftlb M10 M10 M12 Approximate Torque Output based on Fastener Size (using force ftlb... - Page 20 ESB4-SXI Series 7370 Commercial Circle www.deltaregis.com Fort Pierce, FL 34951 sales@deltaregis.com ( 772.465.4302...
