Summary of Contents for Letscom Q3H

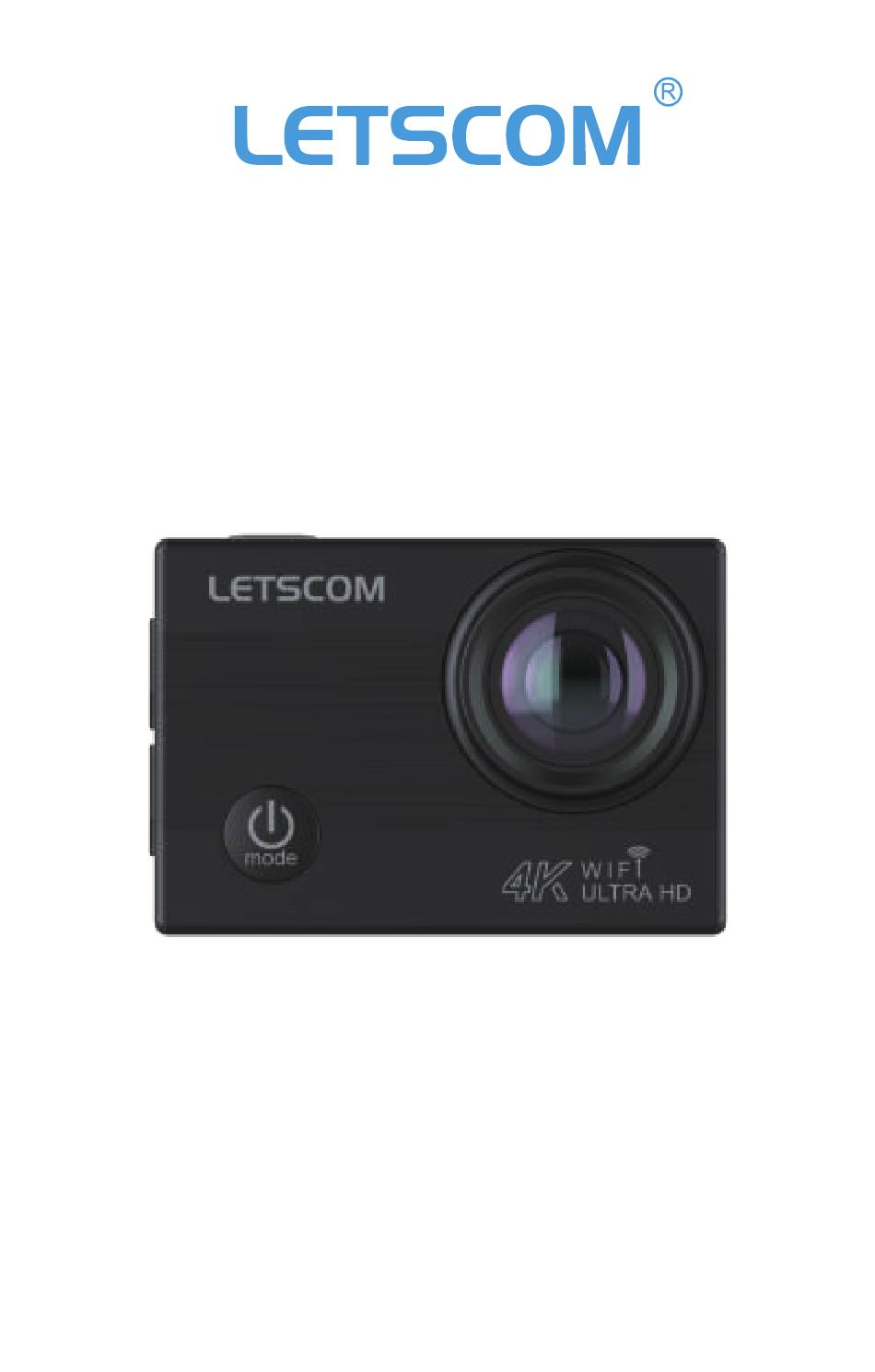

- Page 1 4K Action Camera User Manual Thank you for purchasing our products. This manual addresses the safety guidelines, warranty and operating instructions. Please review this manual thoroughly before operating your device.
-
Page 2: Table Of Contents
Features.............. 5 LED Indicator Guide........... 5 Install & Take Out the Battery......6 Install & Take Out the Micro SD Card....6 Charge the Battery..........7 Use Your Q3H............. 7 Customize Your Q3H.......... 9 Specifications........... 13 FAQs..............1 4 Warnings/Cautions........... 15... -
Page 3: Package Contents
Package Contents Waterproof Handlebar Base Base Case Mount Mount 1 Mount 2 Fixed Switch Switch Switch Base Connection 1 Connection 2 Connection 3 Helmet Adapter Clip1 Clip2 Base Ribbon& Bandages Batteries Stickers Wirerope Back Wiper User Manual Cover Cable - 1 -... - Page 4 1 x Camera 1 x Switch Connection 2 1 x Waterproof Case 1 x Switch Connection 3 2 x Batteries 1 x Adapter 1 x Handlebar Mount 1 x User Manual 1 x Base Mount 1 1 x Ribbon & Wire rope 1 x Base Mount 2 4 x Bandages 2 x Helmet Bases...
-
Page 5: At A Glance
At a Glance Screen UP Button Indicator DOWN Button Speaker Blue Indicator Battery Compartment OK Button WIFI Indicator Micro USB Port Micro SD Switch/Mode Card Slot Button HDOUT Port Lens - 3 -... -
Page 6: Application Diagram Of Assemble
Application Diagram of Assemble - 4 -... -
Page 7: Features
Features √170° wide-angle lens √2.0" display screen √Built-in WIFI & HDOUT √100 feet waterproof casing LED Indicator Guide System State Indicator Activity Power on The Blue LED indicator keeps on. The Blue LED indicator flashes twice and Power off goes out. The Blue LED indicator flashes once every Photo press on the OK button. -
Page 8: Install & Take Out The Battery
Install & Take Out the Battery Install the battery: 1) Stir downward the battery compartment cover and open it. 2) Install the battery into the camera correctly (Please mind the plus-minus hole). Take out the battery: Pull the label on the battery to take it out. Install &... -
Page 9: Charge The Battery
When the camera is being charged, the Red LED indicator keeps flashing. When it is fully charged, the Red LED indicator keeps on. Use Your Q3H NOTE: Please remove the plastic protective films from the camera lens and the screen before use. - Page 10 “Q3H” from the WIFI list and type in the password “1234567890” to connect. 3) Open the “XDV” app on your phone/tablet. Click on “Q3H” from the WIFI list, and the camera is connected to the “XDV” app on your phone/tablet. Then you can view the shooting screen of the camera on your phone/ tablet and shoot videos/photos and playback/download/delete/share files using your phone/tablet.
-
Page 11: Customize Your Q3H
2) Open the app which has been connected with the camera, if the new version is available, it will prompt to upgrade automatically. Using your Q3H with an HDTV Use a micro HD cable (not included in the package) to connect your camera to an HDTV or a larger monitor. - Page 12 Settings Parameter Description (Bold =default) Photo Select whether to Mode enter photo, video or Video slow motion mode. Slow Motion Photo Resolution Select the desired resolution for photos. (affects still photos only) Close After setting the timing mode, you can see the Timed photo countdown prompt on the lower left corner...
- Page 13 Close 0.5S Time-lapse can turn a long event into short Time-lapse videos. Perfect for sunsets, street scenes, and more. Close If set the loop recording, 2 minutes you can continuously Loop Recording 3 minutes record the video of the duration you want. 5 minutes Slow motion is perfect 1080P 60FPS...
- Page 14 If set on, this camera will automatically start Driving Mode recording video in the boot state. Select light source Auto Light Source frequency according 50Hz Frequency to the surrounding 60Hz environment. If set on, the LED indicators will LED Indicator Light flash according to your operations.
-
Page 15: Specifications
If set Yes, all files of the Micro SD card will be deleted. (Please copy the files in the Micro SD card to avoid losing files due to Format formatting. If the SD card file system does not conform to the camera, you can also do the formatting operation.) -
Page 16: Faqs
59*41*28mm Size 44g (without battery), 58g (with battery) Weight -10℃~ +55℃ Working Temperature -20℃~ +65℃ Storing Temperature NOTE: Specifications could be subject to modification due to upgrading or updating, please regard the actual product as the standard form. FAQs Battery life is shorter than expected. The battery life will vary with operating temperature, resolution of photo/video and the recording time (the longer the recording time, the faster the power consumption.), we recommend you set your... -
Page 17: Warnings/Cautions
Camera stops taking images or won't take images. • Make sure that the camera is not in low battery. The camera will stop taking images/videos when it is in low battery (a low battery notification will be displayed). • Make sure that the Micro SD card is over class 10 with high speed, and its capacity ranges from 8G to 32G. -
Page 18: Warranty
5. Please keep the Micro SD card away from places where the magnetic is strong in case that the data on the Micro SD card lose. 6. During the process of charging up the battery, if the camera overheats, smokes or gives off a peculiar smell, please unplug the power immediately for fire prevention. - Page 19 FCC ID：2AR5E-Q3H NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
