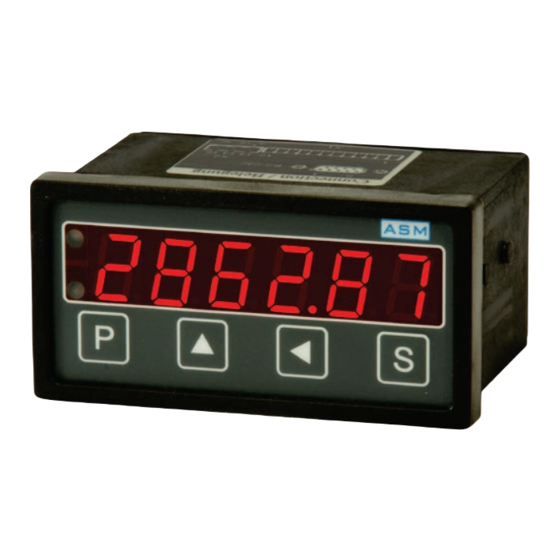

Digital process meter for incremental position and angle sensors

Advertisement

Quick Links

®
prodis
INC
Digital Process Meter for incremental position
and angle sensors
Installation and operation manual
EN
Please read carefully before installation and operation!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the prodis INC and is the answer not in the manual?

Questions and answers

Summary of Contents for ASM prodis INC

  • Page 1 ® prodis Digital Process Meter for incremental position and angle sensors Installation and operation manual Please read carefully before installation and operation!
  • Page 2 © ASM Automation Sensorik Messtechnik GmbH, 2019 All rights reserved. Am Bleichbach 18 - 24 85452 Moosinning Germany...
  • Page 3: Table Of Contents

    3 Installation and initial operation ................... 6 3.1 Mechanical installation ........................6 3.2 Electrical connection ........................7 3.3 Startup ............................15 4 Operation ........................16 5 Maintenance and disposal ..................21 5.1 Maintenance and service ......................21 5.2 Disposal ............................21 Version 2.1.0 www.asm-sensor.com...
  • Page 4: Safety Instructions

    Disregarding the following instructions may result in malfunction, damage to property and personal injury and releases the manufacturer from product liability. Safety regulations • National safety regulations must be observed! Pos : 9 /########### Seitenumbr uc h ######## ########################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 5: Intended Use

    ® The Process Meters of the prodis series are optimized for the sensor signals of the ASM sensors. Data can be transferred to the PC via the RS-232 interface. The optionally available relay outputs enable the monitoring of limit values and the control of machine processes. Use the unit as intended by operating within its specified technical data and ambient conditions.
  • Page 6: Installation And Initial Operation

    1. Push the device into the front panel cutout as far as it will go. 2. Hook the mounting clamp to the rear notch. 3. Push down the end of the mounting clamp until the front notch is locked. Version 2.1.0 www.asm-sensor.com...
  • Page 7: Electrical Connection

    A zero signal and a reference signal can be used for calibration of the measurement system. Optional comparator functions with 4 NPN open-collector outputs are available, additional 2 of them have relay output. Version 2.1.0 www.asm-sensor.com...
  • Page 8 Data format 1 start bit, 8 data bits, 1 stop bit, no parity Transmission rate 4800 / 9600 / ... / 115200 Baud Pos : 18 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 9 The fast counter processes 90° phase shifted A,B signals (quadrature signals) for direction and counting information. When using ASM sensors resolutions up to 5 µm resp. 2 angular minutes are possible. The sensor excitation voltage is supplied from the meter.
  • Page 10 Excitation +24 V Excitation 0 V (GND) PD-INC-230VAC Excitation 13, 15 Protective ground Signals D-Sub pin no. Rear view without comparator output Pos : 22 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 11 Signal T (reference signal) Signal T ̅ (reference signal) PD-ADC-24VDC Excitation +24 V Excitation 0 V (GND) PD-ADC-230VAC Excitation +24 V 13, 15 Protective ground Signals Connector X3 Pin no. Rear view with comparator output (option „REL2“) Version 2.1.0 www.asm-sensor.com...
  • Page 12 Pos : 24 /D atenblätter/Pr odis /Maßz eic hnungen/PD-IN C Des ktopversi on @ 0\mod_1392286314904_78.doc x @ 5321 @ 4 @ 1 Desktop version (option „DT”) Wiring of connector X1 see table “Wiring basic unit”. Pos : 25 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 13 Digital Process Meter PD-INC Pos : 26 /Bedienungs anl eitungen/Prodis/Sc haltausgänge_Diagramm @ 6\mod_1508147960045_78.doc x @ 48599 @ @ 1 Comparator outputs (diagram) Pos : 27 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 14 Data format 1 start bit, 8 data bits, 1 stop bit, no parity Baud rate: programmable Net transmission rate Max. 50/s approx. Pos : 29 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 15: Startup

    When the meter is switched on a short self-test sequence will start with all LED segments on and then the ® version of the process meter will be displayed. After that procedure prodis -INC is in the normal mode. Pos : 32 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 16: Operation

    Reset activated parameter Change the sign of signed parameters Store in non-volatile memory Proceed and return to normal mode New settings become effective immediately Pos : 36 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 17 * Disconnect device from excitation, wait 5 seconds, press both arrow keys together and hold. Connect excitation, the display shows “000000”, then release both arrow keys. Pos : 38 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 18 -INC is switched off. In the switched off condition, input pulses are not recognized. When the display is switched on again, the stored -measurement value will be displayed. Pos : 40 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 19 Multiplier’ = dX = 0.01 Divisor’ = dA = 0.1 Insert the values and extend / reduce: Multiplier = 1 Divisor = 10 Set decimal point between the first and the second digit from the right-hand side Version 2.1.0 www.asm-sensor.com...
  • Page 20 Insert the values and extend / reduce: Multiplier = 9 Divisor = 25 Set decimal point between the first and the second digit from the right-hand side. Pos : 43 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 2.1.0 www.asm-sensor.com...
  • Page 21: Maintenance And Disposal

    Pos : 46 /Bedienungs anl eitungen/Prodis/Ents orgung _PD @ 6\mod_1508829083628_78.doc x @ 49075 @ 2 @ 1 5.2 Disposal Disposal of the device according to applicable government regulations. === Ende der Liste für T extmar ke Inhalt === Version 2.1.0 www.asm-sensor.com...
  • Page 22 ® prodis Digital Process Meter PD-INC Version 2.1.0 www.asm-sensor.com...
  • Page 23 ® prodis Digital Process Meter PD-INC Version 2.1.0 www.asm-sensor.com...
  • Page 24 Tel. +44 845 1222-123 Tel. +49 8123 986-0 Fax +1 630 832-3204 Fax +44 845 1222-124 Fax +49 8123 986-500 info@asmsensors.com info@asm-sensor.com info@asm-sensor.com © ASM Automation Sensorik Messtechnik GmbH, 2019 All rights reserved. Subject to changes without notice. See protection note DIN34.
