Summary of Contents for Birth Alarm Premium

  • Page 3 Thank you for purchasing the Birth Alarm Premium. This is an extremely reliable reporting system for foal births. We advise you to read this manual carefully before use; proper assembly and operation are essential for correct operation.

  • Page 4: Table Of Contents

    Installing/replacing batteries ....................7 Housing of the Birth Alarm Premium ..................8 Installing the SIM card ......................9 The lights (Leds) of the Birth Alarm Premium ................10 The status lights ........................10 De LTE lamps .......................... 11 Installing a new SIM card ....................... 12 SIM card choice ........................

  • Page 5: Introduction

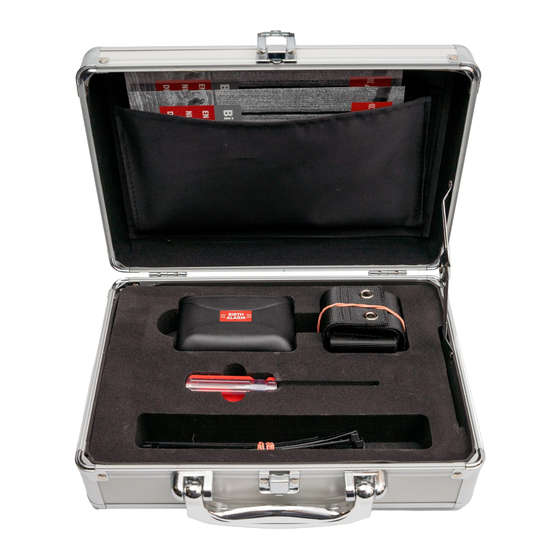

    2. Contents of the packaging 1. The Birth Alarm Premium birth detector. 2. The special holder. (This is where the Birth Alarm Premium is inserted.) The holder can be fitted beneath the mare’s halter or in the ring of the anti‐rolling girth.

  • Page 6: Preparing For Use

    3. Preparing for use The first time If you wish to use Birth Alarm Premium for the first time, you must perform these steps once: • Unscrew the Birth Alarm Premium and remove the red label which is placed against the pole of one of the batteries.

  • Page 7: Switching On/Off

    Switching on/off You can switch the Birth Alarm Premium on/off and operate it with the back of the special screwdriver supplied. On one of the long sides of the casing you will find 2 status lights. To switch the Birth Alarm Premium ON, proceed as follows: •...

  • Page 8: Components Of Birth Alarm Premium

    Always use new batteries at the beginning of the foaling season! If you will not be using Birth Alarm Premium for a longer period of time, such as after the foaling season, you should remove the batteries to prevent them from leaking and causing...

  • Page 9: Housing Of The Birth Alarm Premium

    Housing of the Birth Alarm Premium The housing of the Birth Alarm Premium can only be screwed down in one way. The light guides on the long side of the lid must be on top of the status lights when the lid is screwed...

  • Page 10: Installing The Sim Card

    Push the SIM card into the slot until you hear a "click". Then release the SIM card again. The SIM card is now in the slot and the Birth Alarm Premium is ready to be used. When you want to remove the SIM card from the slot, gently push against the SIM card until you hear another "click".

  • Page 11: The Lights (Leds) Of The Birth Alarm Premium

    Birth Alarm Premium (Led) lights To view the status of your Birth Alarm Premium, there are 2 status lights on your Birth Alarm Premium and 3 small lights on the inside that only relate to the internal LTE module. The status lights The status lights are on the long side of the casing.

  • Page 12: De Lte Lamps

    The LTE lamps The LTE lamps are only visible when opening the Birth Alarm Premium. Normally, you don't need to read these lamps, but it may come in handy if you are experiencing problems with the mobile connection and contact customer service for this.

  • Page 13: Installing A New Sim Card

    If you are using a prepaid SIM card, it is wise to keep an eye on your credit balance. With normal use, the call and SMS costs of your Birth Alarm Premium are minimal, but still check the prepaid SIM card credit regularly.

  • Page 14: Preparing The Sim Card

    SIM card. • Now remove the SIM card from your device and insert it into the Birth Alarm Premium (see 4.3). Never program the SIM card's own number on M1 or any of the SIM card's other...

  • Page 15: Programming Telephone Numbers

    Wait until the Birth Alarm Premium flashes blue once, green twice. • Now you call the Birth Alarm Premium with the device on which you want to be called on in 2nd place (this may also be a landline telephone connection).

  • Page 16: Programming By Sms

    • After a few seconds, the Birth Alarm Premium will flash blue once and green three times to indicate that you can now programme the 3 number (and later the 4 number) in the same way. Light pattern status-LED Status...

  • Page 17: Direct Programming

    Now send the SMS you have just set up to the Birth Alarm Premium mobile number. • After a short period of time you will receive a status SMS from the Birth Alarm Premium as confirmation. This contains the number you have programmed behind M1: •...

  • Page 18: Programming Other Settings

    65° may be considered "abnormal" and the Birth Alarm Premium will act on it. The Birth Alarm Premium is set at 65° by default. However, you can raise this 65° threshold yourself, so that the Birth Alarm Premium comes into action later, i.e. becomes less sensitive. To change the angle setting (e.g.

  • Page 19: Number Of Calls And Sms Moment

    You can set the number of times the Birth Alarm Premium calls you and also the moment it sends you an SMS. By default, the Birth Alarm Premium will make 2 rounds of calls in the event of an alarm. That means it calls the numbers M1, M2, M3 and M4, which have been programmed successively and then calls all the numbers again.

  • Page 20: Reset To Factory Default Settings

    Now send the SMS you have just created to the Birth Alarm Premium mobile number. • After a short period of time you will receive a status SMS from the Birth Alarm Premium as confirmation. It now reads "MS:1" on the penultimate line, indicating that the Birth Alarm Premium will send you an SMS status message after every call.

  • Page 21: The Sms Status Message

    The SMS status message Birth Alarm Premium will send you an SMS status message if you have changed a setting or telephone number on Birth Alarm Premium or if you receive a birth notification. This SMS status message provides you with information about the current settings and programmed telephone numbers on Birth Alarm Premium.

  • Page 22: Testing

    10. Testing Before you start using Birth Alarm Premium, it is important to test it to ensure that it works properly. You can easily do the testing yourself. • Preferably take the Birth Alarm Premium to where your mare is located.

  • Page 23: Fitting The Birth Alarm Onto The Mare

    Fitting the Birth Alarm onto the mare To use the Birth Alarm Premium in a girth or underneath the halter, it must be attached to the holder supplied as follows: • Carefully slide the Birth Alarm Premium into the holder as shown in the picture below.

  • Page 24: Fitting The Birth Alarm Beneath The Halter

    11.2 Fitting the Birth Alarm beneath the halter If you want to use the Birth Alarm Premium beneath a halter, mount it as shown below using 3 tie‐ wraps. Make sure that the halter is slightly tight so that the Birth Alarm Premium hangs straight under the mare's jaw.

  • Page 25: Summary And Modes Of Use

    Premium stops ringing automatically after a few seconds. You can then call the Birth Alarm Premium back, which is also is free of charge. With this you let the Birth Alarm Premium know that you have heard his call and the Birth Alarm Premium will stop calling you. The Birth Alarm Premium only becomes active again when the horse lies down again after some time.

  • Page 26: Technical Data

    The manufacturer and importer are not liable for any damage whatsoever arising from the use of the Birth Alarm Premium. Delivery and activities are carried out according to the general conditions of Gallagher Europe B.V.
