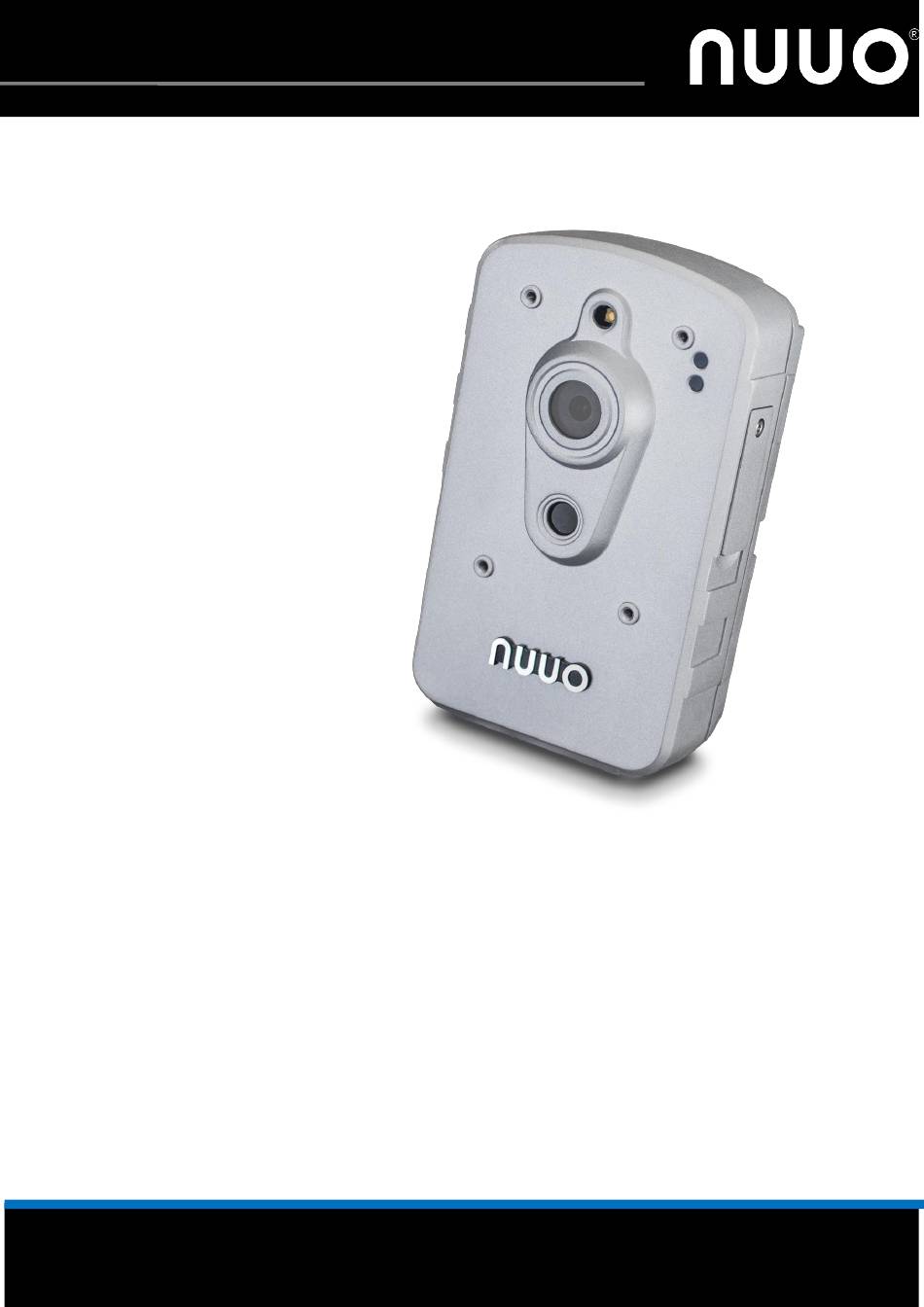

- Page 1 Thermal Camera User Manual TD-5702 User Manual www.nuuo.com © 2020 NUUO Inc. All rights reserved.
-
Page 2: Table Of Contents
5.2 System Setting 5.3 Add IP-camera 5.4 Alert Linkage Setting Thermal Image and Alert Setting 6.1 Thermal Image Setting 6.2 Spot/Box Setting 6.3 Thermal Alert and Related Setting 6.4 Temperature Image Parameter Configuration www.nuuo.com © 2020 NUUO Inc. All rights reserved. -
Page 3: Windows System Setting (Parameter Optimization)
Thermal Camera User Manual 1. Windows System Setting 1.1 Change User Account Control (UAC) Search “UAC” from the Windows www.nuuo.com © 2020 NUUO Inc. All rights reserved. - Page 4 Thermal Camera User Manual Adjust to “Never Notify” on User Account Control Setting, then click ”OK”. After that, it will pop-up the message to allow this app to make changes, please click “YES”. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 5 Thermal Camera User Manual 1.2 Setting Power Management On the Windows Key, click [Power Options] Set the sleep start time to [Never] www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 6 V C++, please ignore it and go back to the last screen, complete the steps directly. Please follow the steps to click “Next” until the end of the installation. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 7 Thermal Camera User Manual Right-click on the shortcut to generate IVS-II on the desktop and select the content. Click on Compatibility to run this program as the system administrator. Check and apply, then click OK. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 8 During the initial installation and reinstallation, the software will ask if you want to keep the previous settings. For the initial installation, the user can select “NO” to clear the sample configuration. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 9 Firstly, create a Thermal license after entering the software. If you skip this step, it won’t be able to start the thermal imaging lens. A) Right click on the monitoring screen and click the IVS-II License authorization code to register. B) Press [Add] www.nuuo.com © 2020 NUUO Inc. All rights reserved.
-
Page 10: Ivs-Ii The Operation Interface Of The Main Program System
Re-login / leave system / lock system Shrink Window Key Reduce the IVS-II main system interface to the toolbar Date/Time/Disk Space Display system time, date and the usage percentage of disk space www.nuuo.com © 2020 NUUO Inc. All rights reserved. - Page 11 Preview split mode 4/6/9/16/25/36/49/64 Split mode selection and switching Full screen/custom split Make the preview pane full screen, or execute the option to screen customize the split screen in the system setting function. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
-
Page 12: The System Setting
Delete the screen division method: select the name of the division method to be deleted, click [Delete] to complete (Note: When there are more than one set of self-selected screen division methods, the user must choose from the options on the main system operation interface) www.nuuo.com © 2020 NUUO Inc. All rights reserved. -
Page 13: System Setting
Windows setting: Click [Set system time] to modify the host system time Network Card: Select network card and Static IP address Save All Configurations to file: All configurations in IVS-II settings can be exported www.nuuo.com © 2020 NUUO Inc. All rights reserved. -
Page 14: Add Ip-Camera
Click [Start Scan], it will search cameras automatically if the camera is supported by ONVIF / SHANY protocol. Moreover, it can manually assign the IP address, please chose SHANY-V2 for the Manufacturer Model. The default IP of TD-5702 is 192.168.1.168. The Account and password are admin / 9999 www.nuuo.com... -
Page 15: Alert Linkage Setting
5.4 Alert Linkage Setting Click Alert Linkage Page： If you expect to receive an email when an alarm be triggered, please configure the SMTP Server on this page and test the email delivery correctly. www.nuuo.com © 2020 NUUO Inc. All rights reserved. - Page 16 Step 4: The related alarm screen and select the general image camera. The alarm will be triggered when the temperature exceeds the warning value. Step 5: Click [Save] to keep the parameters www.nuuo.com © 2020 NUUO Inc. All rights reserved.
-
Page 17: Thermal Image Setting
Thermal Camera User Manual 6. Thermal Image 6.1 Thermal Image Setting www.nuuo.com © 2020 NUUO Inc. All rights reserved. - Page 18 Thermal Camera User Manual Thermal image setting: Display color system: can be divided into three color systems Rainbow Grayscale Ironblack www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 19 Temperature range display: represents the different color scale (depending on the vary color system) Selecting dynamic adjustment will be changed due to the moving of the camera. As shown below: Select the fixed range and set up the minimum to maximum temperature value. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 20 Thermal Camera User Manual Select the detection area: Set by left mouse button, clear by right mouse button. means detection area www.nuuo.com © 2020 NUUO Inc. All rights reserved.
-
Page 21: Spot/Box Setting
Show On Image: Show Spot / Display Box, as shown below: Select Spot/Box: Set the Spot position and Box area in the drop-down menu, as shown in the figure below: To check and enable different Spot / Box separately. www.nuuo.com © 2020 NUUO Inc. All rights reserved. - Page 22 6.3 Thermal and Alarm View Setting 6.3.1 Thermal Event： Right click the mouse on the thermal imaging monitoring screen, then entering the thermal imaging setting page. Set the heat object alarm and enable the highlight heat event. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 23 Set the time range in seconds, then enter the temperature change value to trigger the alarm The detailed information of the above settings after adjustment can be viewed from the list below, and the selected number can be enabled, edited or deleted separately. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 24 Move the mouse cursor to the time point in the screen to display the real-time maximum / minimum / average temperature data of the previously set Spot / Box (switched at the red frame at the bottom right of the screen) www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 25 .csv file. 6.3.3 Alert Data Setting： The interval between reading the temperature and the number of days to retain the temperature data can be adjusted separately, as shown in the figure below. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 26 Thermal Camera. Finally, turn the rotary table model kiosk into PelcoD.xdp Click the red box on the right side to confirm adding PTZ settings successfully. After entering this panel, the white LED will automatically start when it trigged the temperature alarm. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 27 Thermal Camera User Manual To press icon, it will pop up the picture below, than enable the “Light” to turn on the white LED. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
- Page 28 Thermal Denoise: The default is 2, this item is related to the algorithm, it is not recommended to change this parameter. If the temperature rises abnormally for a period of time, you can try to adjust it. The parameter range is 1~10, please restarted the camera after modification. www.nuuo.com © 2020 NUUO Inc. All rights reserved.
