Draft Inducing
Flue Collar
(Model 90-99099)
Owner's Manual
Operation & Installation Guide
Ce manual est disponible en Francais a
www.hearthstonetech.com
CSA C22.2#3
UL 1482
CAN/ULC S641
SAVE THIS OWNER'S MANUAL FOR FUTURE REFERENCE
PLEASE READ THIS ENTIRE OWNER'S MANUAL BEFORE YOU INSTALL AND USE YOUR
DRAFT COLLAR
If this product is not properly installed, a house fire may result.
To reduce the risk of fire, follow the installation instructions.
Failure to follow these instructions can result in property damage, bodily injury, or even death.
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE
OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.
Draft Inducing Flue Collar
Model 90-99099
R: 09-15-16
Advertisement
Table of Contents
Related Manuals for HearthStone 90-99099
Summary of Contents for HearthStone 90-99099

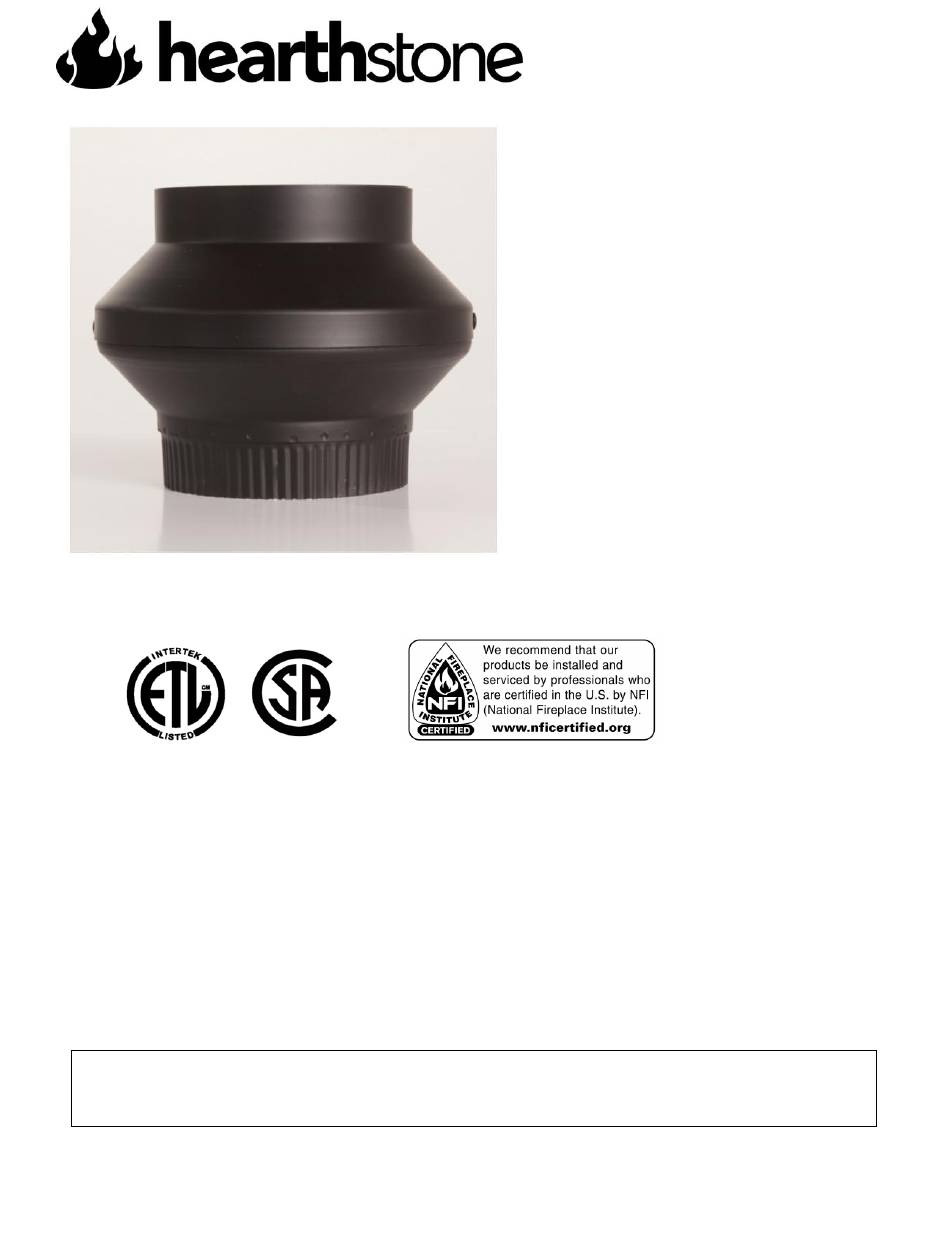

- Page 1 Draft Inducing Flue Collar (Model 90-99099) Owner’s Manual Operation & Installation Guide Ce manual est disponible en Francais a www.hearthstonetech.com CSA C22.2#3 UL 1482 CAN/ULC S641 SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE YOU INSTALL AND USE YOUR DRAFT COLLAR If this product is not properly installed, a house fire may result.
- Page 2 2. Remove approximately a six inch section of stove pipe from the existing flue system. 3. Replace the removed flue section with the 90-99099 Draft Inducing Flue Collar, install the collar body with the crimped edge downward (toward the stove). Ensure clearance is 16.5” minimum from the outermost part of the Draft Inducing Flue Collar to any combustible material when using single wall stove pipe, and 4.5 ”...
- Page 3 Operation From a Cold Stove: Plug the unit into a standard 120VAC wall outlet. The collar may take on average 15 minutes to create draw due to the wide variety of installations and environmental conditions. Start a fire in the stove as you normally would. From a Warm or Hot Stove: 1) After initial ignition from a cold stove, a temperature sensor installed in the collar will automatically turn off power to the collar itself when the temperature is high enough to maintain draw.
- Page 4 Easily replaceable components include: thermal disc. Complete units that test ok may be returned to the sender. Hearthstone QHHP, Inc. will not issue credit for materials that have been damaged or tampered with. This damage may occur during installation, your handling, shipment to you or upon return to us.
