PANORAMAdtv the Video Division of Wohler Technologies Inc.
HD2SD

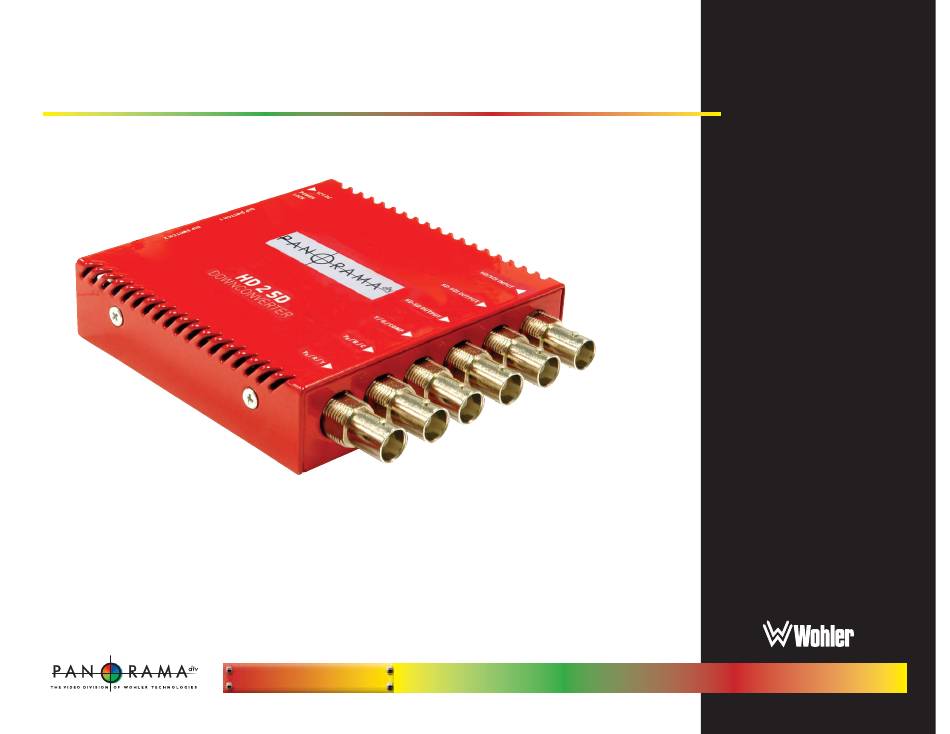

Compact HD-SDI to SD-SDI (to Analog) Down-Converter
with 8-Channel Audio Pass-Through and Video Test Pattern Generator
Features:
• Down-converts HD-SDI to two SD-SDI outputs
• Outputs RGB, component, or composite/S-video analog
video
• NTSC/PAL auto-detected
• Eight channel audio pass-through at 20-bit or 24-bit
• 16x over-sampling
• Full 10-bit data path and multi-point interpolation
• Generates industry standard video test patterns
Toll Free (US): 1-888-5-WOHLER Tel: (510) 870-0810 Fax: (510) 870-0811 31055 Huntwood Avenue, Hayward, California 94544, USA
• Generates embedded AES audio test tones
• Safe action, title graticule, and SD pedestal
• Anamorphic or letterbox output
• Vertical blanking enable/disable
• SDI signal lock and power LEDs
• Optional 12VDC power supply with locking connector
• Portable size: 4 x 3.4 x 1" (111 x 101 x 27mm)
Vi d e o M o n i t o r i n g
A u d i o M o n i t o r i n g

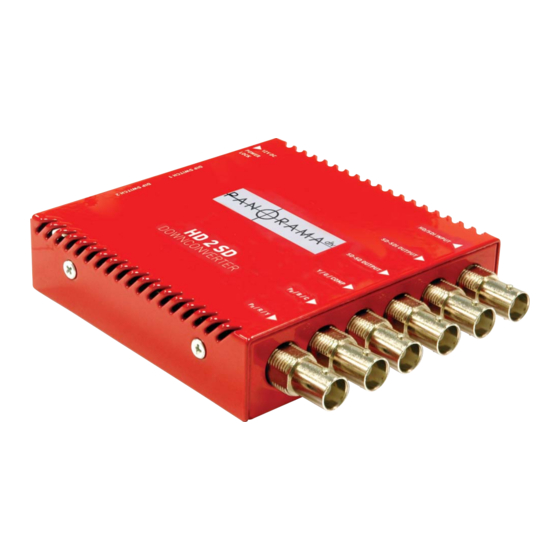

The PANORAMAdtv HD2SD down-converter
is a compact, convenient, and cost effective
solution for converting HD-SDI to SD-SDI
and analog video in the modern SD and HD
broadcast studio environment.
The HD2SD accepts HD-SDI (SMPTE
292M/274M/296M) signals for conversion to
SD-SDI (SMPTE 625i50 or 525i59.94) video.
The down-converted SD-SDI signal is also
converted to the selected analog output
type (Component, RGB, or Composite/S-
Video). HD to SD down-conversion is 10-bit
with over-sampling of 16x for SD-SDI signals.
HD-SDI input format is detected automati-
cally and the various video output options
are selectable by setting two external 10-
position DIP switches.
Eight channels of audio is passed as 20-bit
or 24-bit and the unit can also generate
its own embedded AES audio test tones.
A range of additional features is available,
including 4:3, 16:9, or 14:9 safe action grati-
cule, SD pedestal, vertical blanking, anamor-
phic or letterbox output, and generation of
a wide range of useful video test patterns.
Two LEDs on the units rear panel indicate
power and HD-SDI signal lock status. Size of
the unit is relatively small with dimensions
of 4" x 3.4" x 1". Power may be provided by
an optional external 12V power supply with
locking connector.
A l a r m S y s t e m s
L e v e l M e t e r i n g
