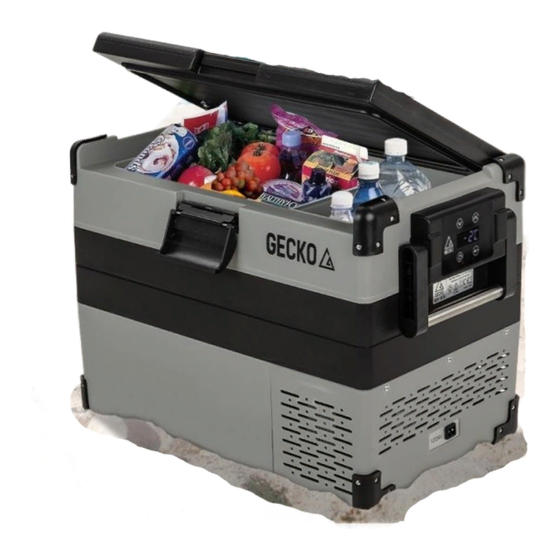

12V/24V Portable
Fridge/Freezer
Colours and appearances may vary
User Manual
[Revision 2.0 March 2020]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE
AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may
vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2020 Gecko
Advertisement
Table of Contents
Summary of Contents for Gecko GEK-30G
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2020 Gecko...
-
Page 2: Safety
• Use combustion engines OUTSIDE only, • If devices are provided for connecting dust and far away from windows, doors and extraction / collection facilities, ensure vents. these are connected and used properly. Dust collection can reduce dust-related hazards. E&OE © 2020 Gecko... - Page 3 • Place the refrigerator on a flat, stable surface or it to operate smoothly and efficiently. This product can still work normally if the maximum inclined angle is not more than 30°. E&OE © 2020 Gecko...
-
Page 4: Safety Symbols
Wear appropriate clothing Always wait for moving parts to fingers, limbs, blood etc. Take and protective devices. stop fully before handling the due care when handling and product, adjusting, maintenance using the product. etc. E&OE © 2020 Gecko... - Page 5 Carry hook to load – do NOT Laser may be in use – do NOT Wear appropriate eye protection throw or run. for welding. Direct exposure to look directly at laser or allow weld arcs may cause permanent others to. eye injury. E&OE © 2020 Gecko...
-
Page 6: Table Of Contents
Safety ................................. 2 Safety Symbols ..............................4 Operation ..............................7 Troubleshooting ............................9 Error Codes .............................. 10 Specifications ............................12 GEK-30G ................................12 GEK-40G ................................12 GEK-50G ................................13 GEK-65G ................................13 GEK-30K ................................14 GEK-40K ................................14 GEK-50K ................................15 GEK-65K ................................ -
Page 7: Operation
6. The refrigerator has two power settings: HH or ECO. Press the set button twice until HH or ECO is displayed. Press the up or down button to select between the two modes. HH is automatic mode. E&OE © 2020 Gecko... - Page 8 9. The refrigerator has three battery protection levels. to enter the battery protection level, push and hold the UP/DOWN keys for 10 seconds. Use the UP/DOWN buttons to select the level required: H1/H2/H3. See the graph below for the described values. E&OE © 2020 Gecko...
-
Page 9: Troubleshooting
This is a normal phenomenon. It is caused by the flow of the refrigerant in the pipeline. Abnormal noise. • Fridge/Freezer has not been put on a flat, stable surface. Food freezes. • Temperature setting is too low. For other problems not described above, please contact your local qualified technician. E&OE © 2020 Gecko... -
Page 10: Error Codes
When the set temperature is higher than - 12 C, the forced high speed is 3200 rpm. − Automatic operation mode when the setting temperature is below - 12°C. • When working mode is in “ECO” mode, the compressor speed is fixed to a low speed control: 2500rpm. E&OE © 2020 Gecko... - Page 11 H 2 ON 11.8 H3 ON 12.6 H1 OFF 10.3 H2 OFF 10.8 H3 OFF 11.3 12/24 Switching 12-24V Voltage H1 ON 22.7 H2 ON 23.7 H3 ON 25.7 H1 OFF 21.5 H2 OFF 22.3 H3 OFF 24.3 E&OE © 2020 Gecko...
-
Page 12: Specifications
Type Fridge/Freezer Volume Rated Power Energy Consumption 0.05kWh/hour Refrigerant R134a Voltage DC 12V/24V, AC 240V Battery Protection ≤ 42dB Noise Level Max. Operation Incline 30° Current 3.3A/1.6A Temperature Range -20ºC to +10ºC Power Plug Australian Standard E&OE © 2020 Gecko... -
Page 13: Gek-50G
Type Fridge/Freezer Volume Rated Power Energy Consumption 0.05kWh/hour Refrigerant R134a Voltage DC 12V/24V, AC 240V Battery Protection ≤ 42dB Noise Level Max. Operation Incline 30° Current 3.9A/1.9A Temperature Range -20ºC to +10ºC Power Plug Australian Standard E&OE © 2020 Gecko... -
Page 14: Gek-30K
Type Fridge/Freezer Volume Rated Power Energy Consumption 0.05kWh/hour Refrigerant R134a Voltage DC 12V/24V, AC 240V Battery Protection ≤ 42dB Noise Level Max. Operation Incline 30° Current 3.3A/1.6A Temperature Range -20ºC to +10ºC Power Plug Australian Standard E&OE © 2020 Gecko... -
Page 15: Gek-50K
Type Fridge/Freezer Volume Rated Power Energy Consumption 0.05kWh/hour Refrigerant R134a Voltage DC 12V/24V, AC 240V Battery Protection ≤ 42dB Noise Level Max. Operation Incline 30° Current 3.9A/1.9A Temperature Range -20ºC to +10ºC Power Plug Australian Standard E&OE © 2020 Gecko... - Page 16 ©2020 Gecko. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
