Summary of Contents for Forza ALU110

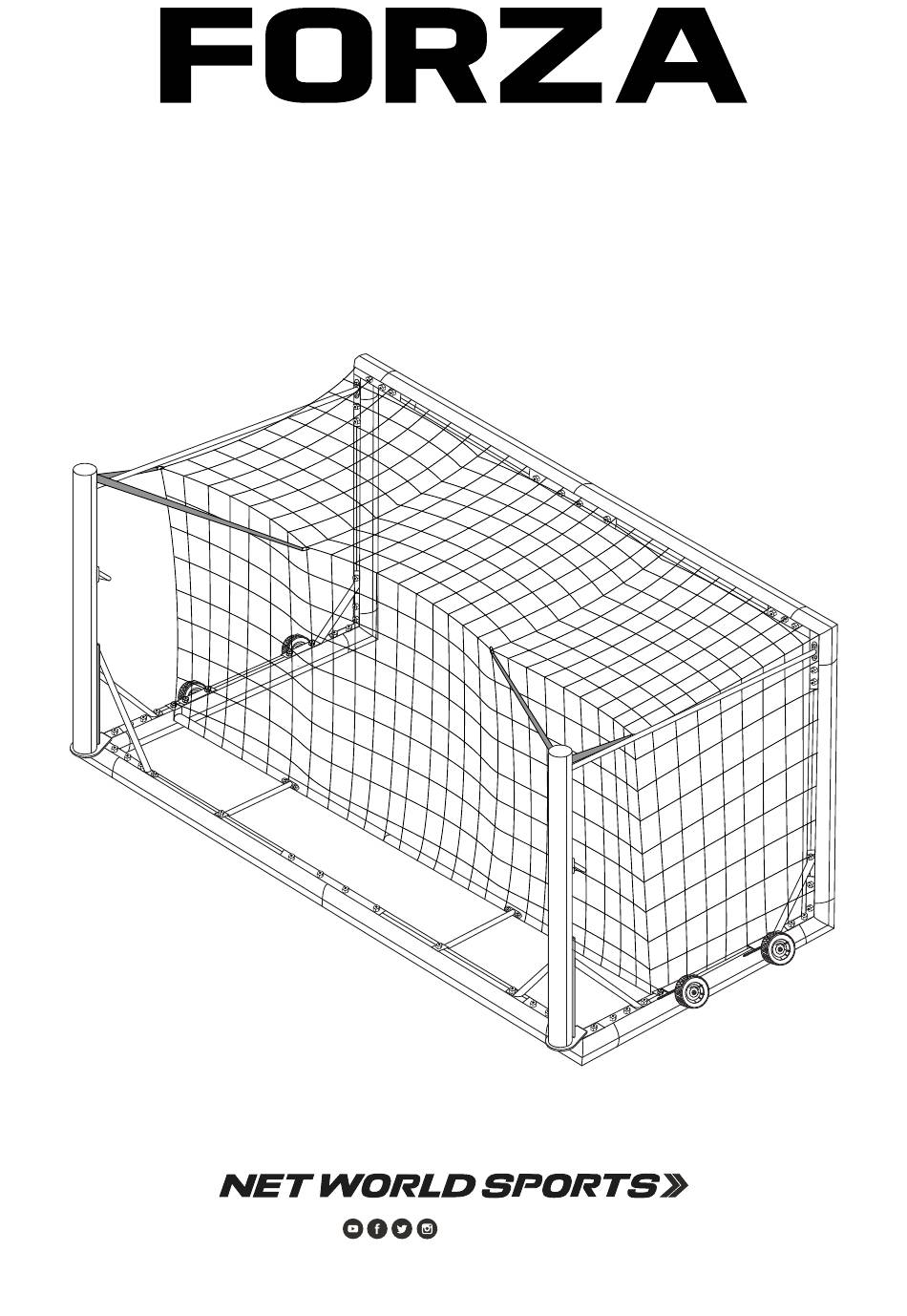

- Page 1 ALU110 16x7 FREEST ANDING BOX GOAL @NetWorldSports www.networldsports.co.uk / / +44 (0) 1691 683 807 / / cs@networldsports.co.uk www.networldsports.com / / 1-866-861-9095 / / cs@networldsports.com...
-
Page 2: Parts List
P ARTS LIST 38027 Straight Bracket (4x) 37901 Crossbar/Backbar (4x) 37934 Crossbar Connector Front & Back (2x) 37879 Sidebar/Upright (4x) 38044 Upright Support (2x) 39033 39005 Stanchion Brace (2x) Back Stanchion (2x) 39069 39089 39093 39021 Stanchion Support (2x) Upright Stanchion Support (2x) Net Support (1x) Net Support (1x) 38038... -
Page 3: Handy Extras
HANDY EXTRAS Wrench Ratchet with Sockets Rubber Mallet 17mm 17mm 13mm 13mm Allen Key Step Ladder ADD-ONS Weights Wheels 38111 Water T ank 642mm (9x) 38116 38122 Right Wheel (2x) Left Wheel (2x) 38105 38077 38055 38088 Water T ank 911mm (1x) M10 Lock Nut (8x) M10x25 Bolt (8x) M10 Washer (8x) - Page 4 STEP 1 - Crossbar/Backbar (Fig. 1) Layout the crossbar sections and backbar sections (37906) Fig.1 37906 and connector (37934). Slide 2x M10x20 bolts (38049) into each crossbar section and locate between the 2 pre-drilled holes. (fig.1). 37934 38049 On the backbar slide 3x M10 bolts (38049) into both backbar sections (37906) locating 2 bolts between the 2 pre-drilled holes and 1 in the 37906 centre of the section.
- Page 5 STEP 4 - Fixing Crossbar to Uprights (Fig. 4) Fig.4 Locate the corner bracket (38033) over the pre-positioned bolts. Place M10 washers (38088) over M10x20 bolts as per diagram (fig.4a). Secure in place using M10 nuts (38077). Repeat for other side. Fig.4a ATTENTION - ensure all joints are butted up to each other 38033...
- Page 6 STEP 7 - Connecting uprights to base (Fig. 7) Fig.7 Slide 2x M10x20 bolts (38049) into upright corner joint see diagram (Fig.7a) Slide 2x M10x20 bolts (38049) into sidebar see diagram (Fig.7a) Slide 2x M10x20 bolts (38049) into upright see diagram (Fig.7b) Fig.7a Locate corner joint into upright and sidebar.
- Page 7 Step 9 – Fitting and securing back stanchion to base (fig.9, fig.9a, fig.9b & fig.9c) Slide back stanchion (39013) onto stanchion socket (39017) see diagram (fig.9.) 39013 Slide 2x M10x25 bolts (38055) down back stanchion to locate in the slots of the stanchion support. Locate upright support (39021) on pre-positioned bolts and place Fig.9 M10 washers (38088) over bolts and secure with M10 nuts (38077)
- Page 8 Step 10 – Fitting and securing ratchet (fig.10 & fig.10a) Slide 2x M10x20 bolts (38049) into back stanchion. Locate ratchet (39125) over the 2 bolts. Place M10 washers (38088) over bolts and secure in place with M10 nuts (38077) approximately 120cm from the top of the stanchion. Repeat step 10 for the other side.
- Page 9 Fig.11b Fig.11c 39077 Step 12 – Fitting and securing stanchion D-ring (fig.12 & fig.12a) Slide 2x M10x20 bolts (38049) into the back stanchion. Locate the stanchion D-ring (39145) over the M10 bolts at the top of the stanchion see diagram (fig.12) 39149 Add the cap (39149) to the top of the back stanchion.
- Page 10 Step 13 - Assemble and fit net support (fig.13, fig.13a & 13b) Slide net support (39081) into net support (39085) ensuring both Secure using 1x M8 washer (38094) and 1x M8 Nut (38083) per bolt. ends are facing the same way. Locate the assembled net support over the pre-positioned M10 bolts Place 1x M8 washer (39081) over 1x M8x45 bolt and locate the bolt on the backbar and sidebars.
- Page 11 Fig.14 Step 14 – Net. (Fig.14, fig.14a, & fig.14b) Place the net over the frame, noting that the red tabs denote the top corners of the net as per (fig.14.) Attach the net using push and twist clips (38174) as per fig.14a. Use push and twist brackets (39137) for the top corners of the goal as per fig.14b.
- Page 12 Step 15 – T ensioning net. (Fig.15, fig.15a & fig.15b) Take ratchet strap (39129) and clip to the back corner of the net, Thread the end through the stanchion D-ring and the ratchet. Fig.15a Take ratchet strap (39133) and clip it to the net at the same height as the corner, in line with the centre of the crossbar straight bracket.
- Page 13 ADD-ONS Fig.16 WHEELS 38077 Ensure M10x25 Bolts (38055) have been slotted into place 38088 whilst constructing the goal. Place the Wheel Bracket over the prepositioned bolts. Fix in place with 2x M10 Washer (38088) and 2x M10 Nuts (38077). Ensure Wheels are fixed on the correct side of the goal. When the wheels are not in use the handles must be facng away from the pitch.
