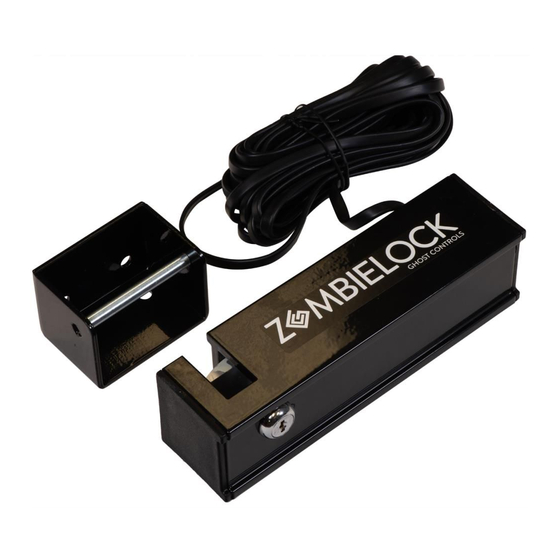

Ghost Controls ZOMBIELOCK AXZL Instructions

AXZL ZOMBIELOCK
INSTRUCTIONS

WHAT IS INCLUDED IN AXZL KIT:

RECEIVER
AND PIN
KEYS
LOCK

MOUNTING THE LOCK AND RECEIVER:

NOTE: If your gate is set up in the push-to-open mode, the lock will need to be installed on the outside of the gate.
STEP 1: MAKE SURE THE OPERATOR CONTROL BOX POWER SWITCH IS IN THE OFF POSITION
You must disconnect the operator only after the operator power switch is OFF and the gate is NOT moving.
NOTE: The gate operator is battery powered and unplugging the AC transformer does not turn the power to the operator off.
STEP 2: DISCONNECT FRONT END OF THE GATE OPERATOR ARM FROM GATE BRACKET
A . Remove the hairpin clip and clevis pin from the FRONT mount of the gate operator.
B. Swing the operator arm out of the way of the gate.
STEP 3: MAKE SURE GATE IS IN THE CLOSED POSITION
To ensure the gate remains in the closed position, you should wire tie or clamp the gate to the post for a single gate and for
a dual gate secure the second gate.
Lock should be mounted on the gate cross member or other solid part of the gate surface and the receiver should be
mounted on the adjacent post perfectly level with the lock. See illustrations next page.
AUTOMATIC GATE LOCK
®
NUTS AND
BOLTS
OPTIONAL:
TUBE GATE ACCESSORY KIT
(AXTB)
YOU WILL NOT NEED
THE WASHERS FOR
THIS APPLICATION
