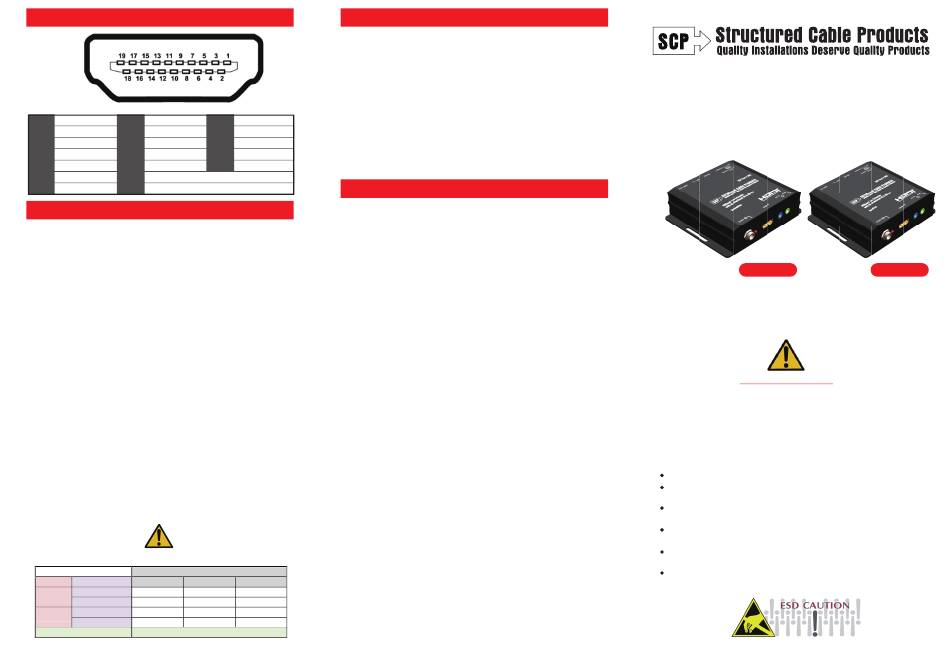

Structured Cable Products 962 Series User Manual

HDMI PIN DEFINITION
Type A (Receptacle) HDMI
Pin 1 Pin 8 TMDS Data0 Shield
TMDS Data2+
Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0–
Pin 3 TMDS Data2– Pin 10 TMDS Clock+
Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield
Pin 5 TMDS Data1 Shield Pin 12 TMDS Clock–
Pin 6 TMDS Data1– Pin 13 CEC
Pin 7 TMDS Data0+ Pin 14 Reserved(N.C. on device)
NOTICE
All HDMI over CAT5 transmission distances are measured using
1.
Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video
Signal Generator VG-859C & VG-870B.
Incorrect placement of IR Blaster and Receiver may result in the failure
2.
of the IR extenders. Please check carefully before plugging in the IR
extender to the respective IR sockets. Warranty will not cover the
damage.
The transmission length is largely affected by the type of Cat-5/5e/6
3.
cables, the type of HDMI sources, and the type of HDMI display. The
testing result shows solid UTP cables (usually in the form of 300m
[1,000ft] bulk cables) can transmit a lot longer signals than stranded
UTP cables (usually in the form of fixed length patch cords). Shielded
STP cables are better suited than unshielded UTP cables. A solid UTP
Cat-5e cable shows longer transmission range than stranded STP
Cat-6 cable. For long extension applications, solid UTP/STP cables
are the only viable choice.
EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is
4.
recommended for better performance.
To reduce the interference among the unshielded twisted pairs of
5.
wires in Cat-5/5e/6 cable, one can use shielded STP cables to improve
EMI problems, which is worsen in long transmission.
Because the quality of the CAT5/6 cables has the major effect on how
6.
long the transmission limit can achieve and how good is the received
picture quality, the actual transmission range is subject to one's
choice of Cat-5/5e/6 cables. For desired resolutions greater than
1080i or 1280x1024, a Cat-6 cable is recommended.
If your HDMI display has multiple HDMI inputs, it is found that the first
7.
HDMI input [HDMI input #1] generally can produce better transmission
performance among all HDMI inputs.
Performance Guide for HDMI over Category Cable Transmission
Performance rating Type of category cable
Wiring Shielding CAT5 CAT5e
Unshielded (UTP) ****
***
Solid
Shielded (STP) *** ***
Unshielded (UTP) * **
Stranded
Shielded (STP)
* *
Termination Please use EIA/TIA-568-B termination (T568B) at any time
HARDWARE INSTALLATION
Connect a HDMI or DVI source (such as a Blu-ray Disc player)
1.
to the transmitting unit 962-T.
Connect a HDMI or DVI display (such as a LCD TV) to the
2.
receiving unit 962-R.
Connect IR Blaster/Receiver to both TX and RX units.
3.
Connect a Cat-5/5e/6 cable between the transmitting and
4.
receiving units.
Make sure this Cat-5/5e/6 cable is tightly connected and not
5.
Pin 15 SCL
loose.
Pin 16 SDA
Plug in 5V DC power supply unit to the power jack of the
6.
Pin 17 DDC/CEC Ground
receiving unit 962-R and the transmitting unit 962-T.
Pin 18 +5V Power
Pin 19 Hot Plug Detect
WARRANTY
The SELLER warrants the 962
with HDBaseT-Lite, Bi-directional IR and RS-232
the material and workmanship for 1 year from the date of purchase
from the SELLER or an authorized dealer. Should this product fail to be
in good working order within 1 year warranty period, The SELLER, at its
option, repair or replace the unit, provided that the unit has not been
subjected to accident, disaster, abuse or any unauthorized
modifications including static discharge and power surge. This
warranty is offered by the SELLER for its BUYER with direct transaction
only. This warranty is void if the warranty seal on the metal housing is
broken.
Unit that fails under conditions other than those covered will be
repaired at the current price of parts and labor in effect at the time of
repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers
agree to insure the unit or assume the risk of loss or damage in transit.
Under no circumstances will a unit be accepted without a return
authorization number.
The warranty is in lieu of all other warranties expressed or
implied, including without limitations, any other implied warranty or
fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty.
Customers outside Taiwan are responsible for shipping charges to and
from the SELLER. Cables and power adapters are limited to a 30 day
warranty and must be free from any markings, scratches, and neatly
coiled.
The content of this manual has been carefully checked and is
believed to be accurate. However, The SELLER assumes no
responsibility for any inaccuracies that may be contained in this
manual. The SELLER will NOT be liable for direct, indirect, incidental,
CAT6
special, or consequential damages resulting from any defect or
*****
omission in this manual, even if advised of the possibility of such
****
damages. Also, the technical information contained herein regarding
**
the 962 features and specifications is subject to change without further
**
notice.
HDMI Extender over Single Cat.X
free from defects in
Bi-directional IR and RS-232
safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the 962
should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
HDMI Extender over Single Cat.X with
HDBaseT-Lite, Bi-directional IR and RS-232
User Manual
Transmitter
Safety and Notice
The 962 HDMI Extender over Single Cat.X with HDBaseT-Lite,
has been tested for conformance to
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where
explained in this manual.
Provide proper ventilation and air circulation and do not use
near water.
Keep objects that might damage the device and assure that
the placement of this unit is on a stable surface.
Use only the power adapter and power cords and connection
cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always
unplug the power to the device before cleaning.
Receiver
rev: 052013
