ROLLS BATTERY AGM PRODUCT LINE
ROLLS PART NO. ROLLS PART NO.
S6-275AGM
6 6 6
S6-370AGM
V V V
S6-460AGM
S12-95AGM
S12-128AGM
12 12 12 12 12 12
S12-160AGM
V V V V V V
S12-230AGM
S12-240AGM
S12-290AGM
S2-590AGM
S2-945AGM
2 2 2 2 2 2
S2-1180AGM
V V V V V V
S2-1895AGM
S2-2375AGM
S2-3560AGM
Brass AP terminal included on S6-275AGM, S12-95AGM, S12-128AGM & S12-160AGM models. Dimensions note battery size
including AP terminal for these models only. AP terminal height: 0.88" 2.22 cm

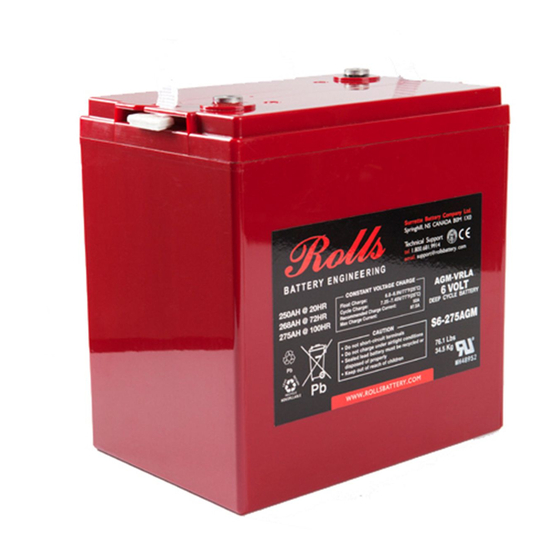

S6-275AGM
Rolls Technical Support - 1-800-681-9914 / 1-902-597-3767
AGM Battery Warranty:
2V Rolls AGM batteries have a 5 year pro-rated warranty with a 2 year free replacement period when installed in Renewable
Energy, Marine or RV applications. Rolls batteries for other applications (excluding Renewable Energy, Marine or RV) are pro-rated
for 3 years. The warranty period starts at the time of purchase. If the original receipt is lost, the warranty will be based on the
battery date code. The warranty covers failure do to defects in material or workmanship. It does not cover failure caused by abuse,
neglect or breakage. The warranty does not cover consequential damage or injury, discharged batteries, rental, freight, labor or
administrative costs. Replacement batteries will be provided at the time the warranty is requested and approved.
cannot issue monetary credit and a claim cannot be made against the previous purchase of a new battery at regular price. For more
information, please contact Rolls Battery Sales or Technical Support.
20 HR 100 HR
Terminal
RATE RATE
Type
(AH) (AH)
250 275
335 370
415 460
85 94
115 128
145 161
210 231
215 237
260 290
550 590
880 945
1100 1180
1750 1895
2200 2375
3300 3560
S6-460AGM

ROLLS BATTERY AGM MODEL WARRANTY

LENGTH WIDTH
Inches / cm Inches / cm
M8 10.31" 26.20 cm 7.13" 18.10 cm
DT 11.61" 29.50 cm 7.00" 17.78 cm
DT 11.61" 29.50 cm 7.00" 17.78 cm
M6 10.24" 26.00 cm 6.65" 16.90 cm
M8 12.91" 32.80 cm 6.77" 17.20 cm
M8 13.34" 34.10 cm 6.81" 17.30 cm
LT 20.87" 53.00 cm 8.23 " 20.90 cm
DT 15.00" 38.10 cm 7.01" 17.80 cm
LT 20.51" 52.10 cm 10.59 " 26.90 cm
M8 9.49" 24.10 cm 6.77" 17.20 cm
M8 16.18" 41.40 cm 6.89" 17.50 cm
M8 18,66" 47.40 cm 6.89" 17.50 cm
M8 15.79" 40.10 cm 13.66" 34.70 cm
M8 19.29" 49.00 cm 13.74" 34.90 cm
M8 27.99" 71.10 cm 13.90" 35.30 cm
S12-128AGM
support@rollsbattery.com
HEIGHT WEIGHT
Inches / cm lbs / kg
10.76" 27.33 cm 76 lbs 34.5 kg
14.41" 36.60 cm 105 lbs 47.8 kg
16.69" 42.40 cm 123 lbs 55.8 kg
9.34" 23.72 cm 55 lbs 25.1 kg
9.31" 23.64 cm 72 lbs 32.7 kg
12.18" 30.94 cm 98 lbs 44.3 kg
8.58" 21.80 cm 133 lbs 60.5 kg
14.61" 37.10 cm 132 lbs 60.0 kg
8.82" 22.40 cm 172 lbs 78.1 kg
14.37" 36.50 cm 82 lbs 37.2 kg
14.37" 36.50 cm 136 lbs 61.5 kg
14.41" 36.60 cm 162 lbs 73.5 kg
14.88" 37.80 cm 243 lbs 110.2 kg
15.04" 38.20 cm 322 lbs 146.1 kg
15.04" 38.20 cm 485 lbs 220.0 kg
S2-945AGM
