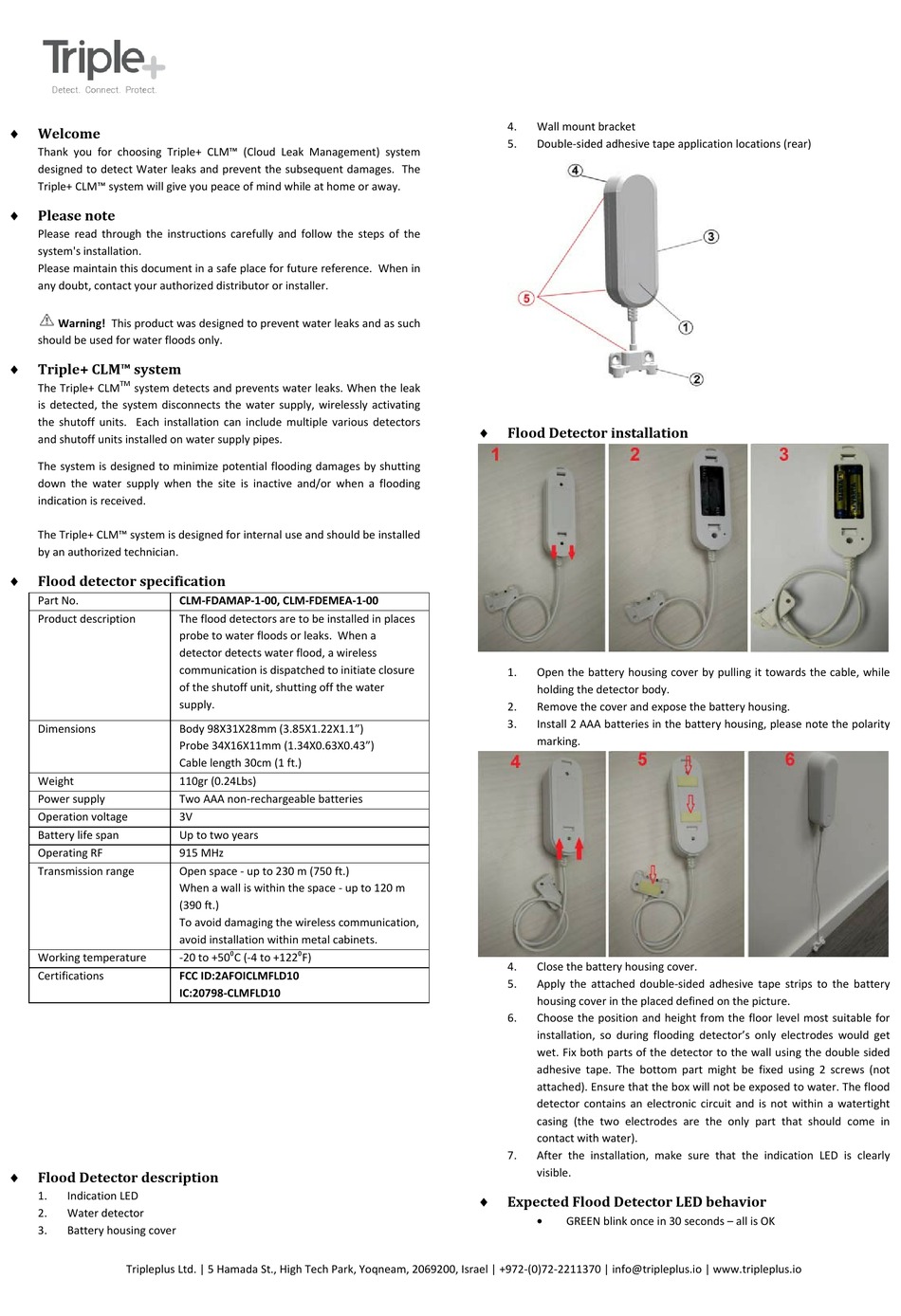

Triple Plus CLM-FDAMAP-1-00 Quick Start Manual



Welcome

Thank you for choosing Triple+ CLM™ (Cloud Leak Management) system
designed to detect Water leaks and prevent the subsequent damages. The
Triple+ CLM™ system will give you peace of mind while at home or away.

Please note
Please read through the instructions carefully and follow the steps of the
system's installation.
Please maintain this document in a safe place for future reference. When in
any doubt, contact your authorized distributor or installer.
Warning! This product was designed to prevent water leaks and as such
should be used for water floods only.

Triple+ CLM™ system
TM system detects and prevents water leaks. When the leak
The Triple+ CLM
is detected, the system disconnects the water supply, wirelessly activating
the shutoff units. Each installation can include multiple various detectors
and shutoff units installed on water supply pipes.
The system is designed to minimize potential flooding damages by shutting
down the water supply when the site is inactive and/or when a flooding
indication is received.
The Triple+ CLM™ system is designed for internal use and should be installed
by an authorized technician.

Flood detector specification
Part No.
Product description
Dimensions
Weight
Power supply
Operation voltage
Battery life span
Operating RF
Transmission range
Working temperature
Certifications

Flood Detector description
1. Indication LED
2. Water detector
3. Battery housing cover
Tripleplus Ltd. | 5 Hamada St., High Tech Park, Yoqneam, 2069200, Israel | +972‐(0)72‐2211370 | info@tripleplus.io | www.tripleplus.io
CLM‐FDAMAP‐1‐00, CLM‐FDEMEA‐1‐00
The flood detectors are to be installed in places
probe to water floods or leaks. When a
detector detects water flood, a wireless
communication is dispatched to initiate closure
of the shutoff unit, shutting off the water
supply.
Body 98X31X28mm (3.85X1.22X1.1")
Probe 34X16X11mm (1.34X0.63X0.43")
Cable length 30cm (1 ft.)
110gr (0.24Lbs)
Two AAA non‐rechargeable batteries
3V
Up to two years
915 MHz
Open space ‐ up to 230 m (750 ft.)
When a wall is within the space ‐ up to 120 m
(390 ft.)
To avoid damaging the wireless communication,
avoid installation within metal cabinets.
‐20 to +50 0 0
C (‐4 to +122 F)
FCC ID:2AFOICLMFLD10
IC:20798‐CLMFLD10
4. Wall mount bracket
5. Double‐sided adhesive tape application locations (rear)

Flood Detector installation
1. Open the battery housing cover by pulling it towards the cable, while
holding the detector body.
2. Remove the cover and expose the battery housing.
3. Install 2 AAA batteries in the battery housing, please note the polarity
marking.
4. Close the battery housing cover.
5. Apply the attached double‐sided adhesive tape strips to the battery
housing cover in the placed defined on the picture.
6. Choose the position and height from the floor level most suitable for
installation, so during flooding detector's only electrodes would get
wet. Fix both parts of the detector to the wall using the double sided
adhesive tape. The bottom part might be fixed using 2 screws (not
attached). Ensure that the box will not be exposed to water. The flood
detector contains an electronic circuit and is not within a watertight
casing (the two electrodes are the only part that should come in
contact with water).
7. After the installation, make sure that the indication LED is clearly
visible.

Expected Flood Detector LED behavior

GREEN blink once in 30 seconds – all is OK
