optris ACCSMIAC Quick Reference

Irmobile app connector for csmicro

ACCSMIAC

Quick Reference/ Kurzanleitung

Scope of Supply/ Lieferumfang

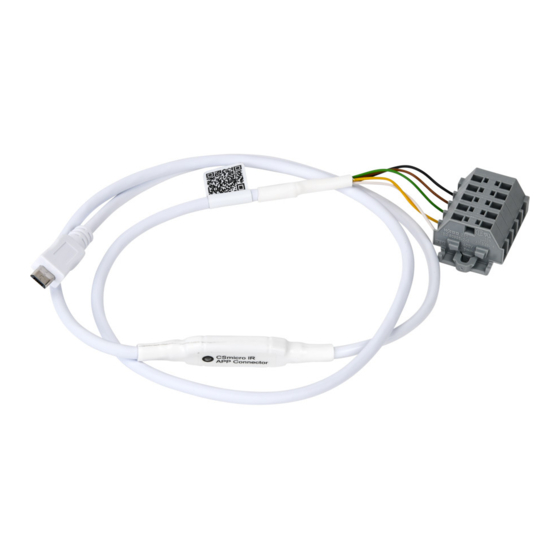

 IR App Connector cable with Micro-USB plug and adapter for

USB-C- and USB-A/ IR App Connector-Kabel mit Micro-USB-

Stecker und USB-C- und USB-A-Adaptern

Please connect each wire of the IR App Connector cable with the same colored wire of the sensor cable by using the

terminal block. Press with a screw driver as shown in the picture to loose a contact.

Verbinden Sie bitte jede Ader des IR App Connector-Kabels mit der

gleichfarbigen Ader des Sensorkabels mit Hilfe des Klemmblocks. Drücken

Sie mit einem Schraubendreher auf die einzelnen Kontakte wie abgebildet,

um einen Kontakt zu lösen.

IRmobile App Connector

ACCSMIAC-MAD-ED2020-03-A

Table of Contents

Need help?

Do you have a question about the ACCSMIAC and is the answer not in the manual?

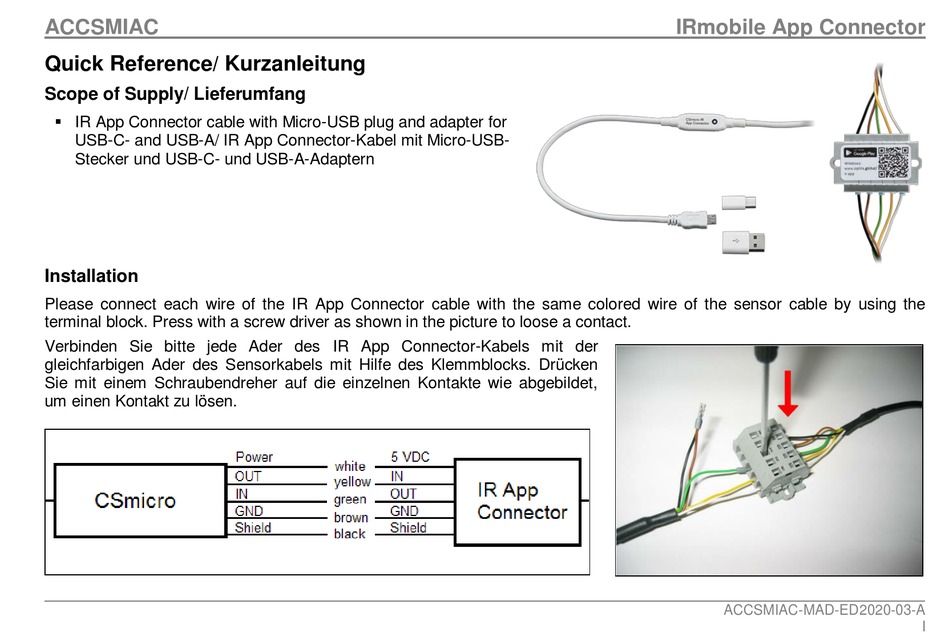

Page 1 ACCSMIAC IRmobile App Connector Quick Reference/ Kurzanleitung Scope of Supply/ Lieferumfang  IR App Connector cable with Micro-USB plug and adapter for USB-C- and USB-A/ IR App Connector-Kabel mit Micro-USB- Stecker und USB-C- und USB-A-Adaptern Installation Please connect each wire of the IR App Connector cable with the same colored wire of the sensor cable by using the terminal block.
Page 2 ACCSMIAC IRmobile App Connector Download the IRmobile App for free from the Google Play Store. A QR code is located on the back of the terminal block. The app works on most Android (5.0 or higher) devices with a micro USB or USB-C port that supports USB OTG (On The Go).
