The purpose of this guide is to:
1. Describe attachment of Utility Basket to Post (page 2).
2. Describe assembly of Post to Base (page 3).
3. Describe attachment of the Handle (page 3).
4. Describe attachment of Mounting Adapter to the monitor (page 4).
5. Describe mounting of the monitor (page 4).
6. Describe tilt and tilt tension adjustment (page 5).

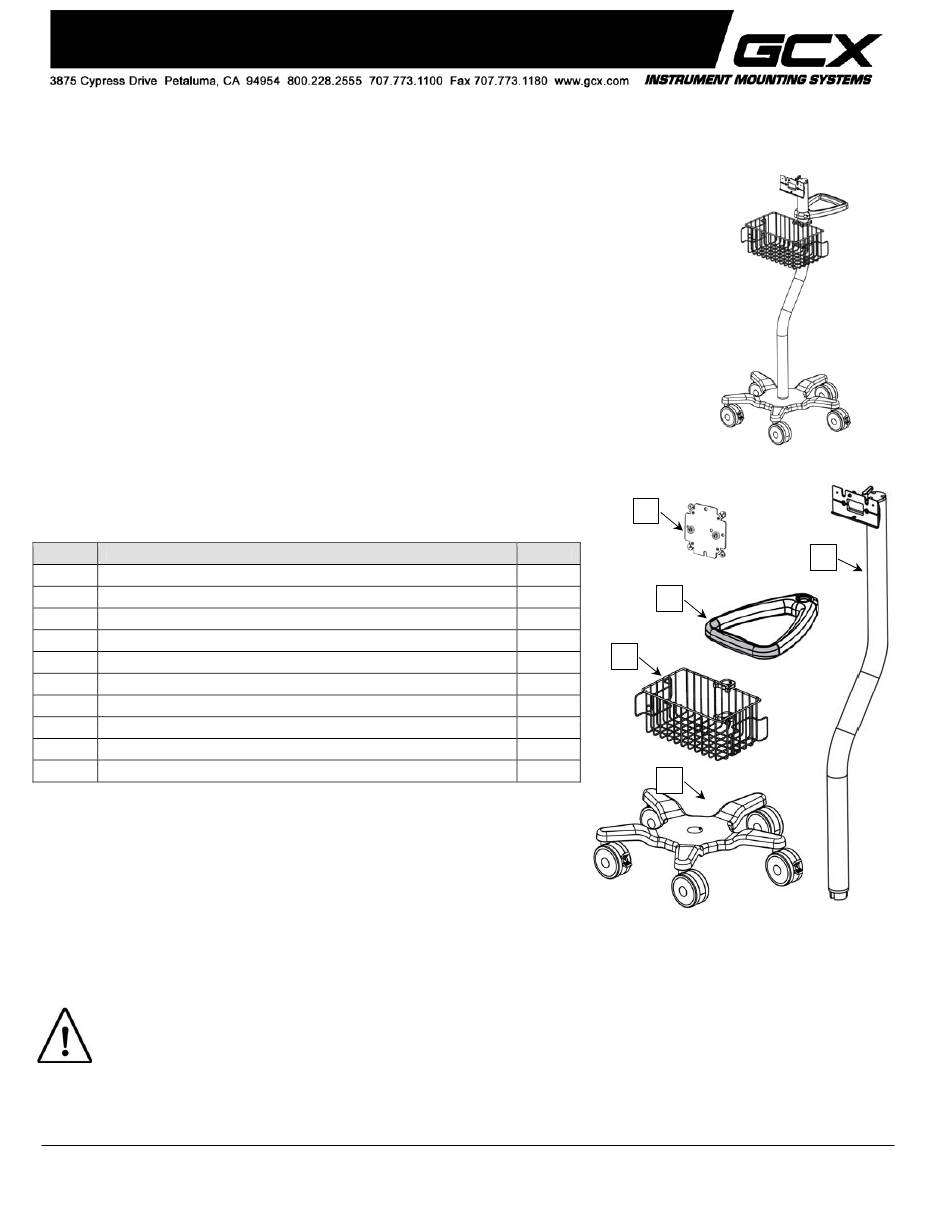

Parts Reference
The following parts are provided for this procedure (hardware not shown):
Item #
Description
1
42" Offset Roll Stand Post with Mounting Plate
2
21" Roll Stand Base with 10 lb Counter Weight
3
Mounting Adapter
4
Handle with pre-installed hardware (2)10-32 x 9/16 PHMS
5*
Basket with (2) Clips and pre-installed hardware
6
5/16-18 x 1" Hex Head Cap Screw (HHCS)
7
5/16 Split Washer
8
5/16 Flat Washer
9
M4 x 8mm Pan Head Machine Screw (PHMS)
10
5/32'' Hex Wrench
* Basket Clips have pre-installed hardware (2) 8-32 x 1-1/2'' PHMS, (2) 8-32 Hex Nuts.
Tools Required:
• Phillips screwdriver (not provided)
• 1/2" Socket Wrench (not provided)
• 5/32 Hex Wrench (provided)
WARNING: Do not reposition Handle or Basket higher on the Post than shown in this Guide. Any
additional accessory or components mounted on the Roll Stand Post could result in injury due to tipping
of the Roll Stand.
Installation Guide
Roll Stand Kit for Welch Allyn® 1500 Patient Monitor
3
Qty
1
4
1
1
1
5
1
1
1
1
4
1
2
DU-WA-0014-60 Rev A 4/27/10 GCX Corp. Page 1 of 5
1
Advertisement
Table of Contents
Summary of Contents for GCX Welch Allyn 1500
- Page 1 WARNING: Do not reposition Handle or Basket higher on the Post than shown in this Guide. Any additional accessory or components mounted on the Roll Stand Post could result in injury due to tipping of the Roll Stand. DU-WA-0014-60 Rev A 4/27/10 GCX Corp. Page 1 of 5...
- Page 2 3. Slide Clips to top and bottom of Basket as shown below right. Using a Phillips screwdriver, tighten both Clips to secure Basket on Post. Clip hardware (2) 8-32 x 1-1/2'' PHMS and (2) 8-32 Hex Nuts has been pre-installed. Slide Lower Clip to bottom of Basket DU-WA-0014-60 Rev A 4/27/10 GCX Corp. Page 2 of 5...
- Page 3 Using a Phillips screwdriver, fasten Handle to Roll Stand Post with two (2) #10-32 x 9/16'' PHMS as shown. Alternately tighten Handle screws until Handle does not rotate around Post. 10-32 x 9/16 PHMS (2) DU-WA-0014-60 Rev A 4/27/10 GCX Corp. Page 3 of 5...
- Page 4 Tighten by hand the two (2) Nylon screws to further secure the Monitor (below right). To remove Monitor, pull Plunger and lift. Clearance Hole Nylon Screws (2) Plunger must snap into clearance hole Guide Bushings (2) DU-WA-0014-60 Rev A 4/27/10 GCX Corp. Page 4 of 5...
- Page 5 Dry the mounting assembly thoroughly after cleaning. CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted devices or accessory equipment, refer to the specific instructions delivered with those products.
