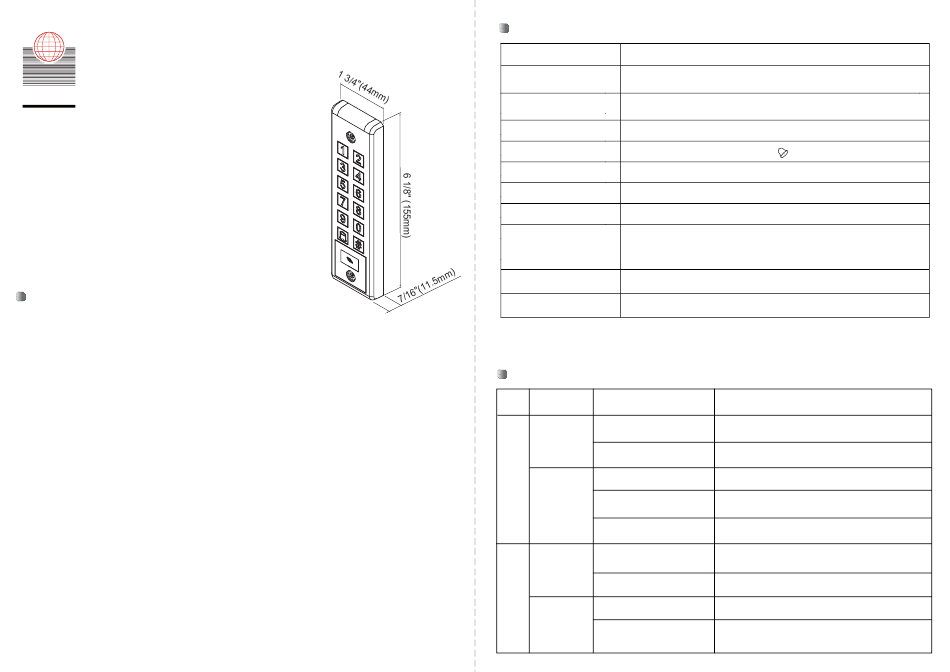

ROFU 9860 Operation Manual

ROFU 9860
R F U O Proximity Reader and Keypad
Operation Manual
Supplied with ROFU 9126T 12V
Plug In Power Supply
ROFU Security International Corp.
10029 S. Tacoma Way, E-11
Lakewood, WA 98499 USA
1-800-255-7638 (1-800-ALL-ROFU)
www.ROFU.com
OrderEntry@rofu.com

Features

1. IP65 weatherproof rating.
2. Aluminum alloy casing with vandal resistant screws for enhanced safety and durability.
3. 1000 Users, 4 to 6 digit code length.
4. Keypad tamper lockout: If a wrong code is entered or a wrong card is swiped for 5 consecutive
times, the keypad will be locked for 1 minute.
5. 2 LEDs with 4 colors and built-in buzzer indicate status.
6. Audible code entry verfication.
7. Logical memory prevents duplicated card setting.
8. Non-volatile memory protects programmed information in case of power failure.
9. Designed with piezoelectric keypad.
10. Optical tamper sensor for added security.
11. Access modes:
a. User Card Only
b. User Code or User Card (Default Setting)
c. User Code + User Card
12. Internally uses an electronic switch to prevent magnetic disturbances.
13. There are several ways the ROFU 9860 proximity keypad reader may be powered:
Using the supplied ROFU 9126T 12VDC Plug In Switching Power Supply
●
Using a 12VDC or a 24VDC switching or linear power supply
●
(Note: ROFU 9126T Plug In Power Supply is designed to connect keypads, electrified locks, exit
buttons and switches. Higher efficiency, smaller size and weight are perfectly for the 9860 keypad
reader)

Specifications

Operating Voltage
12~24VAC/VDC
Active: 120mA/12VDC
Current Draw
Active: 80mA/24VDC
Transmission
EM125Kz
Frequency
1 9/16" (40mm) (No metal disturbances)
Sensor Distance
Keypad
6x2 matrix backlit keypad (0~9,
Output 1 electronic switch (N.O. /COM. Dry Contacts)
LED Status Indication 2 LEDs with 4 colors (Blue/Green/Yellow/Red)
1000 User cards or user codes
Memory Volume
01~99 seconds or manual mode (00)
Relock Time
(When used with 9126T Plug In Power Supply, please set
relock time by its timer)
20%~80% (Non-condensing)
Ambient Humidity
-4°F~131°F (-20°C~55°C)
Operating Temperature
LED & Audible Indicators
Mode Signal Indication
Blue Indicator Stays On
Standby
Green Indicator On
LED
Yellow Indicator On
Programming Green Indicator On
Red Indicator On
1 Beep
Standby
Beep
3 Beeps
1 Beep
Programming
3 Beeps
,
Standby: 70mA/12VDC
,
Standby: 50mA/24VDC
, #)
Keypad Status and Description
Power on and Standby
Electronic switch activated
Programming Mode
The storage location of the electronic switch
is available
The storage location of the electronic switch
is not available
Valid entry, Key press and Enter
Programming Mode
Invalid Entry
Correct Input Data or Exit Programming Mode
Incorrect Input Data, Other invalid operation, or
Duplicated card setting
