OWNER'S MANUAL

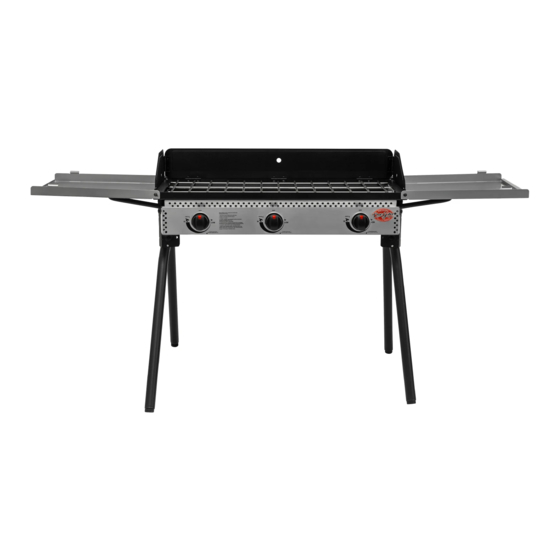

3-BURNER OUTDOOR STOVE
Danger
•
Never operate this appliance unattended.
•
Never operate this appliance within 10 ft
(3.0 m) of any structure, combustible
material or other gas cylinder.
•
Never operate this appliance within 25 ft
(7.5 m) of any flammable liquid.
•
Heated liquids remain at
scalding temperatures long after
the cooking process.
Using the information contained in this manual without consent of Char-Griller
OM 3338 E A.3
Model #3338
Keep your receipt with this manual for Warranty.
Contents of this manual are Trademarked and Copyrighted by Char-Griller
CUSTOMER SERVICE
1-912-638-4724
Service@CharGriller.com
•
Never touch cooking appliances
until liquids have cooled to 115°F
(45°C) or less.
•
If a fire should occur, keep away from the
appliance and immediately call your fire
department. Do not attempt to extinguish
an oil or a grease fire with water.
Failure to follow these instructions could
result in fire, explosion or burn hazards
which could cause property damage,
personal injury or death.
| A&J Manufacturing
®
and/or A&J Manufacturing is strictly prohibited.
®
Advertisement
Summary of Contents for Char-Griller 3338
- Page 1 Contents of this manual are Trademarked and Copyrighted by Char-Griller | A&J Manufacturing ® Using the information contained in this manual without consent of Char-Griller and/or A&J Manufacturing is strictly prohibited. ® OM 3338 E A.3...
- Page 2 This Page Intentionally Left Blank...
- Page 3 TABLE OF CONTENTS Safety Warnings & Warranty....... A-1 Assembly Instructions ........B-1 Product Usage ..........C-1 Accessories ............D-1 Danger Warning If you smell gas: 1. Do not store or use gasoline or other flammable liquids or vapors in the 1.
-
Page 4: Important Safety Warnings
IMPORTANT SAFETY WARNINGS An LP cylinder is required for operation. This outdoor stove is not intended for commercial use. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE REFERENCE. - Page 5 Stay away from any source of ignition when changing LP cylinder. • When assembling the outdoor stove, do not obstruct ventilation openings of outdoor stove’s container compartment. Char-Griller reserves the right to make minor technical adjustments ® to the device.
- Page 6 • This outdoor stove is only intended for heating water (not oil or grease). 1. Never fill the LP cylinder beyond 80% full, as this may result in a fire and cause serious injury or death. 2. DO NOT store a spare LP cylinder under or near this outdoor stove, and: 3.
- Page 7 • DO NOT leave a lit gas outdoor stove unattended. Keep children and pets away from outdoor stove at all times. • DO NOT place outdoor stove on any type of tabletop surface. • DO NOT use outdoor stove in high winds. •...
- Page 8 ® outdoor stove by visiting www.CharGriller.com/Register or calling Customer Service at 1-912-638-4724. Registration provides important protections: 1. In the extremely unlikely event of a product recall, Char-Griller can easily ® contact you and rectify the issue. 2. If a warrantied part is broken or missing, Char-Griller can send you the needed parts promptly.
- Page 9 “Usage” to review how to care for your outdoor stove properly. Surface issues such as scratches, dents, corrosion, or discoloring caused by heat, abrasive cleaners, or rust are NOT covered under warranty. Warranties are for the replacement of defective parts only. Char-Griller is not responsible for damage resulting ®...
- Page 10 ASSEMBLY INSTRUCTIONS...
-
Page 11: Parts List
PARTS LIST Item Part Name WIND SCREEN STOVE GRATE STOVE GRATE HOLDING BRACKET STOVE GRATE HOOK SIDE HANDLE BURNER ASSEMBLY BURNER AIR DAMPER RIGHT SIDE SHELF STOVE BODY LOGO PLATE CONTROL PANEL RIGHT LEG ASSEMBLY LEG ADJUSTER SCREW BODY HEAT DEFLECTOR HOSE VALVE REGULATOR ASSEMBLY KNOB KNOB BEZEL... - Page 12 STEP 1 PRESS TO RELEASE...
- Page 13 STEP 2...
- Page 14 STEP 3 STEP 4A...
- Page 15 STEP 4B STEP 4C...
- Page 16 STEP 5 STEP 6 To ensure sturdy assembly, tighten all BOLTS. FULLY ASSEMBLED...
- Page 17 FOLDING YOUR OUTDOOR STOVE STEP 1A STEP 1B...
- Page 18 STEP 1C STEP 2 LATCH SECURELY...
- Page 19 STEP 3 PRESS TO RELEASE FOLD ‘N GO B-10...
- Page 20 OPERATING INSTRUCTIONS Setting Up This appliance is designed for use outdoors, away from any flammable materials. It is important that there are no overhead obstructions and that there is a minimum distance of 36 inches (90 cm) from the side or rear of the appliance. Maintain a minimum 10 ft. clearance to objects that can catch fire or sources of ignition, such as: pilot lights on water heaters, live electrical appliances, etc.
- Page 21 NEVER EXCEED 650°F BECAUSE THIS WILL DAMAGE THE FINISH AND CONTRIBUTE TO RUST. PAINT IS NOT WARRANTED AND WILL REQUIRE TOUCH-UP. THIS UNIT IS NOT WARRANTED AGAINST RUST. CAUTION: 1. All cleaning and maintenance should be done when the outdoor stove is cool and the fuel supply is DISCONNECTED.
- Page 22 GAS OPERATION Regulator and Hose Regulator and Hose are supplied with the outdoor stove. If a replacement is necessary, please visit CharGriller.com or call our Customer Service department at 1-912-638-4724. DO NOT use replacement parts that are not intended for this outdoor stove. It is recommended that the regulator is changed within 10 years of the date of manufacture.
- Page 23 5. If bubbles form and grow on any of the tested components, there is a leak in the component. No bubbles mean no leaks. 6. If a leak has been identified, please re-secure/tighten all components and retest starting with steps 2-5. If leak persists, disconnect LP cylinder and call Char-Griller Customer Service ®...
- Page 24 Leveling the Outdoor Stove For safe operation, your outdoor stove must be level. If your outdoor surface is slightly out of level, use the adjustable feet at the bottom of each leg to correct. Turning the adjustable feet counterclockwise will raise the leg and clockwise will lower.
- Page 25 15 minutes. This process will ensure no performance issues and allow the outdoor stove to self-clean and sanitize. Main Burners Your Char-Griller outdoor stove is equipped with three (3) individual ® cast-aluminum burners. Each is controlled and lit by their own individual knob and integrated ignition.
- Page 26 Lighting Burner with a Match 1. Make sure all burner knobs are in OFF position. 2. Open valve on LP cylinder. 3. Locate ignition chain on the side of the outdoor stove and install match. Light match. 4. Push in and rotate knob counterclockwise to Burner Ports “HI”...
- Page 27 Observe Flame High Height When Lit Flame should be blue and yellow in color and approximately 1/2 in. - 1 in. (1.2 cm - 2.54 cm) tall on HI setting. Temperature Management Manage desired heat for cooking by adjusting burner knobs from LOW to HI. Weather conditions may cause heat fluctuations and require more heat in cold and/or windy conditions.
-
Page 28: Care And Maintenance
Char-Griller Outdoor Stove. ® Outdoor Stove Cover Extend the life of your outdoor stove by using a Char-Griller Custom Fit cover to protect it from the ® elements. Weather resistant polyester material protects against birds, dust, wind, rain and snow. - Page 29 SCAN FAVORITE ACCESSORIES FOR MORE FOR THE FULL LINE OF ACCESSORIES VISIT CHARGRILLER.COM Custom Fit Cover Char-Griller Grill Glove Tank Cover ® Weather Resistant Heat resistant Weather Resistant Protects Grill Finish Non-slip Silicone grip Nylon Velcro Covers the forearm Elastic at Top and Bottom...
- Page 30 This Page Intentionally Left Blank...
- Page 31 This Page Intentionally Left Blank...
- Page 32 P.O. Box 30864 Sea Island, GA 31561 1-912-638-4724 www.CharGriller.com Service@CharGriller.com...
