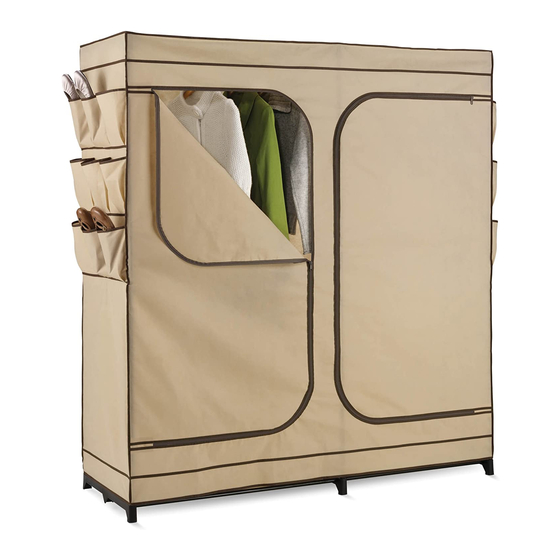

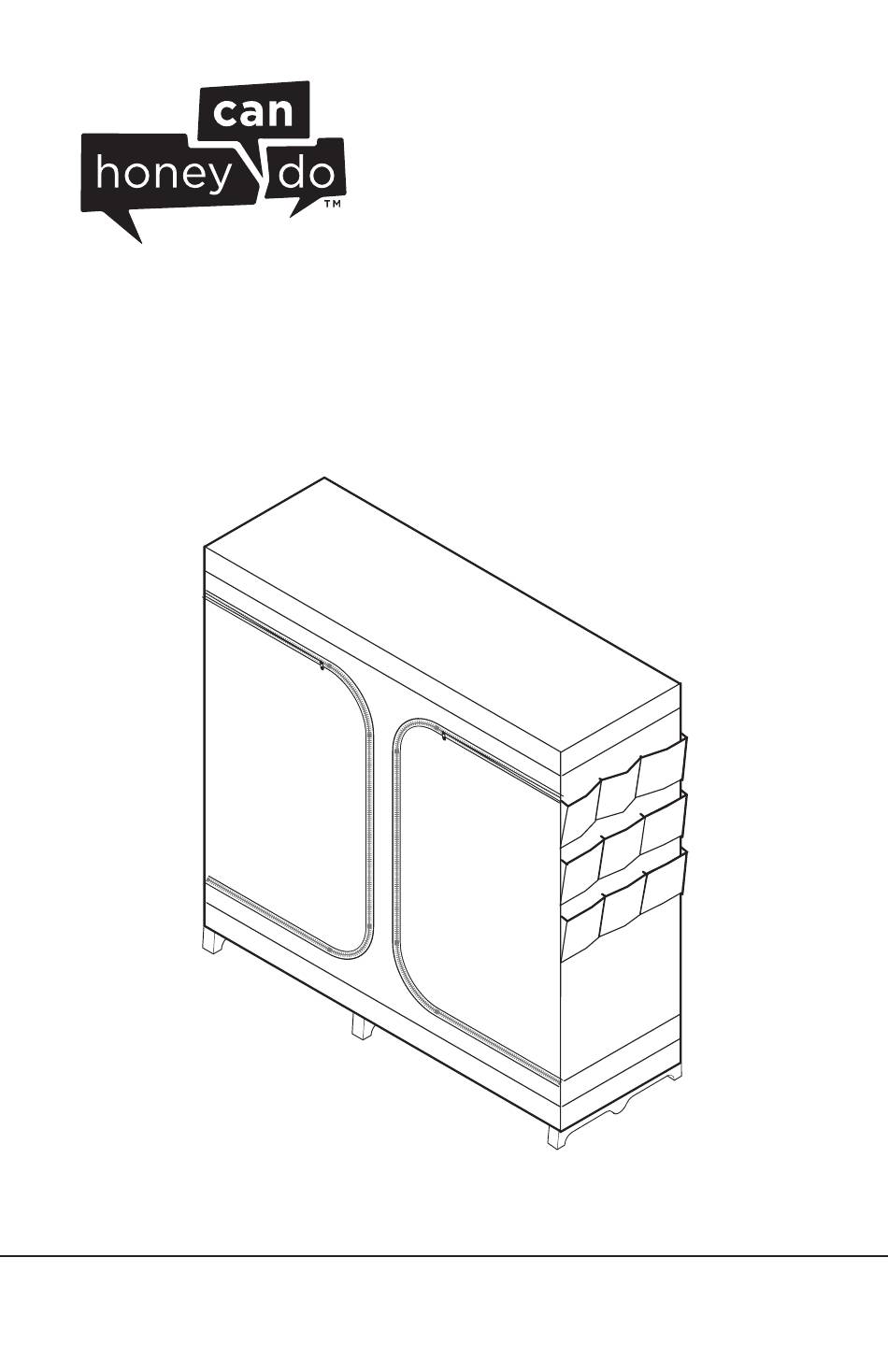

- Page 1 WRD-01272 WRD-01518 60" wide double door storage closet 64 in H x 60 in W x 19.7 in D (163 cm H x 152.4 cm W x 50 cm D) | 877.2.I.can.do (877.242.2636) honeycando sales honeycando...
- Page 2 IMPORTANT! Plead read prior to use. This Honey-Can-Do 60 inch Wide Double Door Storage Closet is designed for indoor use. Please do not over-load. To prevent tipping, we recommend that you evenly distribute the weight throughout the unit. Please keep top hanger bar horizontal when in use. Please do not use storage closet for anything other than its intended use.
-
Page 3: Parts List
PARTS LIST PART/ILLUSTRATION (QTY) DESCRIPTION side supports (these holes Do Not pass all the way through support) middle supports (these holes pass all the way through support) tapered supports bars (12) uprights support bars cover tapered hang bar (1/8" thicker than support bar) hang bar (1/8"... - Page 4 ASSEMBLY LOWER FRAME ASSEMBLY Note: all of the poles will need to be firmly seated into the plastic support pieces. DO NOT ROCK or TIP poles back and forth. Only push with firm even pressure straight into plastic support pieces. Please follow steps in the order listed.
- Page 5 ASSEMBLY PLACE COVER ON LOWER FRAME Please note: that this lower frame will be on the outside of the cover while the rest of the unit will be inside the cover. 1. Unzip the cover (F) all the way and carefully feed the lower frame uprights (D) through the holes (they are small slits) in the bottom of the cover.
- Page 6 ASSEMBLY ASSEMBLY STEP 1 (LOWER FRAME) WORKING INSIDE Working inside the cover continue by building the middle frame on top of the lower frame. Let the cover rise above the base unit 10-15 inches so that you have room to maneuver when working inside the cover.
- Page 7 ASSEMBLY ASSEMBLY STEP 1 (LOWER FRAME) MIDDLE FRAME ASSEMBLY what you should have so far... Middle Frame Assembly Lower Frame Assembly Working inside the cover 1. Install two side supports (A) and one middle support (B) on top of the uprights (D) from the lower assembly.
- Page 8 ASSEMBLY TOP FRAME ASSEMBLY hang bars (H) & (G) are placed into the bottom holes of the plastic supports Middle Frame Assembly Working inside the cover Install two side supports (A) and one middle support (B) on top of the uprights (D) from the middle frame assembly. 2.
- Page 9 ASSEMBLY FINAL STEP! 1. Gently pull cover down so that the bottom meets the base. Align the cover corners with the frame corners.
- Page 10 ASSEMBLY FINISHED PRODUCT...
- Page 11 LIMITED LIFETIME WARRANTY Honey-Can-Do International, LLC (HCD) warrants its products will be free from defects in ma- terials and workmanship when used for normal personal or household use, except as provided below. HCD, at its option, may offer a comparable product or offer a replacement part or request that the item be returned to the place of purchase.
- Page 12 your source for organization & storage style Honey-Can-Do International 5750 McDermott Drive, Berkeley, IL 60163 USA 877.242.2636 | www.honeycando.com 120607 ©2011 Honey-Can-Do International, LLC | All Rights Reserved...
