Hotbox Standard HB Series Quick Manual

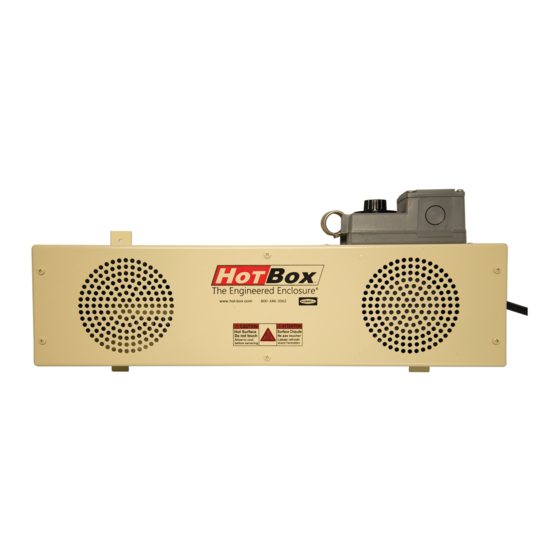

Standard HB Series Convection Heaters

Features:

Adjustable thermostat
100cfm fan (factory lubricated)
Quiet operation
Freeze Protection
Durability & long life
Fast and easy installation and maintenance
Factory coated beige finish
6' power cord and plug

Standards:

ETL listed (tested for wet/damp locations)
Thermostatically controlled to maintain an interior temperature of 40° F (4.4° C) and protect equipment from external
temperatures as low as -30° F (-34.4°C) in accordance with ASSE 1060 1.2.2.1.
Dielectric Voltage Withstand Test (Section 44.0 of the UL 499 Standard & Section 6.4 of the CAN/CSA C22.2, No. 88
standard).
Grounding Continuity Test (Section 45.1 of the UL 499 Standard & Section 6.5 of the CAN/CSA C22.2, No. 88 stan-
dard).
Hot Box
3621 Industrial Park Drive
Lenoir City, TN37771
CAUTION
Hot Surface. Surface Chaude
Do not touch. Ne pas toucher
Allow to cool before Laisser refroidir
servicing. avant l'entretien
1
CAUTION
Hot Surface. Surface Chaude
Do not touch. Ne pas toucher
Allow to cool before Laisser refroidir
servicing. avant l'entretien
Contact Information
Phone: (800) 346-3062
hotboxsales@hubbell.com
Rev 10/15
