PRODUCT INFORMATION PACKET
PRODUCT NAME: ML-1600 SEATING RISER

Advertisement

loading
Need help?

Need help?

Do you have a question about the ML-1600 SEATING RISER and is the answer not in the manual?

Questions and answers

Related Manuals for StageRight ML-1600 SEATING RISER

Summary of Contents for StageRight ML-1600 SEATING RISER

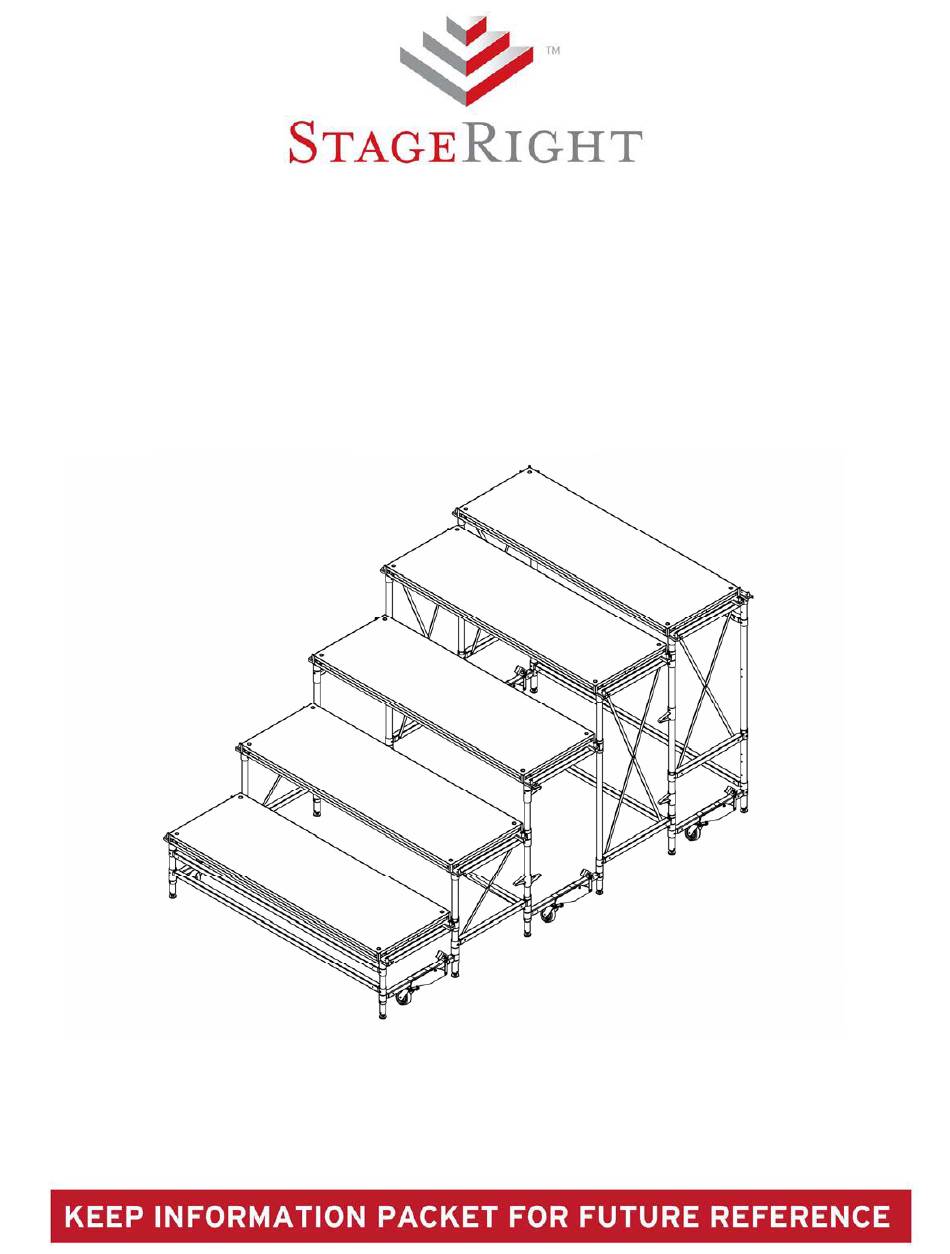

  • Page 1 PRODUCT INFORMATION PACKET PRODUCT NAME: ML-1600 SEATING RISER...

  • Page 2: Table Of Contents

    Careful study of this manual is encouraged to obtain a thorough understanding of your new ML-1600 Seating Riser and its functions and maintenance. If your manual becomes lost or destroyed, StageRight will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-438-4499.

  • Page 3: General Safety Rules

    Make sure that all decks are positioned properly onto the support system. Save these instructions. Refer to them frequently and use them to instruct others who may use the ML-1600 SEATING RISER SYSTEM. Read the Product Information Packet. Failure to read the information packet is considered a misuse of this equipment.

  • Page 4: Symbols

    Symbols Safety Alert: Precautions that involve your safety Read The Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product Pinch Point Warning Label: Failure to keep hands away from pinch points will result in personal injury Stay Clear of Caster Handle: Caster handle can rotate over at high speeds when casters are being disengaged.

  • Page 5: Technical Specifications

    StageRight Corporation Technical Specifications ML-1600 SEATING RISER SIDE VIEW: 3’ (.91m) or 4’ (1.22m) Typical Constant or Multiple Rises Available TOP VIEW: 6’ (1.83 m) or 8’ (2.44 m) Typical 8’ (2.44 m) Construction, Finish, and Hardware - Locator nodes made of steel...

  • Page 6: Instructions

    Instructions When setting up the ML-1600 Seating Riser, engage the casters before trying to open up the unit. To engage the casters, use the supplied handle and rotate the caster unit until the casters securely come in contact with the floor. Make sure the caster unit has been fully rotated before proceeding.
  • Page 7 After the seating riser has been fully extended, be sure to disengage the casters. Once again this is done by using the supplied handle to rotate the caster unit to the disengaged position. Note: Caster handle can rotate over at high speeds when the casters are being disengaged. Stay clear of handle path! With the unit fully extended and the casters disengaged, begin placing the decks on the seating riser.
  • Page 8 Parts List Parts List Parts List Parts List To correctly position the decks, align the holes in the deck with the locating nodes of the seating riser and drop the deck into place. If required, the decks can be securely fastened to the riser system with tie-down bolts that are dropped through the top of the deck and screwed into the locating nodes.
  • Page 9 ML-1600 Understructures can be used to bridge decks to provide the maximum amount of seating with a minimum number of understructures. Understructures may be set up as shown.

  • Page 10: Maintenance

    Customer Service For parts or service contact StageRight Corporation. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the technical specification page of this product information package.
  • Page 11 StageRight Corporation 495 Pioneer Parkway Clare, MI 48617 Toll-free: 800-438-4499 Phone: 989-386-7393 Fax: 989-386-3500 Email: info@stageright.com Web: www.stageright.com...
