Summary of Contents for VT CS61
- Page 1 CS61 User manual...
- Page 2 Designed and engineered in China Made in China MODEL: CS61...
- Page 3 5. How To Connect ....... 5.1 Connect To PC (Bluetooth) 5.2 Connect To PC (USB Cable) 5.3 Connect To Smartphone 6. How To Use ........6.1 Button Visibility 6.2 Typical Use 6.3 The LED Light-Ring Status 6.4 Voice assistant button CS61...
- Page 4 7. Software ..........7.1 UC Manager 7.2 Update Firmware 8. Support ..........8.1 Faq And Technical Specifications 8.2 How To Care For Your VT Device CS61...
- Page 5 1. Welcome Thank you for using the CS61. We hope you will enjoy it ! CS61 features • Immersive sound for calls and music • Intuitive plug and play connectivity - connect to laptop, smartphone and tablet via USB or Bluetooth •...

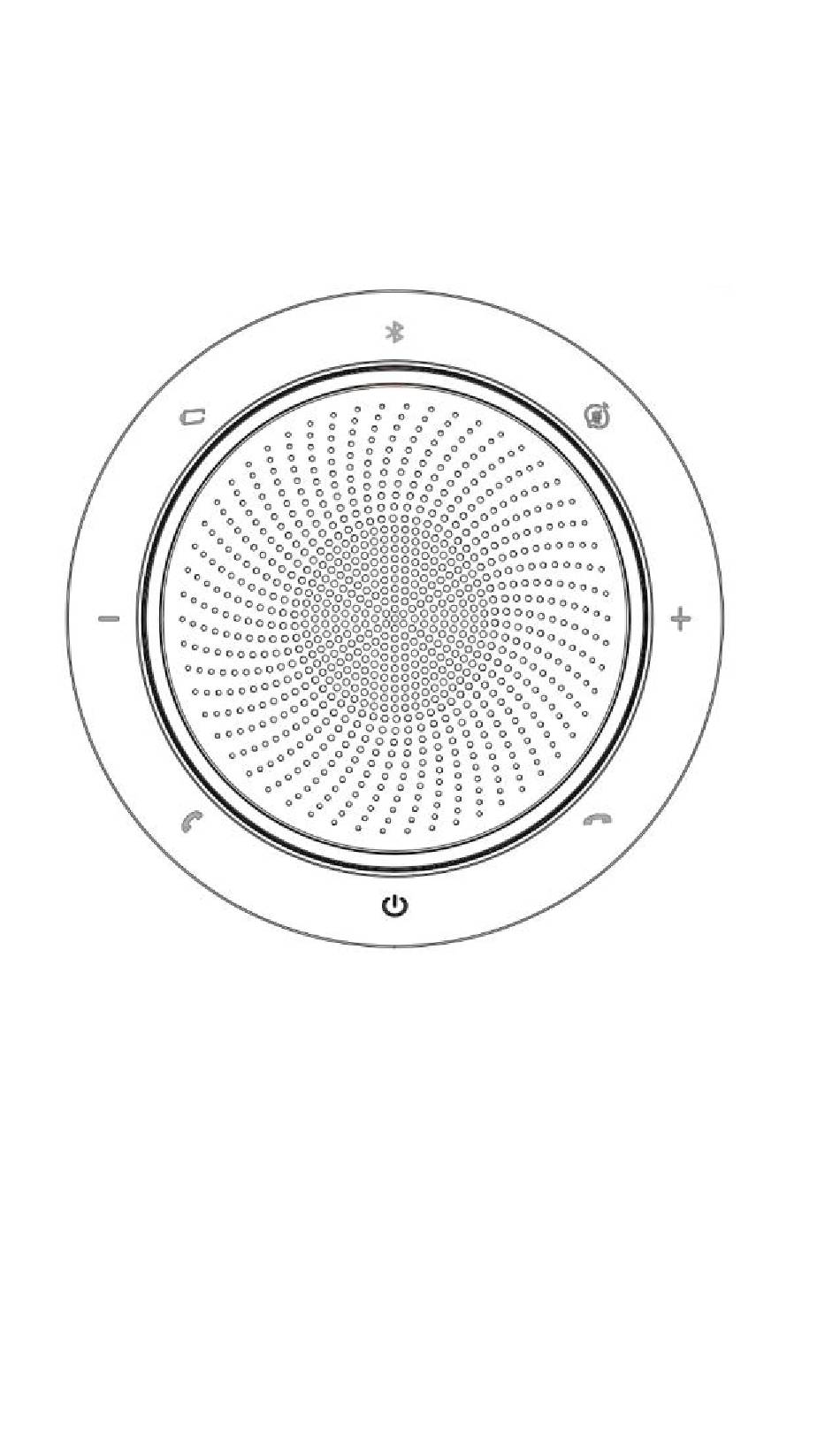

- Page 6 2. Overview Bluetooth Battery status Mute/ Voice assistant Volume Down Volume Up Busylight End Call Answer Call Power On/Off BT 100U USB Cable Table Stand CS61...
- Page 7 3. Where to position 3.1 Small meeting room Position the speakerphone in the center of the table, up to 2m/6ft from each participant. A single CS61 is ideal for up to 6 people. 2m/6ft CS61...

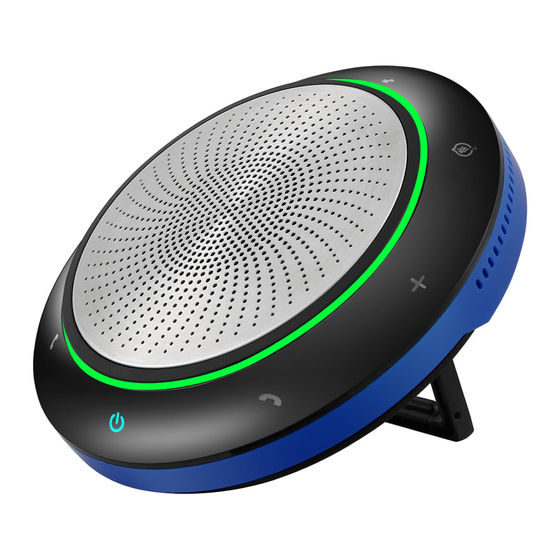

- Page 8 3.2 Desk When using the CS61 at your desk it is recommended to put the speakerphone into an upright position using the table stand. This will better direct the audio towards you. CS61...
-
Page 9: How To Charge
4. How to charge 4.1 USB charging Plug the CS61 into a USB power source using the attached USB cable. The CS61 battery lasts for up to 12 hours of talk time and takes approx. 3 hours to fully charge. -
Page 10: Battery Status
Green, when the battery is medium, the LED is Blue, When the battery is low battery, the LED is Red, When the battery is very low battery, the Red LED is flashing. Full battery Medium battery Low battery CS61... -
Page 11: How To Connect
30m/100 ft For the CS61 to work correctly you may need to set the BT 100U as the audio device in your operating system’s audio settings. To manually pair the CS61 with the BT 100U, please use UC Manager. CS61... - Page 12 5.2 Connect to PC (USB cable) Plug the CS61 into a USB port on your PC. You may need to set the CS61 as the playback device in your operating system’s audio settings. 5.3 Connect to smartphone Hold the Bluetooth button for 2 seconds and follow the voice-guided instructions to pair to your smartphone.
-
Page 13: How To Use
The Voice assistant button, and Mute button will only be visible under certain conditions (e.g. the Voice assistant button is only visible when the CS61 is connected smart phone and not on call). CS61... -
Page 14: Typical Use
6.2 Typical use CS61... - Page 15 WHAT Power on or The LED light-ring flashes Green, Blue and Red Incoming call The LED light-ring Green breathing On call The LED light-ring glow Red Mute The LED light-ring red breathing Low Battery The LED light-ring flashes Red CS61...
- Page 16 6.4 Voice assistant button By default, the voice assistant button will activate your smartphone’s voice assistant (Siri ® Google Now™, Cortana™,Xiaoai,Xiaoyi). When you press the voice assistant button, the button will turn Green light , and it will awaken the voice assistant. CS61...
- Page 17 7. Software 7.1 UC Manager UC Manager is PC software designed to support, manage enable optimal functionality for VT devices. Download the latest version from vbet.cn/UCM CS61...
-
Page 18: Update Firmware
7.2 Update firmware Firmware updates improve performance or add new functionality to VT devices. 1. Connect the CS61 to a PC using the USB cable. 2. Install UC Manager on your PC. 3. Use UC Manger to check for the latest firmware updates. - Page 19 • The CS61 is for indoor use only. • Avoid storage at extreme temperatures (above 65° C/149° F or below -40° C/-40° F). • Do not expose the CS61 to rain or other liquids. • Do not cover the CS61 with stickers or labels.
