User Manual
Instrukcja Obsługi
LED PAR 36 12xUV
F7100328

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED PAR 36 12xUV and is the answer not in the manual?

Questions and answers

Related Manuals for Flash butrym LED PAR 36 12xUV

Summary of Contents for Flash butrym LED PAR 36 12xUV

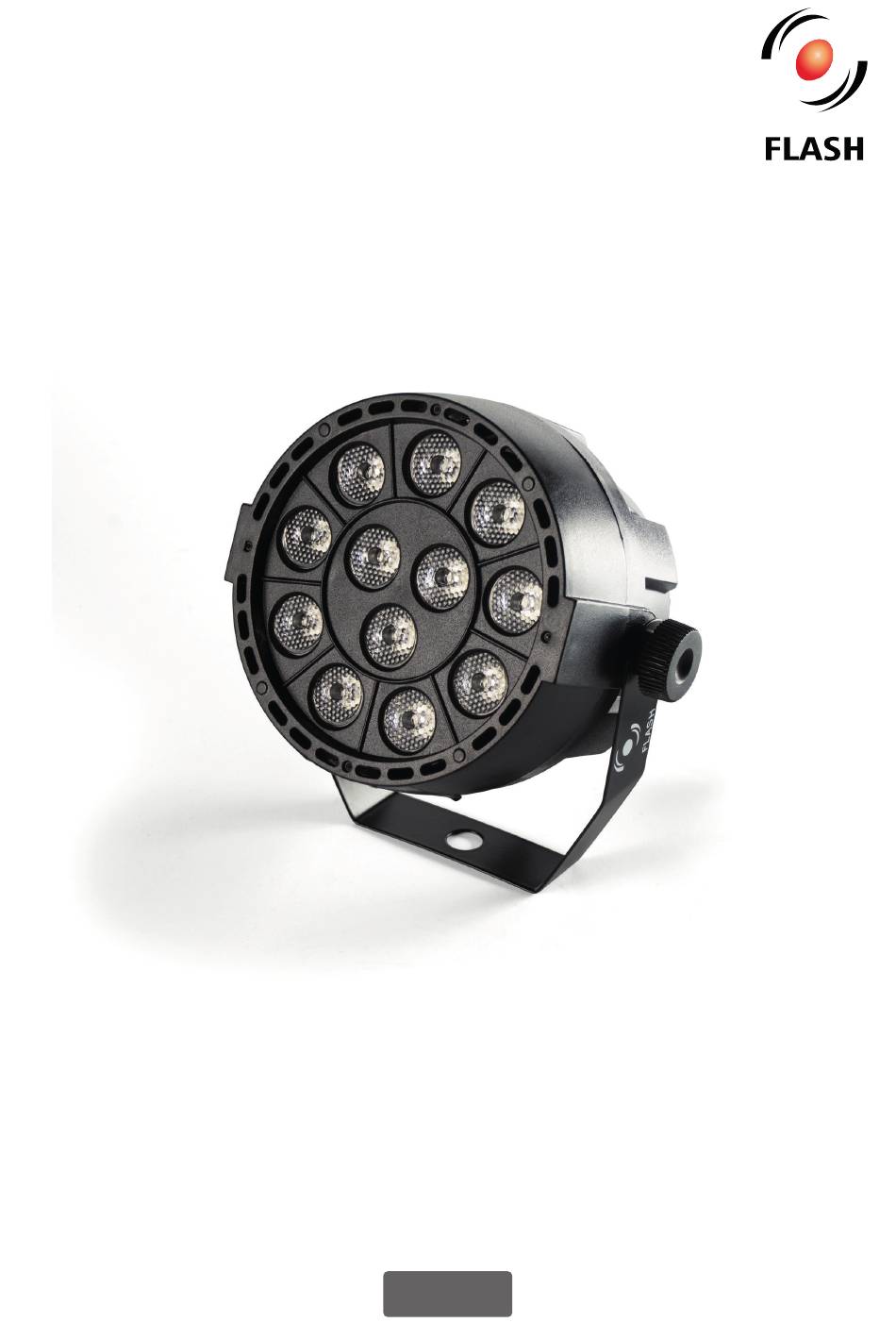

  • Page 1 User Manual Instrukcja Obsługi LED PAR 36 12xUV F7100328...
  • Page 2 User Manual •Instrukcja Obsługi 1. INTRODUCTION THANK YOU FOR PURCHASING LED PAR 36 12xUV. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CAREFULLY READ THE INSTRUCTIONS. Don’t operate it where the temperature is 2. SAFETY INFORMATION higher than this.
  • Page 3 LED PAR 36 12xUV • Art No F7100328 3. PRODUCT INFORMATION Light source: 12pcs x 3W UV LEDs  3-Pin XLR DMX input/output Power supply: AC 100V/240V 50/60Hz,  Net Weight: 0,6kg Power Consumption: 36W Dimensions: H(12)xW(12)xD(8,9) cm Signal: DMX 512 Package: Carton Box...
  • Page 4 User Manual •Instrukcja Obsługi 5.2 Voltage specification Input Voltage Total Power Frequency 100-240V 50/60Hz 5.3 Connecting power supply Make sure that the power grid supply The connection is performed using power cable with PowerCon connector parameters are consistent with device parameters and limitations are not ( i n c l u d e d ) .

  • Page 5: Table Of Contents

    LED PAR 36 12xUV • Art No F7100328 6. DMX CHANNELS Mode Value Description 8 channels DMX mode to select the d001-d512 starting address Master/Slave IP.01-IP.64 Master/Slave (64 units maximum) Static Color A1.01-A1.10 Select the LED position Auto Program A2.01-A2.32 Adjust hopping speed (slow to fast) A3.01-A3.19...

  • Page 6: Static Color

    User Manual •Instrukcja Obsługi Function Value Description No Function 0-10 Static Color 11-50 + CH2 to Select LED Position Auto-Play 51-100 +CH3 to Adjust Speed +CH2 to Select LED Position Fade 101-150 +CH3 to Adjust Speed Sound-Active 151-200 +CH2 to Select LED Position Strobe 201-255 +CH3 to Adjust Speed...
  • Page 7 LED PAR 36 12xUV • Art No F7100328 1. WPROWADZENIE Dziękujemy za zakup urządzenia . Ze względów LED PAR 36 12xUV bezpieczeństwa oraz w celu zapewnienia bezawaryjnej pracy urządzenia należy dokładnie zapoznać się z instrukcją.  Nie należy korzystać z urządzenia 2.
  • Page 8 User Manual •Instrukcja Obsługi 5. POLACZENIA GROUND DMX + Urządzenie wyposażone jest w następujące DMX - interfejsy: 3-pin XLR 1. DMX (wejście/wyjście) – złącza: ŻEŃSKI MĘSKI XLR 3(5)-pin 2. Zasilanie (wejście/wyjście) – złącze: GROUND powerCON DMX - 5.1 Podłączenie sygnału DMX DMX + 5-pin XLR Połączenie odbywa się...

  • Page 9: Mode

    LED PAR 36 12xUV • Art No F7100328 6. LISTA KANALOW DMX Mode Value Description 8 channels DMX mode to select the d001-d512 starting address Master/Slave IP.01-IP.64 Master/Slave (64 units maximum) Static Color A1.01-A1.10 Select the LED position Auto Program A2.01-A2.32...
  • Page 10 User Manual •Instrukcja Obsługi Function Value Description No Function 0-10 Static Color 11-50 + CH2 to Select LED Position Auto-Play 51-100 +CH3 to Adjust Speed +CH2 to Select LED Position Fade 101-150 +CH3 to Adjust Speed Sound-Active 151-200 +CH2 to Select LED Position Strobe 201-255 +CH3 to Adjust Speed...
  • Page 11 LED PAR 36 12xUV • Art No F7100328...
  • Page 12 F7100328 www.flash-butrym.pl...
