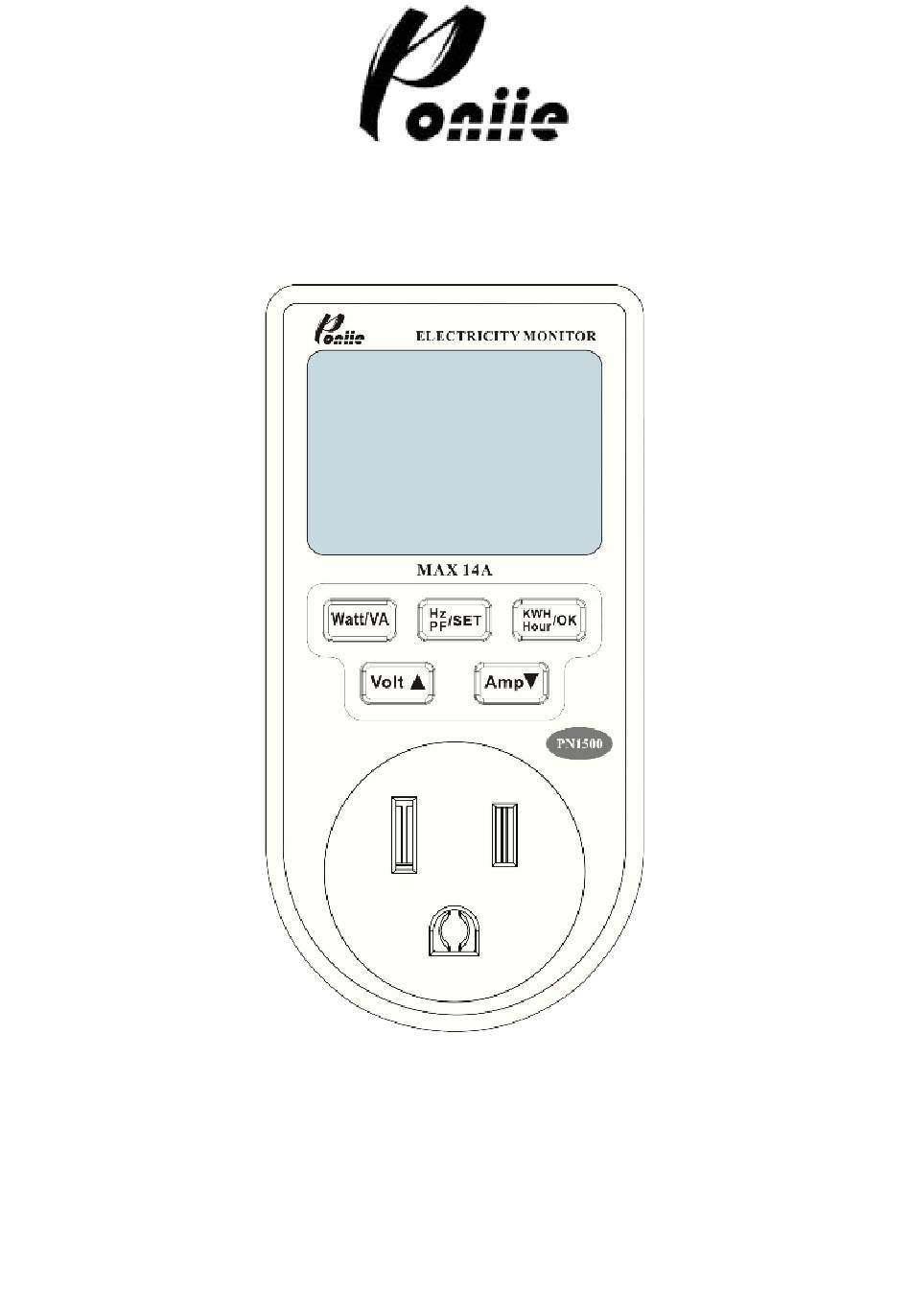

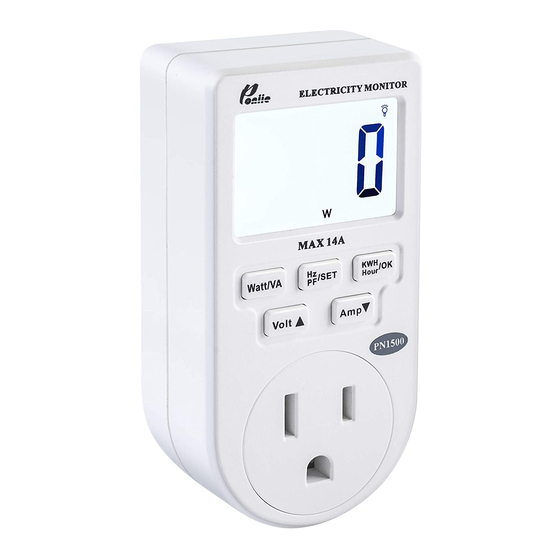

- Page 1 User Manual Model No: PN1500 Thank you for purchasing the Electricity Usage Monitor by Poniie. Please read this manual carefully before using this product.
- Page 2 How to calculate your dollar cost of energy consumption over a period? Plug the PN1500 device into the outlet, then plug the electric appliance which you want to test into the Power Monitor. Reset the EC & CT data, then it will start measuring the kilowatts used over a measured period of time.
- Page 3 1. Before using this product, check the shell for cracks or shortage of plastic parts, pay attention to the insulation around the connector. Do not use if damaged. 2. DO NOT overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 3.
- Page 4 1. There are five functional buttons on the product “Watt/VA”, “Hz-PF/SET”, ▼ “KWH-Hour/OK”, “Amp ” & “Volt▲”. 2. LCD display is shown as above. 1. Device startup/shutdown Plug the monitor directly into the power socket and connect to AC power to start the device;...
- Page 5 interface (as shown in Figure 1), press “SET” again and the “ON or OFF” is displaying. At this time, you can select to “ON or OFF” by pressing “▼” or “▲” key, after selection, press the “OK” key to exit setting. “OFF” means that the backlight will turn OFF automatically when the device is not operated by the keys within 10 seconds;...
- Page 6 ○ Current ▼ Press “Amp ” Key for true RMS output current (Amps) display (as shown in Figure 3). The measuring display range is 0.00-15.00A ○ Watts and VA The “Watt/VA” Key is a toggle function key. Press the Watt/VA key once to display Watt meter (as shown in Figure 4), then press key to display VA meter (as shown in Figure 5).
- Page 7 ○ Frequency and Power Factor The “Hz-PF/SET” is a toggle function key. Press the HZ/PF key once to display the frequency (Hz, as shown in Figure 6), then press key to display the Power Factor (PF, as shown in Figure 7). Hz is the Frequency of output Voltage, where PF is the Power Factor (PF=Watts/Vrms Arms).
- Page 8 respectively. The measured cumulative value will be automatically stored, and will not lost even under long time power outage, which is great for circuits that loose power. How to clear EC and CT data? Respectively switch to EC and CT monitoring interface. Press & hold “SET” for 2s, the cumulative electricity consumption value and time will flicker.
- Page 9 10s Auto off (ON/OFF can be set) Accuracy standard Class 1.0 Resolution 0.01W, 0.01A, 0.1V Power dissipation <1.00W Working temperature 0~45℃ Storage temperature -20~60℃ Product dimension 95*47*40 mm Net Weight Warranty 1 Year •1 x PN1500 Electricity Usage Monitor •1 x User Manual...
