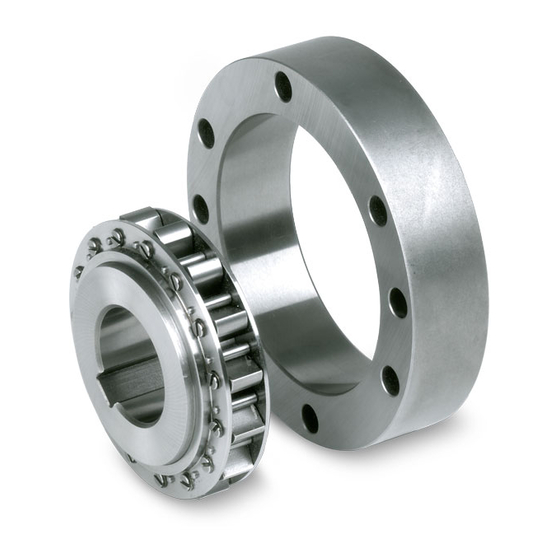

- Page 1 Assembly and maintenance manual Type RSXM31-RSXM101 Hatschekstr.36 69126 Heidelberg Germany Phone +49(0)6221 30470 +49(0)6221 304731 info@stieber.de www.stieber.de Rev.0 08.07.14...
-
Page 2: Table Of Contents
Table of contents Page General safety instructions ....................2 General ..........................4 Information relating to the assembly and maintenance manual ......... 4 Explanation of symbols ....................4 Manufacturer ......................5 Labeling ........................5 Stieber Clutch Page 2/21... - Page 3 Assembly in case of maintenance when using oil lubrication ........18 Disassembly ........................19 Disposal ......................... 20 10 Faults ..........................20 11 Spare parts ........................20 12 Appendix ........................20 12.1 Layout drawing RSXM31-RSXM101 ................ 21 Stieber Clutch Page 3/21...
-
Page 4: General
...indicates a potentially dangerous situation which can CAUTION! cause property damage if it is not averted. … highlights helpful tips and recommendations as well as NOTE! information for efficient and fault-free operation. Stieber Clutch Page 4/21... -
Page 5: Manufacturer
When operating in the locking direction of the one-way clutch, the machine shaft and the torque bracing to the machine element are connected in a force-looking manner. In this operating state, a torque will be transferred. Stieber Clutch Page 5/21... -
Page 6: Responsibility Of The Operator
Knowledge of first-aid measures and on-site emergency equipment must also be included. Stieber Clutch Page 6/21... -
Page 7: Personal Protective Equipment
Ø h6 or j6 Required tolerance outer race centering (inner diameter) : Ø H6 or G6 Oil lubrication: approved oils according Stieber catalogue / WN900 Grease lubrication: approved greases according Stieber catalogue / WN900 Stieber Clutch Page 7/21... -
Page 8: Structure And Function
(8) and are energized by springs into contact with the outer and inner race. The springs ensure rapid responding behavior of the one-way clutch at the start of torque transmission. Stieber Clutch Page 8/21... -
Page 9: Transport And Packaging
One-way clutches of Type RSXM31-RSXM101 are packaged in non-absorbent corrosion protection paper. All components are sent in a box. To prevent the component from breaking or falling apart they are fixed with a cable clip. Stieber Clutch Page 9/21... -
Page 10: Storage
Keep dry and free from dust. Do not expose to aggressive media. Keep away from direct sunlight. Avoid mechanical shocks and vibrations. Storage temperature: −10 to +60 °C. Relative humidity: maximum 95%, non-condensing. Stieber Clutch Page 10/21... -
Page 11: Installation
Place the inner race (2) including the cage (8) facing downwards the label "FREE" on an assembly table Secure (see Fig. 4 and 5) the clamp bodies in lift-off position (against the spring force) using an O-ring / cable connector as an assembly aid Stieber Clutch Page 11/21... -
Page 12: Lubrication
The lifetime is limited under these operating conditions! The oil volume which is necessary for splash lubrication depends on the surrounding construction. Stieber Clutch Page 12/21... -
Page 13: Operation With Grease Lubrication
Remove the assembly aid (O-ring / cable connector) completely and lower the inner race and cage completely. Check overrunning. The one-way clutch must be able to be turned easily in the overrun direction of rotation. Stieber Clutch Page 13/21... -
Page 14: Assembly
(e.g. as per standard DIN EN ISO 4762) and with screw quality 10.9 or 8.8; tightening torque (see Table Tightening torque) [Nm] Tightening torque Size 10.9 Table: Tightening torque ( according VDI 2230 Sheet1, µ=0.12 metric standard thread) Stieber Clutch Page 14/21... -
Page 15: Mounting Example
Risk of injury due to incorrect assembly! Faulty installation and maintenance can cause severe property damage and personal injury. WARNING Installation, maintenance and repair work may only be performed by personnel with the requisite training and expertise. Stieber Clutch Page 15/21... -
Page 16: Disassembly In Case Of Maintenance
Pre-clean the outer race (1) and inner race including cage (8) with a petroleum- based industrial cleaning agent and degrease with an acetone-based cleaning agent Check for damage, wear and cracks (see the testing criteria): Stieber Clutch Page 16/21... -
Page 17: Assembly In Case Of Maintenance When Using Grease Lubrication
Lift up the one-way clutch using suitable lifting gear and push it onto the oiled machine shaft observing the overrun direction of rotation in the process Fasten the one-way clutch axially on the machine shaft Stieber Clutch Page 17/21... -
Page 18: Assembly In Case Of Maintenance When Using Oil Lubrication
Fasten the one-way clutch axially on the machine shaft Center the outer race in the torque-supporting machine element Screw qualities 12.9 must not be used! NOTE Stieber Clutch Page 18/21... -
Page 19: Disassembly
The outer race or inner race can fall down if the transportation lock CAUTION has been removed. Fasten the outer / inner race axially. Procedural steps: Loosen the fastening screws of the outer race (1) Remove the axial retention of the inner race (2) Stieber Clutch Page 19/21... -
Page 20: Disposal
Incorrect or faulty spare parts can cause damage, malfunctions or WARNING total failure as well as impair safety. Therefore: Only use original spare parts from the manufacturer. Procure spare parts only from authorized dealers or from the manufacturer directly. 12 Appendix Stieber Clutch Page 20/21... -
Page 21: Layout Drawing Rsxm31-Rsxm101
M1016E_0 Assembly and maintenance manual 12.1 Layout drawing RSXM31-RSXM101 Stieber Clutch Page 21/21...
