Summary of Contents for Click SG-09N

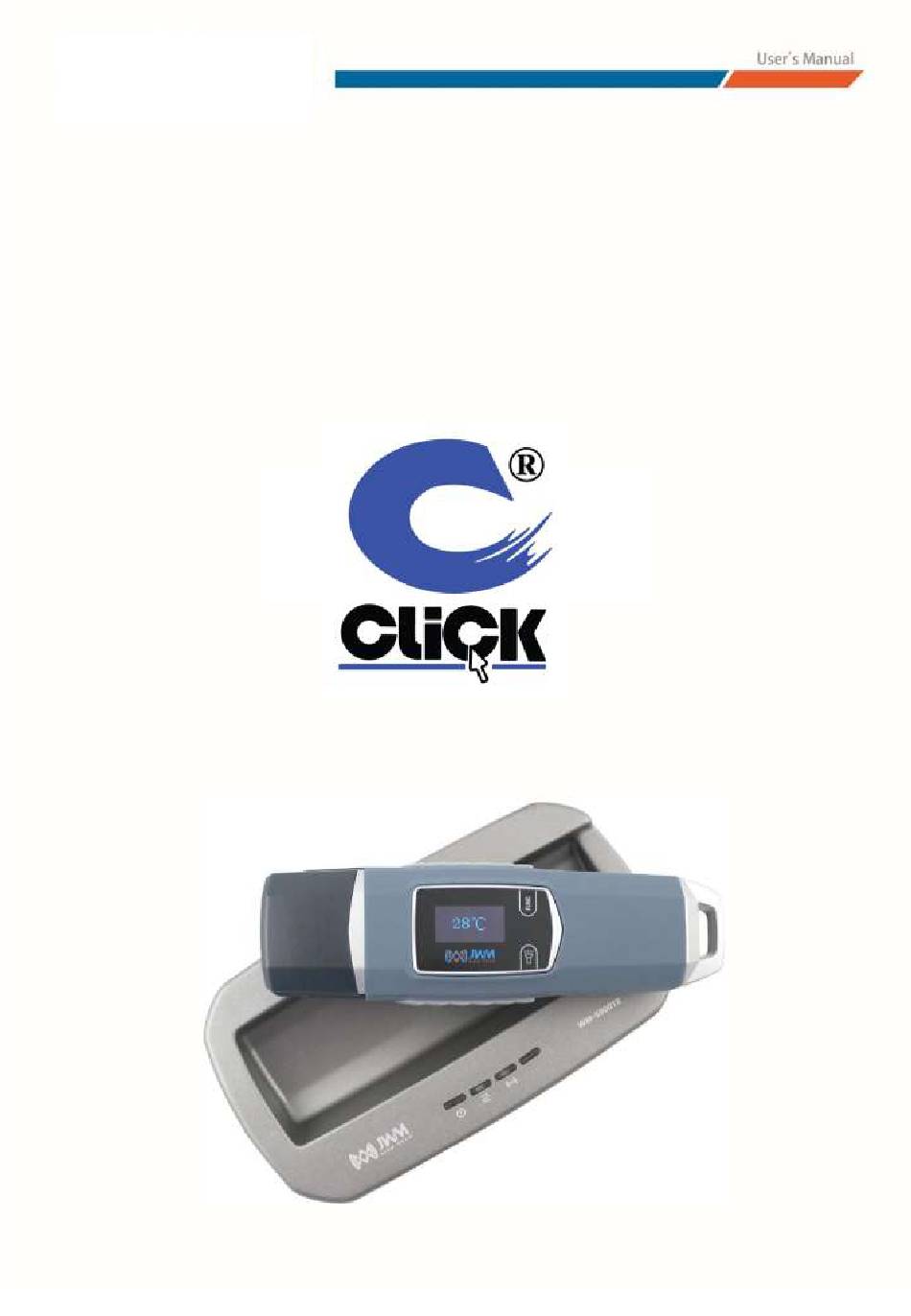

- Page 1 GUARD TOUR MANAGEMENT SYSTEM USER’S MANUAL SG-09N...
- Page 2 SG-09N Guard Tour System User’s Manual 1. What is guard tour system? A guard tour system is a system used to help companies and organizations to organize, log and execute guard tours and patrols in their assets ensuring that the officers will accomplish their tasks within the predefined time intervals.
- Page 3 2. Applications warehouse systems improving rent a car systems monitoring proper service supervising personnel work time and place monitoring scheduled technical maintenance supervising guards supervising service producers supervising drivers monitoring rent systems airport protection and supervising workers hotel protection and supervising workers protection for other public institutions 3.
- Page 4 Working Prompts Reading Successfully 1 vibration and the LED screen shows ”Reading Successfully” and recording time 2.4G Searching 1 vibration and LED Screen shows “2.4G Searching” 2.4G Searching Failed 3 vibrations and LED Screen shows “2.4G Searching Failed， Please researching ” The data is almost full 2 vibrations and the LED screen shows ”Reading Failed, please upload”.
-
Page 5: Technical Information
4. Technical Information Model SG-09N Metal body with silicon shell outside Physical Dimensions 148mm×42mm×34mm 243g Weight RFID Tag reading Frequency 125KHz and 2.4G 125KHz ： 3-5cm Reading Distance 2.4G ≥ 30m -40℃ to +85℃ Operating Temperature 60,000 pieces records Storage Capacity... - Page 6 RFID Tags 5. System Components 1) SG-09N reader 2) Standalone Software 3) Magnetic cable 4) Charger 5) Holster 6) Checkpoint Tags(optional purchase) 7) Guard Tags(optional purchase) 8) T8 Download Station(optional purchase) 9) Event wallet (optional purchase) 10) 2.4G Tags(optional purchase)
-
Page 7: Technical Specifications
Technical Specifications SG-09N Communication Distance ≤10m Reading Distance 1-3cm Communication Speed 5000 records per minute Communication 2.4G+USB (CH341H USB2.0 ) Frequency Range 2400MHz～2483.5MHz Operating Temperature -40℃ to +85℃ Humidity 10% to 90% non-condensing WM-2.4GC Card Number 8 hexadecimal number Battery CR123A-3.0V Disposable Lithium... - Page 8 Working Prompts SG-09N Power on The read light is always on 2.4G Connecting The blue light flashes 2.4G data transferring ,delete The blue light quickly flashes data 2.4G disconnecting The blue light flashes 1 second and 1 beep Searching tags...
- Page 9 “click” feeling... --- Once the red light is blinking, and later it will be keep blinking every 5 seconds, that means the card is on.
- Page 10 2）Start 2.4G function for SG-09N reader --- SG-09N can read both 125Khz card and 2.4G card. --- reader will keep scanning 125K tag at any time since it is alway in "on" situation because this will not take so much power...
- Page 11 6. User Flow 1) Make a sketch of the checking places that the guard needs to check. 2) Install tags on each checking place. *The round shape tag can be stuck or screwed on the wall. *For the cylinder glass tag, make a hole in the wall, and then put it inside and cover it.
- Page 12 7. Warranty Policy (1) All products are strictly tested and qualified before sale. (2) Hardware devices sold by our company are covered by 1 Year parts warranty. (3) During 1 Year warranty period, we will replace or repair units without charge, subject to any problem coming from product itself under ordinary usage condition.
