Summary of Contents for RAKwireless RAK7431

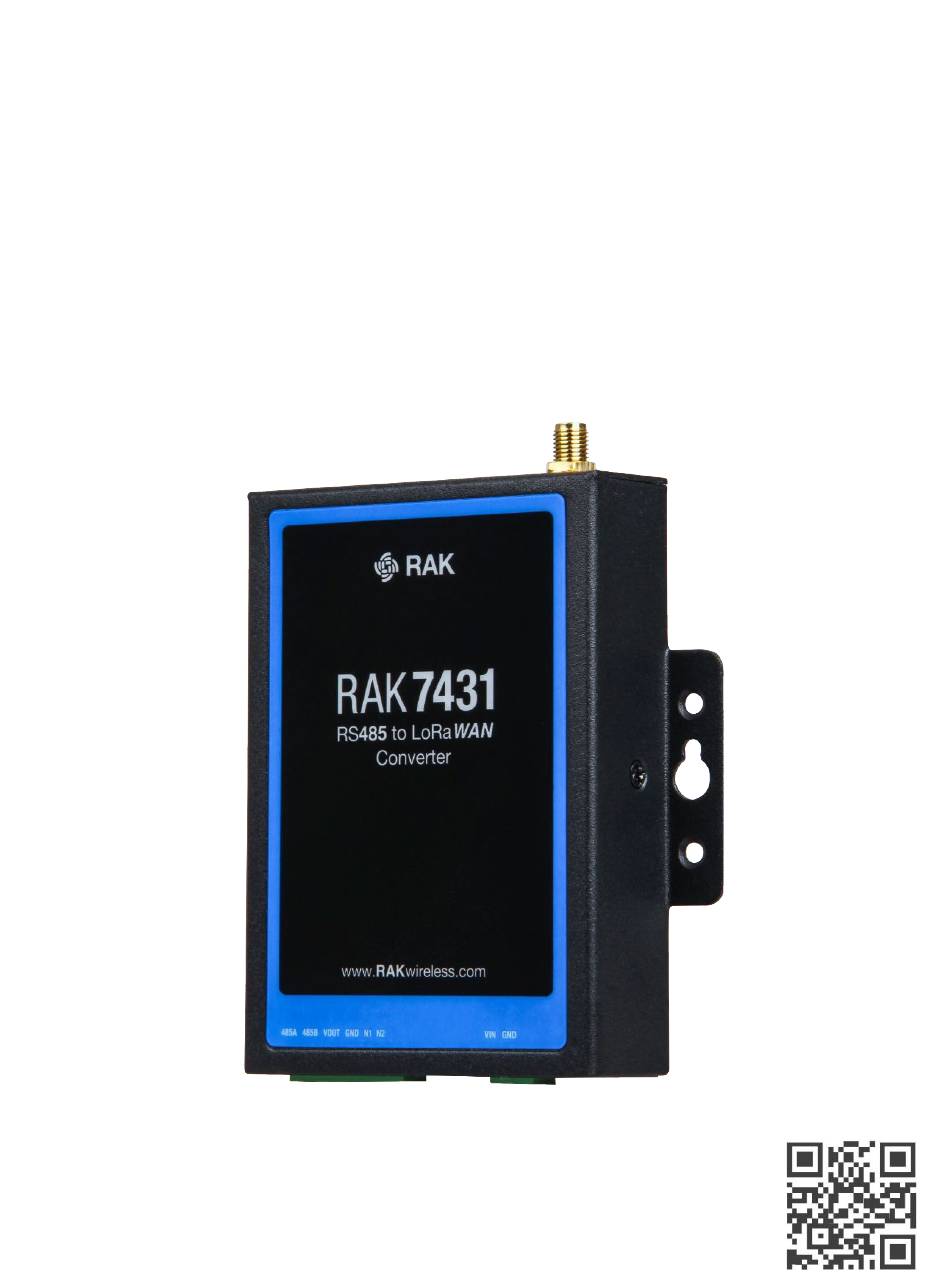

- Page 1 RAK7431 RS485 to LoRaWAN Converter Version V1.2 | January, 2020 www.RAKwireless.com Visit our website for more document.
-
Page 2: Table Of Contents
Table of Contents 1 Overview ..............................3 1.1 Introduction ............................3 1.2 Main Features ..........................4 2 RAK7431 Networking Applications ...................... 5 3 Interfaces ..............................8 4 RAK7431 Specifications ........................10 5 Installation ............................11 6 Revision History ........................... 13... -
Page 3: Overview
The device relays ModBUS data using the LoRaWAN™ network as means of wirelessly transmitting to and from the end devices. RAK7431 can operate in all of the LoRaWAN™ bands within the standard parameters defined by the LoRa® Alliance. Its open environment range is 15+km and in industrial... -
Page 4: Main Features
RAK7431 Main Features LoRaWAN™ 1.0.2 protocol stack, supports Class A & C Working modes: Polling mode, transparent mode and packet mode Remote cloud management of RS485 devices Can address up to 16 RS485, a que with up to 32 instruction sets ... -
Page 5: Rak7431 Networking Applications
RAK7431 RAK7431 Networking Applications RAK7431 can convert the data of RS485 devices into LoRaWAN™ that can be sent to the cloud via a standard LoRaWAN™ Gateway. Cloud servers can also actively send data to RS485 terminals to achieve two-way data transmission. Using RAK7431, what used to be a costly and time-consuming cable line network deployment can be transformed into a rapid and cost-efficient wireless network deployment. - Page 6 RAK7431 RAK7431 can work in polling mode in order to send query instructions to RS485 nodes, and convert the data returned into LoRa® frames to be relayed to the application server via a LoRaWAN™ Gateway. Figure 2 | RAK7431 polling mode RAK7431 can store a maximum of 32 query instructions in polling mode, each of which has a maximum length of 128 bytes.
- Page 7 RAK7431 Figure 3 | RAK7431 transparent mode...
-
Page 8: Interfaces
When connecting to RS485 nodes, please connect 485A and 485B on the data interface of RAK7431 with the A and B lines of the RS485 bus. Connect the GND terminal to the GN line of the RS485 devices The RS485 bus carrying capacity of RAK7431 goes up to 16 RS485 terminals at the same time. - Page 9 RAK7431 Figure 5 | RAK7431 ModBus connection diagram Reset key and indicator LED: Reset Key Press the reset key shortly to restart the system Red LED Power indicator (Only valid when using the USB power) Green LED System working indicator, flashing when there is data transmission...
-
Page 10: Rak7431 Specifications
RAK7431 RAK7431 Specifications Parameter Value Remarks LoRaWAN™ Protocol LoRaWAN™ 1.0.2 LoRa Frequency RU864, IN865, EU868, US915, Different models support different AU915, KR920, KR923 frequency bands LoRaWAN™ Mode Class A / Class C LoRa® Antenna interface SMA MALE, External omnidirectional Antenna... -
Page 11: Installation
RAK7431 Installation RAK7431 allows for three installation methods: wall mounting, DIN rail installation and magnetic mounting. The wall installation and DIN rail installation is the standard installation mode (screw holes). The accessories required for magnetic mounting are optional. Wall mounting... - Page 12 RAK7431 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 13: Revision History
Terry & Vladislav About RAKwireless: RAKwireless is a pioneer in providing innovative and diverse Cellular and LoRaWAN connectivity solutions for both Edge and Gateway IoT devices. We believe that through easy to use and modular designs we can accelerate the time to market for various IoT Applications in order to...
