Relay 003 - 24 V (ac) Coil
Installation & Operation Manual

Introduction

The tekmar Relay 003 - 24 V (ac) is for use
in applications where device operation
requires a voltage that differs from the
control's built-in inputs or outputs. They
can also be used in applications where the
device operation requires a higher current
than the on board relay is rated for.

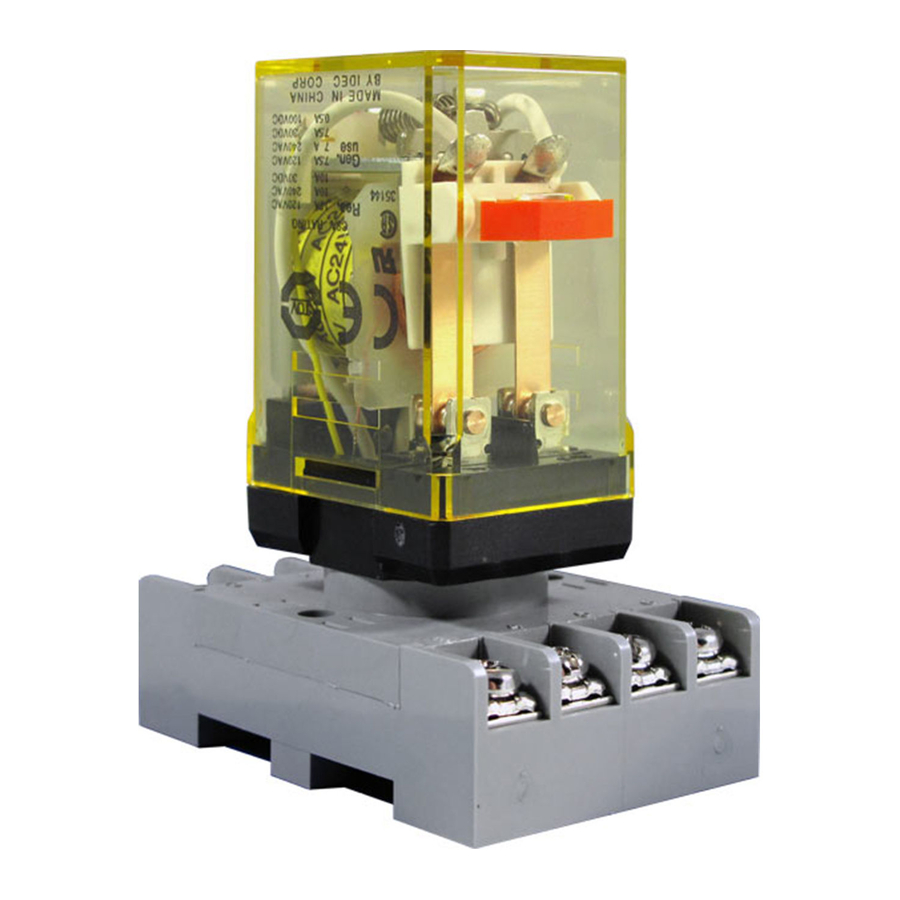

Relay 003 is energized with 24 V (ac)

Features

Test button
Red LED indicator
Pluggable base
Benefi ts
Mounts to TS35 DIN Rail
Pre-wire and test base before
plugging in relay
Replace relay without
disturbing wiring

Note

For 120 V (ac) coil relay see
D004
1 of 4
D003
Accessories
Replaces:01/10
© 2011
D 003 - 05/11
05/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tekmar 003

  • Page 1 Replaces:01/10 Installation & Operation Manual Features Introduction • Test button The tekmar Relay 003 - 24 V (ac) is for use • Red LED indicator in applications where device operation • Pluggable base requires a voltage that differs from the control’s built-in inputs or outputs.
  • Page 2 LED indicator will turn off. Coil with no power Relay Coil NOT POWERED No Power Switching Power In Power Out Switching Power In Power Out Relay Coil NOT POWERED No Power © 2011 D 003 - 05/11 2 of 4...
  • Page 3 “off” the LED will also be off. Application Low voltage thermostat energizes Relay 003 to turn on a 120 V (ac) zone pump. A heat demand is sent to a tekmar control. Thermostat off and not calling for heat.
  • Page 4 (24) months from the production date. The liability of tekmar under the Limited Warranty shall be limited to, at tekmar’s sole discretion: the cost of parts and labor pro- vided by tekmar to repair defects in materials and / or workmanship of the defective product; or to the exchange of the defec- tive product for a warranty replacement product;...
