Disaster Area Designs MIDI Baby Quick Start

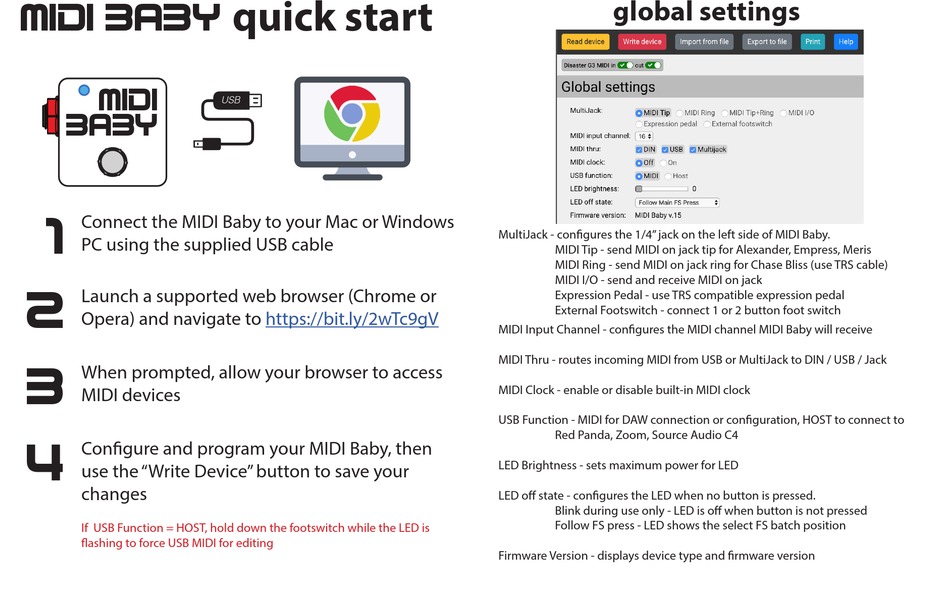

MIDI BABY quick start
MIDI
BABY
Connect the MIDI Baby to your Mac or Windows
1
PC using the supplied USB cable
Launch a supported web browser (Chrome or
2
Opera) and navigate to
When prompted, allow your browser to access
3
MIDI devices
Configure and program your MIDI Baby, then
4
use the "Write Device" button to save your
changes
If USB Function = HOST, hold down the footswitch while the LED is
flashing to force USB MIDI for editing
USB
https://bit.ly/2wTc9gV

global settings

MultiJack - configures the 1/4" jack on the left side of MIDI Baby.
MIDI Tip - send MIDI on jack tip for Alexander, Empress, Meris
MIDI Ring - send MIDI on jack ring for Chase Bliss (use TRS cable)
MIDI I/O - send and receive MIDI on jack
Expression Pedal - use TRS compatible expression pedal
External Footswitch - connect 1 or 2 button foot switch
MIDI Input Channel - configures the MIDI channel MIDI Baby will receive
MIDI Thru - routes incoming MIDI from USB or MultiJack to DIN / USB / Jack
MIDI Clock - enable or disable built-in MIDI clock
USB Function - MIDI for DAW connection or configuration, HOST to connect to
Red Panda, Zoom, Source Audio C4
LED Brightness - sets maximum power for LED
LED off state - configures the LED when no button is pressed.
Blink during use only - LED is off when button is not pressed
Follow FS press - LED shows the select FS batch position
Firmware Version - displays device type and firmware version
