alchemy Pi-UpTime UPS 2.0 Manual

Key Features:
• Provides UPS
functionality for
Raspberry Pi.
• Includes USB-C and a
micro-USB connector
for Power In.
• Use 18650 size Li-
FePO4 or Li-Ion/Li-
Polymer battery –
jumper selectable.
Batteries not included.
• Attach external battery
to solder points
provided using JST,
term-block or solder.
• No reboot when power
fails. UPS power is
provided seamlessly.
• Ideal diode power OR –
minimal heating or
power loss.
• External connection
2
points for I C, input V,
output V and battery.
• Monitor Input, Output,
Battery Voltage and
temperature via ADC
2
using I C. Up to three
2
I C addresses. 3mV
sensitivity. Sample
Python code provided.
• Add power on/off
switch to turn off all
power to Pi. All power,
including UPS power, is
off when switch is off.
Battery charging
continues.
• UPS Power - 5V, 2.5A
and USB. 3.3V, 0.7A

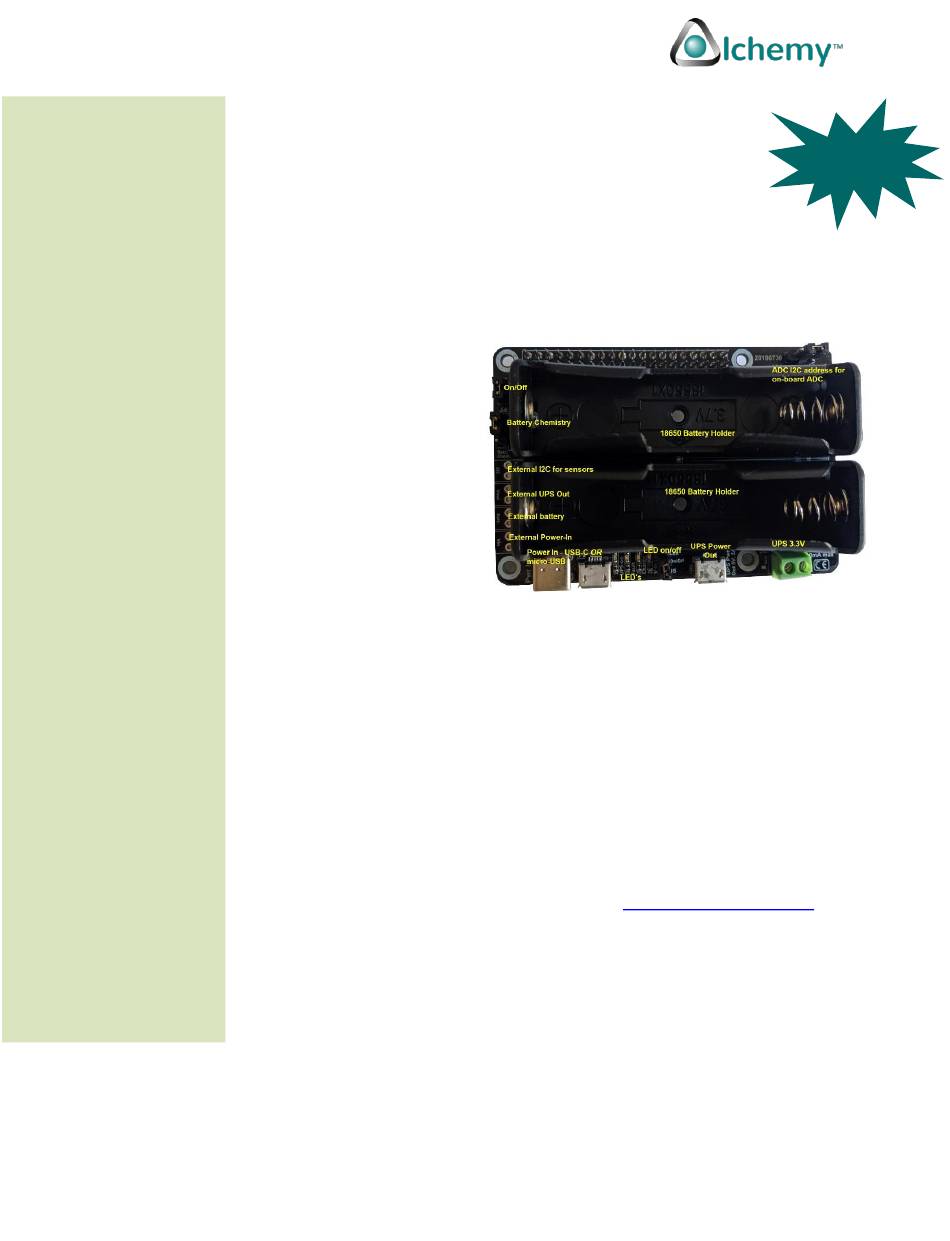

Pi-UpTime UPS 2.0
UPS for Raspberry Pi-4 using Li-
Ion or Li-Phosphate batteries
Pi-UpTime UPS 2.0 is a new
and improved version of the
Pi-UpTime UPS. Pi-UpTime
UPS 2.0 is designed to work
with the Pi-4 or other SBC's,
such as Odroid, Asus, Arduino
etc. Power is supplied via the
40-pin header or via the
micro-USB out port. Powering
the Pi and charging the
battery is done on the Pi-
UpTime UPS 2.0 via a USB-C
or a micro-USB connector.
Only one connector can be
used at any time for power.
The micro-USB connector is provided for backward compatibility. The Pi-UpTime 2.0
has the same dimensions as a Pi-4 (or Pi2, Pi3, etc.) and can be mounted securely on
a Raspberry Pi using 20 mm spacers for a compact, mechanically secure connection.
An on-board 12-bit ADC monitors Vin, Vout and battery Voltage for accurate
information on operating conditions. Temperature sensor below the battery provides
accurate battery temperature information. Battery charging takes place between 0
o
and 50 C. No GPIO connections or GPIO monitoring is needed. ADC provides
2
information via the I C. Up to three different I
J11, J12 to avoid conflict with other I
monitoring system parameters and shutdown the system when power fails, and
battery is low. Sample code can be downloaded from
External connections, via solder points, are available for I
The connections can be accessed via 2.54mm (100 mil) terminal blocks or by direct
soldering. Terminal blocks are not included. External sensors or external controllers
such as an Arduino controllers or other embedded micro-controllers can tie into the
2
I C connection.
Pi-Z-UpTime UPS 2.0. See pictures enclosed in data
sheet for additional information.
2
C address can be selected via jumpers
2
C devices. Sample python code is provided for
www.alchemy-power.com
2
C, Vin, Battery and Vout.
© 2019 Alchemy Power Inc.
All information subject to change without notice.
