Summary of Contents for Gemalto Cinterion PLS62-W

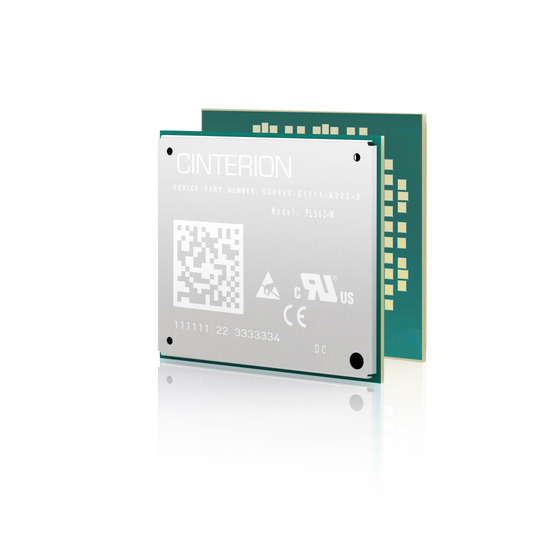

- Page 1 ® Getting Started with Cinterion PLS62-W User Guide Version: 01 DocId: PLS62-W_startup_guide_v01 GEMALTO.COM/M2M...
- Page 2 Copyright © 2018, Gemalto M2M GmbH, a Gemalto Company Trademark Notice Gemalto, the Gemalto logo, are trademarks and service marks of Gemalto and are registered in certain countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corpora- tion in the United States and/or other countries.
-
Page 3: Table Of Contents
® Getting Started with Cinterion PLS62-W Page 3 of 17 Contents Contents Document History ...................... 4 Introduction ......................... 5 Supported Products ................... 5 Related Documents ................... 6 Getting Started with PLS62-W ................... 7 Technical Requirements for Using PLS62-W Modules ........7 Connecting the PLS62-W Evaluation Module to the DSB75 ...... -
Page 4: Document History
® Getting Started with Cinterion PLS62-W Page 4 of 17 0 Document History Document History ® New document: "Getting Started with Cinterion PLS62-W“ Version 01 Chapter What is new Initial document setup. PLS62-W_startup_guide_v01 2018-05-17 Confidential / Released... -
Page 5: Introduction
Note: The hardware components listed above as part of a development and test environment are also mentioned in as part of the comprehensive reference equipment used by Gemalto M2M for type approval. For general development and test purposes however, there is alterna-... -
Page 6: Related Documents
® Getting Started with Cinterion PLS62-W Page 6 of 17 1.2 Related Documents Related Documents PLS62-W AT Command Set PLS62-W Hardware Interface Description DSB75 Development Support Board Hardware Interface Description Java User‘s Guide DSB-Mini User Guide Starter Kit B80 User Guide PLS62-W_startup_guide_v01 2018-05-17 ... -
Page 7: Getting Started With Pls62-W
- RS-232 cables for the module's asynchronous serial interfaces ASC0 and ASC1 (not supplied by Gemalto M2M) - USB cable with mini-USB plug (not supplied by Gemalto M2M) • Appropriate application for controlling the module from within a PC’s operating system. For Windows, e.g. -
Page 8: Connecting The Pls62-W Evaluation Module To The Dsb75
® Getting Started with Cinterion PLS62-W Page 8 of 17 2.2 Connecting the PLS62-W Evaluation Module to the DSB75 Connecting the PLS62-W Evaluation Module to the DSB75 To properly connect the PLS62-W evaluation module and all accessories to the DSB75 please complete the steps listed below. - Page 9 ® Getting Started with Cinterion PLS62-W Page 9 of 17 2.2 Connecting the PLS62-W Evaluation Module to the DSB75 X202 X201 X205 X110 X401 X400 1 4 2 3 X 203 X120 S112 DSB75 X121 S467 S464 S453 S110 S 463 S462 S 452 S 457...
- Page 10 ® Getting Started with Cinterion PLS62-W Page 10 of 17 2.2 Connecting the PLS62-W Evaluation Module to the DSB75 RS-232 cable at RS-232 cable at Power supply 50 Ohms COM1 (X201) for COM2 (X202) for (X400/X401) GSM/UMTS/LTE ASC0 ASC1 main antenna Antenna cables U.FL -R SMT connector (X350/X391) linking U.FL...
-
Page 11: Start Up The Module
Note: If the USB interface is to be employed, the USB drivers provided by Gemalto M2M need to be available. Copy the supplied driver files to a folder on the Windows computer. Be sure to use the latest USB driver software supplied by Gemalto M2M. - Page 12 ® Getting Started with Cinterion PLS62-W Page 12 of 17 2.3 Start Up the Module • To connect to the PLS62-W evaluation module via USB interface, check the properties of the enumerated USB devices for the configured COM ports, for example the "Cinterion PLSx USB Modem", call a terminal program on the PC and connect to the configured COM port.
-
Page 13: Appendix: Dsb75 Adapter
® Getting Started with Cinterion PLS62-W Page 13 of 17 3 Appendix: DSB75 Adapter Appendix: DSB75 Adapter The PLS62-W Evaluation Module connects to the 80-pin board-to-board connector X120 on top of the DSB75 Adapter. The 2x40-pin header X101/X102 of the DSB75 Support Board con- nects to the 80-pin female connector X135 located on the back of the DSB75 Adapter. - Page 14 ® Getting Started with Cinterion PLS62-W Page 14 of 17 3 Appendix: DSB75 Adapter X135 X305 ADC1_AD X320 X321 X322 Do not use Do not use V180 Do not use BATT+ Pogo AGND pins VMIC Do not use X317 X318 X319 X308 X309...
-
Page 15: Appendix: Circuit Diagrams For Evaluation Module Board
® Getting Started with Cinterion PLS62-W Page 15 of 17 4 Appendix: Circuit Diagrams for Evaluation Module Board Appendix: Circuit Diagrams for Evaluation Module Board VSIM_I VSIM VSIM2_I VSIM2 R106 R111 LGA-CONNECTOR 4 k 7 4 k 7 TP_DRX_GND1 p r i n t e d p a r t R107 R112 TP_ANT_DRX... - Page 16 ® Getting Started with Cinterion PLS62-W Page 16 of 17 4 Appendix: Circuit Diagrams for Evaluation Module Board BATT+_DSB ESDA6V1-5P6 ESDA6V1-5P6 X201 2 2 p VSIM 1 2 0 R C200 V180 L 2 0 2 VSIM2 R234 CCCLK V200 V201 RING0/GPIO24 R235...
- Page 17 About Gemalto Since 1996, Gemalto has been pioneering groundbreaking M2M and IoT products that keep our customers on the leading edge of innovation. ® We work closely with global mobile network operators to ensure that Cinterion modules evolve in sync with wireless networks, providing a seamless migration path to protect your IoT technology investment.
