BG-AVTPG-MINI
HDMI 2.0a Installation Gear
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-AVTPG-MINI and is the answer not in the manual?

Questions and answers

Summary of Contents for BZB Gear BG-AVTPG-MINI

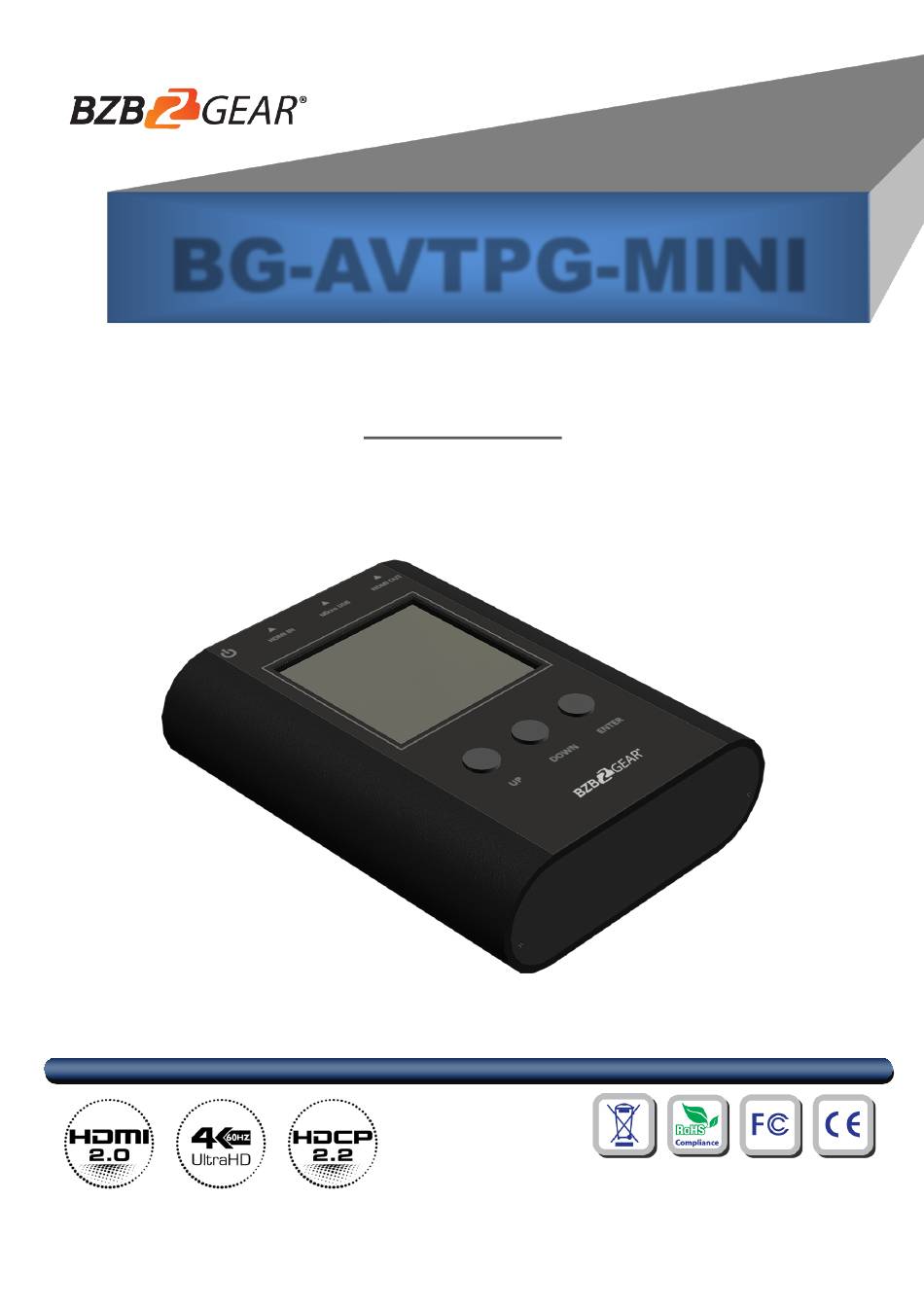

  • Page 1 BG-AVTPG-MINI HDMI 2.0a Installation Gear User Manual...
  • Page 2: Table Of Contents

    However, like all electronic equipment, the BG-AVTPG-MINI should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    HDMI signals, detect important HDMI features, and examine cable quality. With the help of BG-AVTPG-MINI, installer can easily and quickly setup up and setup HDMI equipment in seconds.
  • Page 4: Specifications

    SPECIFICATIONS Model Name BG-AVTPG-MINI Technical Role of usage HDMI 2.0a Installation Gear Video bandwidth Single link 600MHz [18Gbps] HDMI compliance HDMI 2.0 and below HDCP compliance HDCP 2.2 and below Video Support up to 4K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR) ESD protection Human body model —...
  • Page 5: Connection Diagram

    CONNECTION DIAGRAM...
  • Page 6: Panel Descriptions

    BG-AVTPG-MINI will automatically enter battery saving mode after 1 minute idle. During battery saving mode, if user would like to get BG-AVTPG-MINI back to work, please push any button. Notice that when plugging in an active HDMI input, BG-AVTPG-MINI will NOT enter battery saving mode.
  • Page 7: Menu Operation

    MENU OPERATION Menu Items Remark Resolution Color space Color depth SOURCE MODE HDCP provide three test patterns for user to use Pattern (Ramp, Toggle, Color Bar) Resolution Color space Color depth read the HDMI information from input SINK MODE source HDCP AUDIO EDID...
  • Page 8: Operation Approach

    OPERATION APPROACH Source Mode When BG-AVTPG-MINI is treated as a source, it can generate different test patterns to the display under test. How to run Source Mode: Ø Make sure the connection between the BG-AVTPG-MINI HDMI output port and the display.
  • Page 9 Sink Mode When BG-AVTPG-MINI is in sink mode, it can read the HDMI source’s information and in addition, the input HDMI can be passed through to HDMI capable display if needed (as shown below). How to run Sink Mode: Connect the BG-AVTPG-MINI between HDMI source and HDMI display.
  • Page 10 Use buttons to select MODE category and enter CABLE mode. Ø Keep pressing ENTER button for about 5 seconds to start the link test. The BG-AVTPG-MINI will evaluate the HDMI signal quality based on HDMI 2.0 specification and provide a result, PASS or NG.
  • Page 11: Warranty

    WARRANTY BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1.
