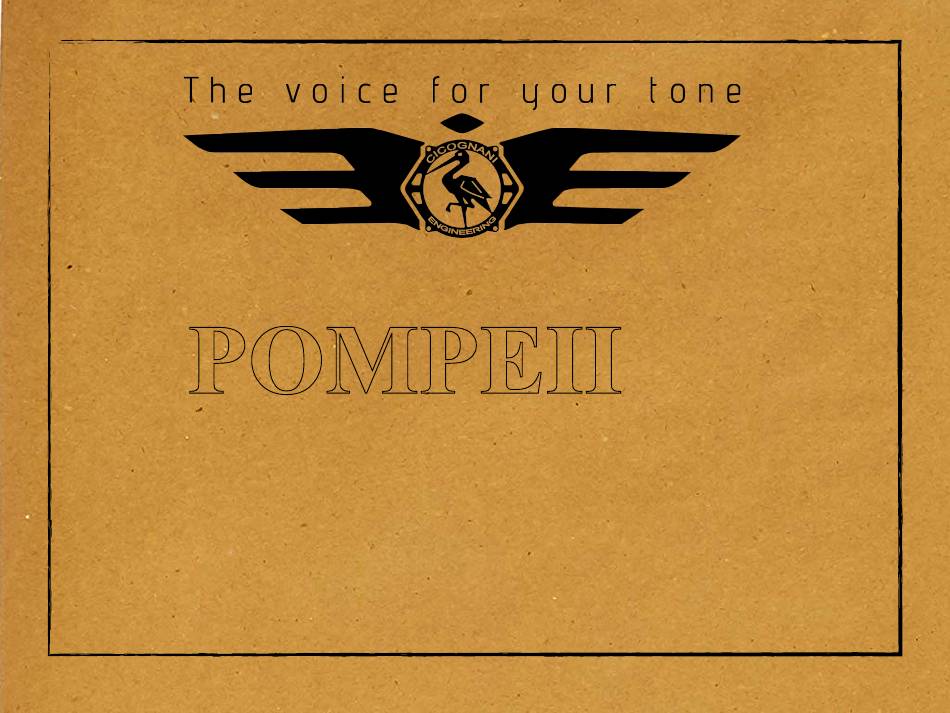

- Page 1 FOUR HEAD SONIC ECHO User’s manual...
- Page 2 POMPEII PE603 Model Cicognani engineering like to congratulate you on your purchase of your new Pompeii PE603. It is one of most advanced Echo unit ever created. We hope this would help your creativity and better your sound. The Glorious Old Italian Echo at the today time.
- Page 3 A Bit of Echo History The Italian Echo Units were produced by the famous Italian company in Milan since the 60s. They were soon appreciated all over the world and used by many artists including: Pink Floyd, Led Zeppelin, The Shadows, etc. Even today it is much appreciated.
- Page 4 The Echosex 2°, Echosex 2°LTD, Echosex T7E and Echofet Baby projects, conceived by Guglielmo of Cicognani engineering factory, have been appreciated worldwide receiving many awards. With POMPEII PE603, we have recreated the sonic details of the old historic Italian echo while preserving the most important principles. ...
- Page 5 Andrea Cicognani Head of Design Pompeii PE603 was born to celebrate the 25th Anniversary of Cicognani engineering. Unlike the LTD of the 20th Anniversary it will not imited edition but guaranteed the production in Italy. be built in a l The front panel is made of PMMA and personally designed by me.
- Page 6 The hammered silver paint is made by artisans as it used to be. These paints in the past were used in Italy on industrial machines because more resistant than the standard ones. This means that each product, while maintaining a similar appearance, cannot be the same as the other, since the particular "hammered"...
- Page 7 The Guru’s Advice 1) Connect the main power to 12Vdc (min 500mA). Make sure the power supply is negative tip. 2) Connect the “Output” to the amplifier “Input”. 3) Connect the “Input” to the instrument. 4) Set the “Input Volume”. The input volume is displayed by "Input Level" and can be adjusted from super clean to overdrive.
- Page 8 One example in Rep. mode: If you select the “5 position” switch, call together the fourth and third heads, it will mean the 4th Head considered as an 8th note, and 3rd head is equal to a dotted 8th. If you use the “varispeed” you can keep the synchronism by increasing the delay time over 100%.

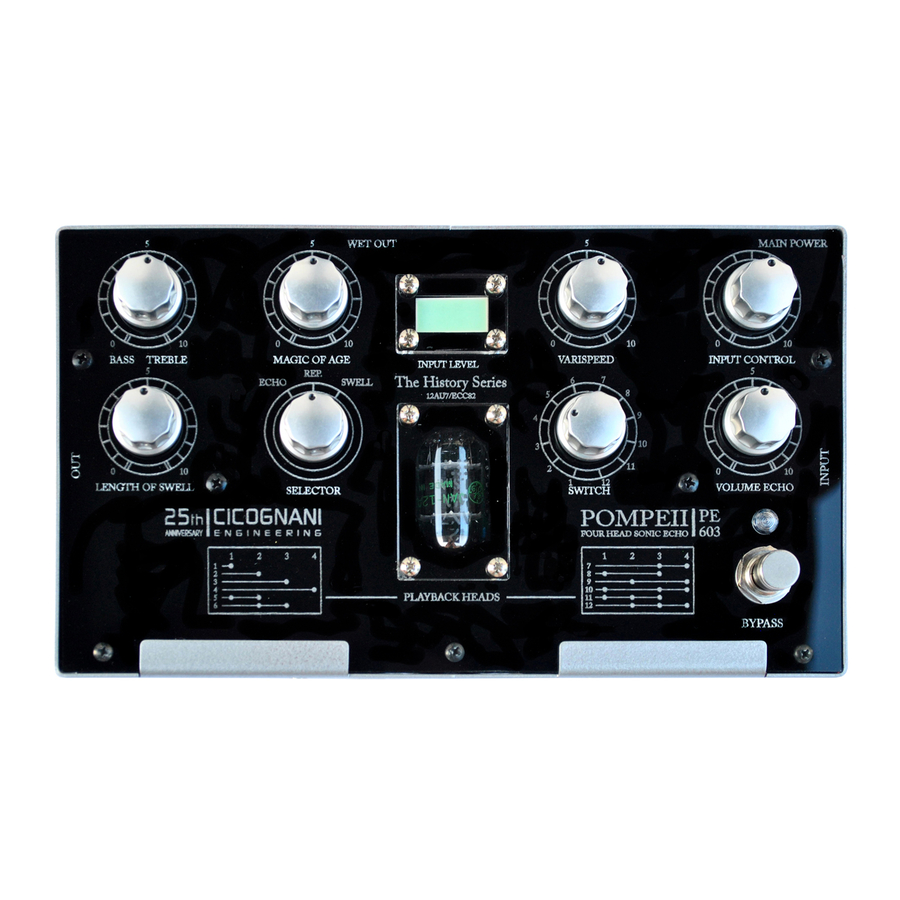

- Page 9 Controls:...
- Page 10 1) Main Power: DC plug 5,5 x 2,1mm. 12Vdc min. 350mA (0,35A) - suggested 12Vdc 500mA. 2) Instrument Input: Standard 1/4” (6,3mm.) mono jack. 3) Out: Standard 1/4” (6,3mm.) mono jack. 4) Wet-Out: Unbalanced Lo Z 100% effect out. Standard 1/4” (6,3mm.) mono jack able to connect to mixing consoles.
- Page 11 Combinations Playback Heads: HEAD 1 HEAD 2 HEAD 3 HEAD 4 74 > 148mS 148 > 296mS 222 > 444mS 296 > 592mS...
-
Page 12: Technical Details
Italian echo. The feedback generated by Pompeii PE603 returns in the style of the award-winning LTD model in order to favor those beautiful sound carpets often used in the past to compose the most beautiful arpeggios and psychedelic sounds. -
Page 13: Block Diagram
Block Diagram: The diagram 1 represents the principle mode of the function selector (Echo- Rep. - Swell) and the head selector. It must be considered that the latter works in relays interfacing to provide a quieter commutation. Block diagram 1... - Page 14 The diagram 2 is the complete operating system. As you can see the valve returns to be used both on the input and output stage, with great benefits on the sound. The dynamics of the signal was more high, thanks to the voltage doubler, which in this way allows not to saturate the input in combination with a big signals.
- Page 15 Input Instruments Connection: To the Input you can use many different instrument lo and hi impedance as: Guitar, bass, mic preamplifier, keyboards, etc. The input control must be adjusted so that you can use the right amount of signal. The input level (magic eye) will help you understand how to adjust the levels.
- Page 16 The Pompeii PE603 can be used with different types of instruments with output signals max 1Vpp and high or low impedances.The Old Italian echo was used as the main PA effect and shortly thereafter along with many instruments of the band. Today Pompeii wants to retrace those steps by offering wider compatibility even with the most modern instruments.
- Page 17 The Echo in Front the Amp: The use of the echo in front of the amplifier is one of the most classic configurations. Thanks to a powerful input and output buffer we can send a good and clean signal to the amplifier. The use of good quality cables is always recommended.If you use Fuzz, Od.
- Page 18 The Echo in Loop Effects:...
- Page 19 The Echo in a Mixing Console...
- Page 20 Special feature and function: The “Pompeii tube” is a 12AU7/ECC82 it guarantees a good duration and linearity. However, it can also be replaced with 12AX7/ECC83 On the underside of the pedal it is easy to see a small window where a jumper is housed. Removing this switch activates the "tail fx"...
-
Page 21: Terms Of Warranty
Responsibility of Cicognani Engineering for any defective product is limited to repair or replacement of the product at our discretion.The Cicognani Engineering not be liable for damages resulting from loss of use of the product, lost time operation interrupted by non-use of the product, loss of business or any other damages or incidental, consequential or otherwise;... - Page 22 Cicognani Engineering reserves the right to change technical features or look of his products in any moment without notice. This product is pursuant to European Directives 89/366EEC Cicognani Engineering Via Faentina, 44 - 48013 Brisighella (RA) Italy Internet: www.cicognani.eu Mail: sales@cicognani.eu ...
