BoomTschak User's Guide
Audio Damage, Inc.
1 November 2016
The information in this document is subject to change without notice and does not represent a
commitment on the part of Audio Damage, Inc. No part of this publication may be copied,
reproduced or otherwise transmitted or recorded, for any purpose, without prior written
permission by Audio Damage, Inc.
© 2016 Audio Damage, Inc. All rights reserved.
Advertisement
Table of Contents
Summary of Contents for Audio Damage BoomTschak
- Page 1 The information in this document is subject to change without notice and does not represent a commitment on the part of Audio Damage, Inc. No part of this publication may be copied, reproduced or otherwise transmitted or recorded, for any purpose, without prior written permission by Audio Damage, Inc.
-
Page 2: Brief Overview

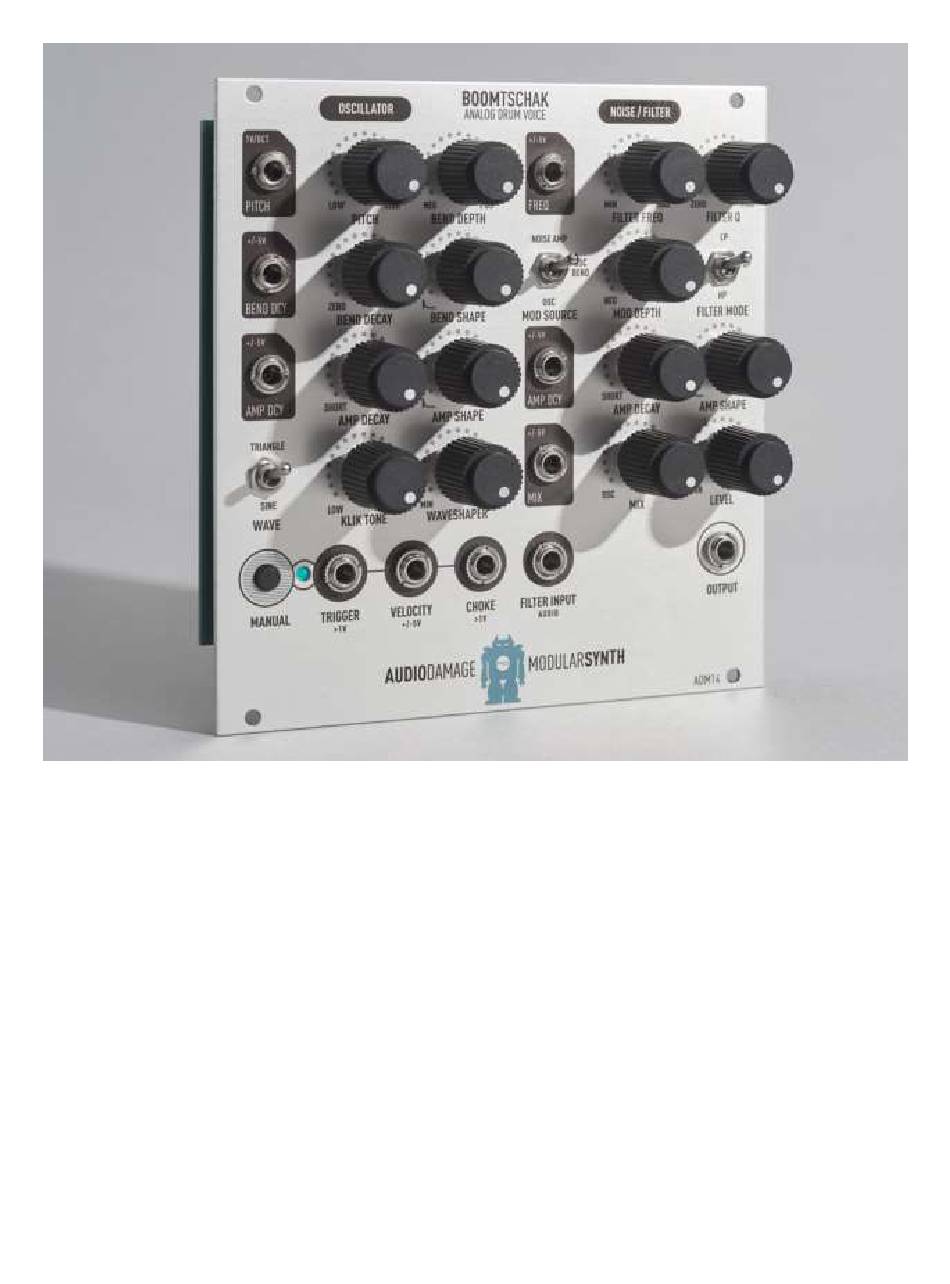

Below is an image of its panel and a description of the controls. This summary will cover just about everything that you need to know to use BoomTschak, but after this summary we’ll provide more detailed descriptions and some background information. - Page 3 VCO have roughly equal loudness. Rotate the knob counter-clockwise to hear more of the VCO, rotate it clockwise to hear more noise. – sets the overall output level of the module. Button – press this to trigger the module manually. Use it while setting BoomTschak’s knobs or for live improvisation.
-
Page 4: Detailed Description
In this vein, BoomTschak has two sources of sound signals: an oscillator and a filtered noise generator. These two signals are mixed together to produce BoomTschak’s output. -
Page 5: Pitch Modulation
2.1.2. Pitch Modulation BoomTschak’s BEND DECAY and BEND SHAPE knobs control an envelope generator which varies the pitch of the oscillator. The pitch of many real-world drums starts slightly sharp and bends downward as the sound fades. A few percussion instruments, such as tablas, can be made to bend upwards in pitch. - Page 6 Setting the filter’s frequency with its panel knob allows you to change the timbre of BoomTschak’s noise source (or that of an external signal). That frequency can be changed, or modulated, by one of several signals while BoomTschak plays, imparting some motion to the timbre.
-
Page 7: Envelope Generators
2.2.2. External Filter Input As mentioned above, plugging something into the Filter Input jack disables BoomTschak’s noise source and passes whatever you plug in into the filter. You can, for example, plug your favorite oscillator into this jack and create a simple but quite respectable bass synth using BoomTschak’s filter and accompanying EG and VCA, maybe mixing in some of BoomTshak’s... -
Page 8: Output Controls
The TRIGGER jack makes BoomTschak make sound. The most appropriate signal for this input is a pulse that rises from 0v to +5V or higher, and lasts around 5msec or longer. BoomTschak will trigger on pulses with a lower peak level, but you’ll hear differences in its sound which may or may not be useful. - Page 9 3. And Finally… Thank you for purchasing BoomTschak. We make every effort to ensure your satisfaction with our products, and want you to be happy with your purchase. Please write to us at info@audiodamage.com if you have any questions or comments.
