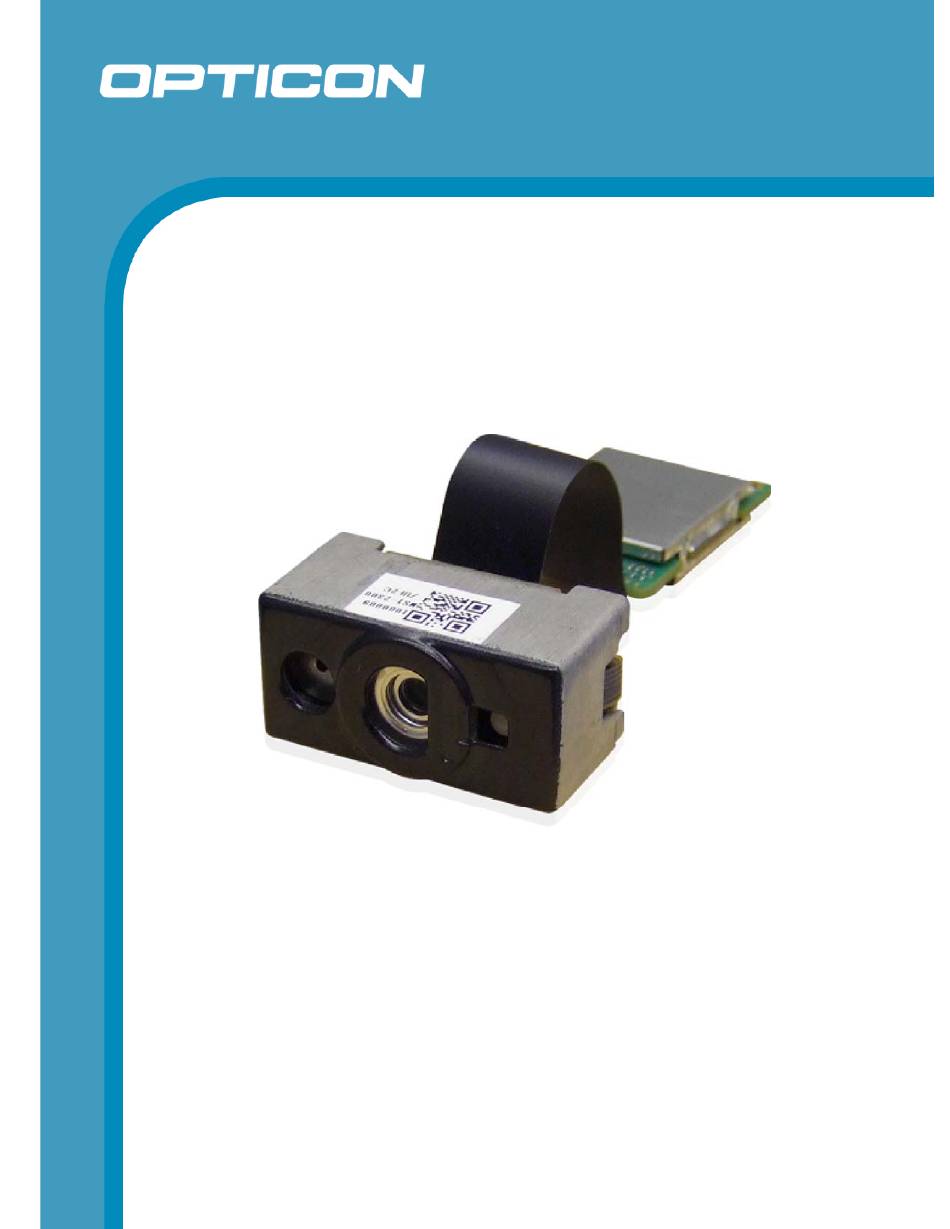

- Page 1 Auto Focus 2D Scan Engine MDI-2300 This document provides instructions for installing the MSI-2300 camera module and the MDI-2300 Integration Guide decoder board.
- Page 2 PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
- Page 3 MDI-2300 Integration Guide Revision History Specification No. : SS10031 Product name : MDI-2300 Edition Date Page Section Description of Changes 2010/08/10 Initial release Added the description ‘Do not bend 2010/11/01 7.3. FPC here’ to the drawing. 2011/12/15 4. EMC measures...
-
Page 4: Table Of Contents
MDI-2300 Integration Guide Contents 1. Introduction ..........................5 2. Exit Window Material and Placement ..................5 3. Installation ...........................8 4. EMC measures ..........................8 5. Cable Specifications ........................9 5.1. Connection between Camera Module and Decoder Board ..........9 5.2. Connection between Decoder Board and Host System .............10 6. -
Page 5: Introduction
1. Introduction The MDI-2300 CMOS two-dimensional scan engine consists of MSI-2300 camera module (hereafter called “camera module”) and a decoder board developed specifically for the MDI-2300 (hereafter called “decoder board”). This guide provides instructions for installing the camera module and the decoder board. - Page 6 MDI-2300 Integration Guide The exit window must be positioned to accommodate limitations of distance and inclination. Design the layout within the range specified in the following diagram and associated table. [mm] Θcw [deg] >6° >9.5° >20° >25° >25° >30° >30°...
- Page 7 MDI-2300 Integration Guide Window size and optical path clearance: With respect to the optical path depicted below, provide an exit window with sufficient clearance. Install the window with sufficient clearance for FOV, Illumination, Laser Aiming.
-
Page 8: Installation
MDI-2300 Integration Guide 3. Installation When installing a camera module, use the crew holes on the bottom surface. Do not screw down further than the specified depth. When installing a camera module, only the bottom surface of the camera module should be attached to a chassis for installation. -
Page 9: Cable Specifications
MDI-2300 Integration Guide 5. Cable Specifications 5.1. Connection between Camera Module and Decoder Board Recommended Connector Camera module side : HIROSE FH29B-34S-0.2SHW(05) Decoder board side : HIROSE FH35-33S-0.3SH Note: These drawings are subject to change. For details, please obtain the most recent drawings from the connector manufacturer (Hirose). -
Page 10: Connection Between Decoder Board And Host System
MDI-2300 Integration Guide 5.2. Connection between Decoder Board and Host System Recommended connector : HIROSE FH19SC-17S-0.5SH (17-pin) Recommended cable length : 70mm (max) -
Page 11: Handling Requirements
Do not touch the electronic components or the terminals on the circuit board. Installation in a clean environment is recommended in order to protect the imaging lens from dust. Operators should wear gloves to avoid contaminating the optical elements. Do not drop the MDI-2300. -
Page 12: Mechanical Drawings
MDI-2300 Integration Guide 7. Mechanical Drawings 7.1. Camera Module... -
Page 13: Decoder Board
MDI-2300 Integration Guide 7.2. Decoder Board 7.3.
