Chaos Matrix
Introduction

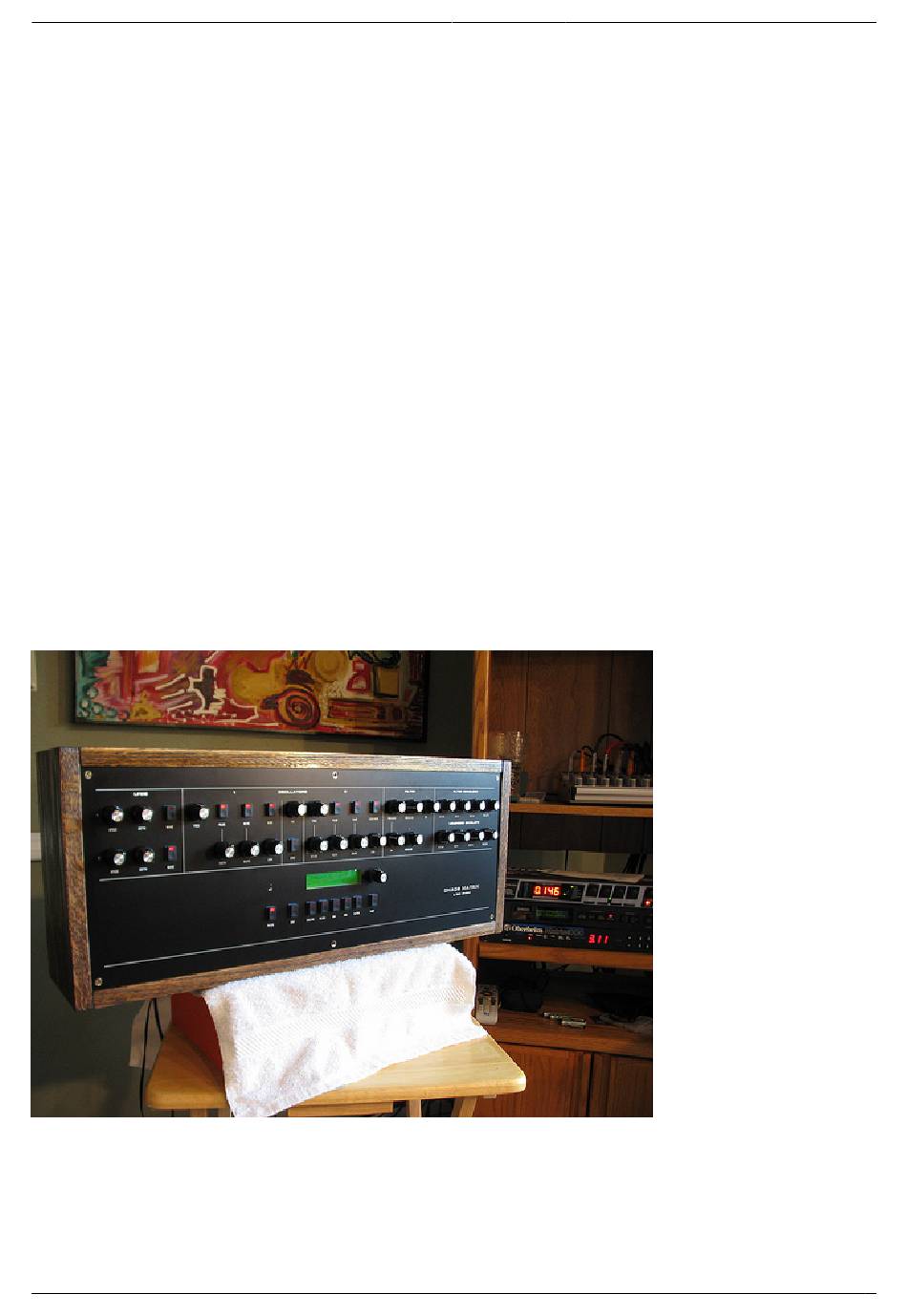

Chaos Matrix is a programmer for an Oberheim Matrix 1000 analog synthesizer built by
Manderson. It's capable of manipulating all 126 voice parameters including 10 programmable matrix
modulations buses, ramp generators, 5 point tracking generator, 3 five stage envelopes, 2 oscillators,
2 LFOs, and much more.
It features edit buffer synchronization for visual feedback and inspection of all Matrix 1000 voices
parameters, patch compare, patch init, advanced performance options for some parameters as well
as containing all 1000 original patch names. Seeing patch names instead of numbers alone, makes it
a lot easier to remember your favorites.
Chaos Matrix was completed in March 2010 after installing the MIDI Merger unit, and building a rear
panel with jacks power plug and switch. It was built with help from the MBHP (MidiBox Hardware
Project) using the MIOS operating system. It uses 1 DIN module, 1 AIN module, 1 DOUT module and 1
core with a PIC18F4620 microprocessor along with a custom application built with the C skeleton
interface. The internals of a MIDI-MAN MIDI Merger 2×2 were used to provide the 2 MIDI input
merging.
Forum announcement here:
MIDIbox - http://wiki.midibox.org/
Choas MAtrix Announcement
1/11
Chaos Matrix
Patrick
