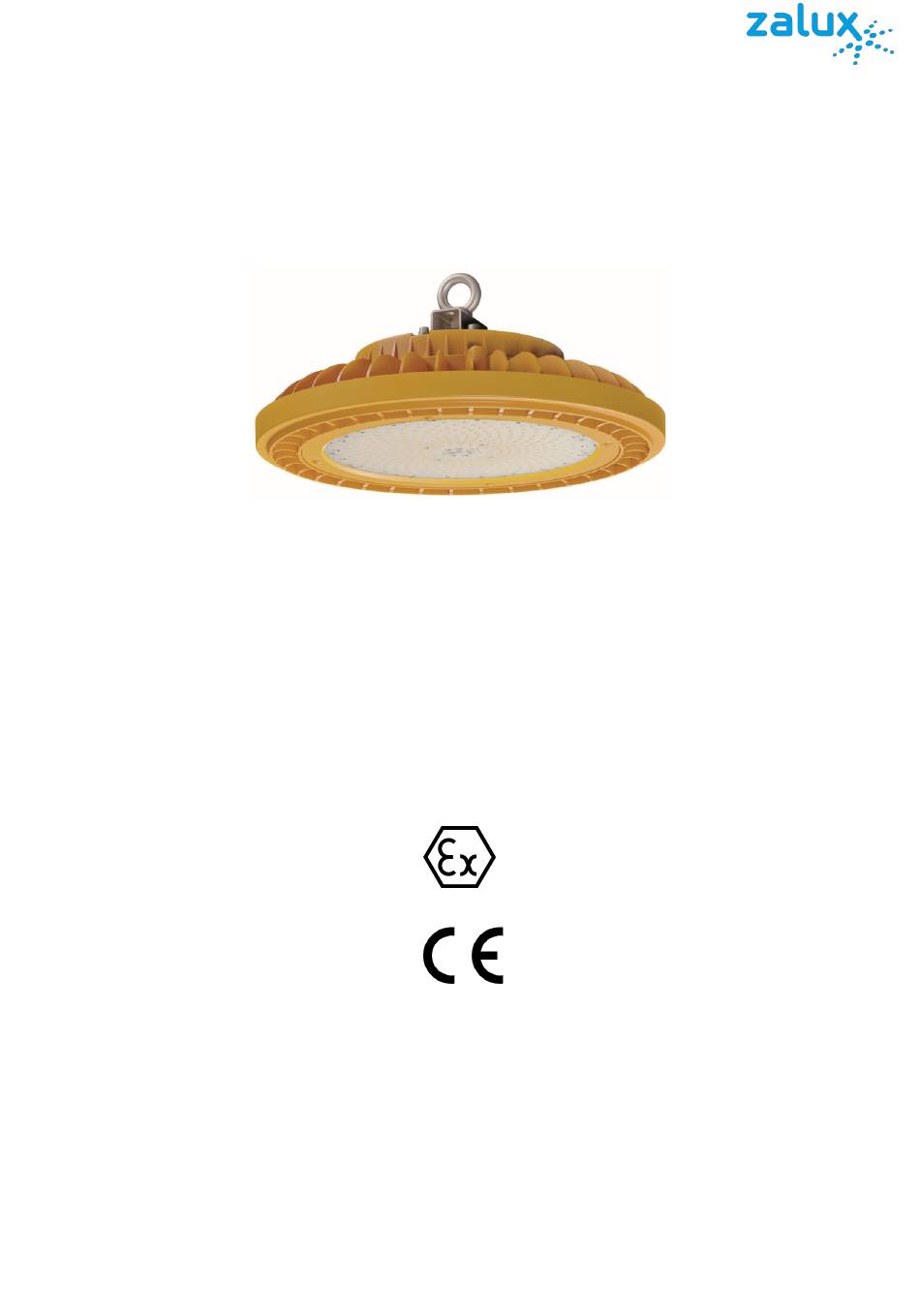

- Page 1 USER'S MANUAL Explosion-proof LED luminaire Type OREX 1 No. 52-1200/Z Cieszyn, January 2020 ZALUX, S.A. Avenida Manuel Rodríguez Ayuso, 114. Centro Empresarial Miralbueno. Planta 1a, Local P-2, 50012, Zaragoza, Spain | +34 976 46 22 00 | info@zalux.com | www.zalux.com...
- Page 2 User's manual OREX 1 luminaire No. 52-1200/Z TABLE OF CONTENTS: 1. INTRODUCTION ........................ 2 1.1. Intended use ......................2 1.2. Functional properties ....................2 2. DESIGN ..........................2 3. TECHNICAL DATA ......................2 3.1. Version types summary ....................3 4. INSTALLATION, MOUNTING, DISASSEMBLING ............... 3 5.

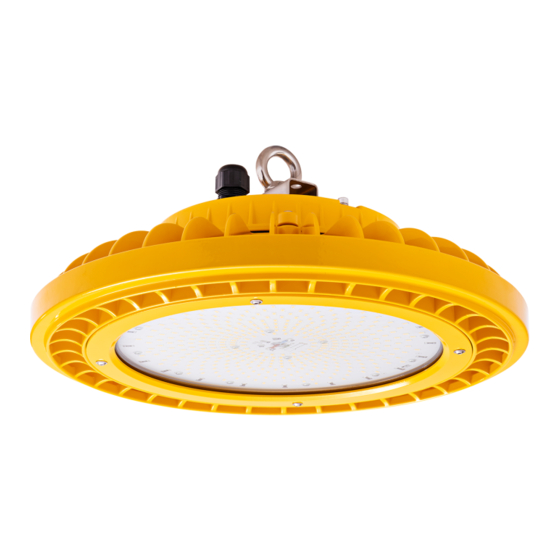

- Page 3 1.1. Intended use The subject of this manual is an explosion-proof LED luminaire of an OREX 1 type, which is characterised by high luminous flux and power of up to 160 W. It is a compact light source with ultra- bright LEDs installed for high intensity of lighting from high heights.
- Page 4 User's manual OREX 1 luminaire No. 52-1200/Z 3.1. Version types summary Order Optional Optional Power Weight Luminous flux Zone code code code [kg] [lm] ../121 OREX 1/60 7,960 OREX 1/80 10,200 ../M25 Max. OREX 1/100 ../10 V 12,520 ../R90 or ../121...
- Page 5 User's manual OREX 1 luminaire No. 52-1200/Z 5. Maintenance and repairs The design of the luminaire makes it possible to replace the light source and power supply unit (except for the version for zone 1), which should be carried out by an authorised service. The lifetime of the light source and LEDs depends on the ambient temperature of the luminaire and its power.
- Page 6 User's manual OREX 1 luminaire No. 52-1200/Z 7.4. Recycling and disposal The symbol of a crossed-out waste container that appears on a product indicates that it is subject to the provisions of European Directive 2012/19/EU (WEEE) and the Waste Electrical and Electronic Equipment Act (Journal of Laws of 2015, item 1688 as amended).
