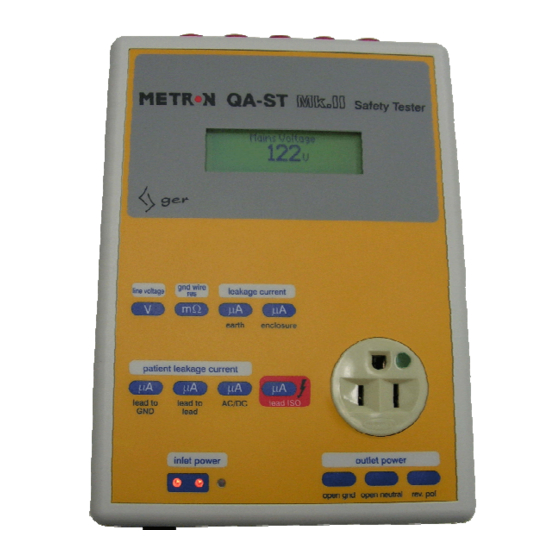

- Page 1 QA-ST MKII Electrical Safety Tester (US Model) Getting Started Guide...
-
Page 2: Notices
METRON and its local representatives are not responsible for any costs, loss of profits, loss of data, or claims by third parties due to use of, or inability to use the QA-ST MKII Electrical Safety Tester. -
Page 3: Table Of Contents
QA-ST MKII – Getting Started Guide Table of Contents Notices..................i 1 Terms and Abbreviations ............1 2 Setup for Manual Testing ............1 3 Setup for Automated Testing ............. 2 4 Tests..................... 2 AC/DC Measurement Selection .......... 2 OE – Open Earth Test ............2 ON –... -
Page 4: Terms And Abbreviations
3. Connect the test cable to the Enclosure port on the right side of the unit. 4. Connect the test cable clamp to the metal enclosure of your DUT. 5. Connect the patient leads to the Patient leads ports in numerical order. 6. Perform any of the QA-ST MKII electrical safety tests. -
Page 5: Setup For Automated Testing
4. Consult the ansur test executive User Manual and the ansur QA-ST Plug-In User Manual for instructions on building and executing the automated test templates. 5. Perform any of the QA-ST MKII electrical safety tests. Tests For each test listed below, the following information is provided: test name, unit of measure, and options. -
Page 6: Rm - Reverse Mains Test
QA-ST MKII – Getting Started Guide (Tests, continued) RM – Reverse Mains Test This test will break both the Live/L1 and Neutral/L2 power lines to the DUT. It will then reverse the normal connection, so that what was Live/L1 is now Neutral/L2, and what was Neutral/L2 is now Live/L1. -
Page 7: Patient Leakage Current Lead-To-Ground Test
QA-ST MKII – Getting Started Guide (Tests, continued) Patient Leakage Current Lead-to-Ground Test “µA” – AC/DC, OE, ON, RM, OERM, ONRM Patient Leakage Current L-G AC ~ xxxµA This test measures the current, in microamps, from Mains: NC Lead: All the patient leads to Ground. - Page 8 QA-ST MKII – Getting Started Guide Appendix A Specifications QA-ST MK II US SUPPLY VOLTAGE MEASUREMENT LEAD ISO MEASUREMENTS Range: 90 - 125V • Range: 0 – 6000 µA RMS Accuracy: ± (2 % of reading + 2 digits) • Accuracy:...
- Page 9 QA-ST MKII – Getting Started Guide Appendix B Ordering Information 11046, QA-ST MKII Electrical Safety Tester, US Model (Part Number 2462722) Accessories: 11042, User Manual, CD (Part Number 11042) 11150, Carrying Case (Part Number 2462192) 17260, Hard Case (Part Number 2462161)
