Direct Tapping Machines

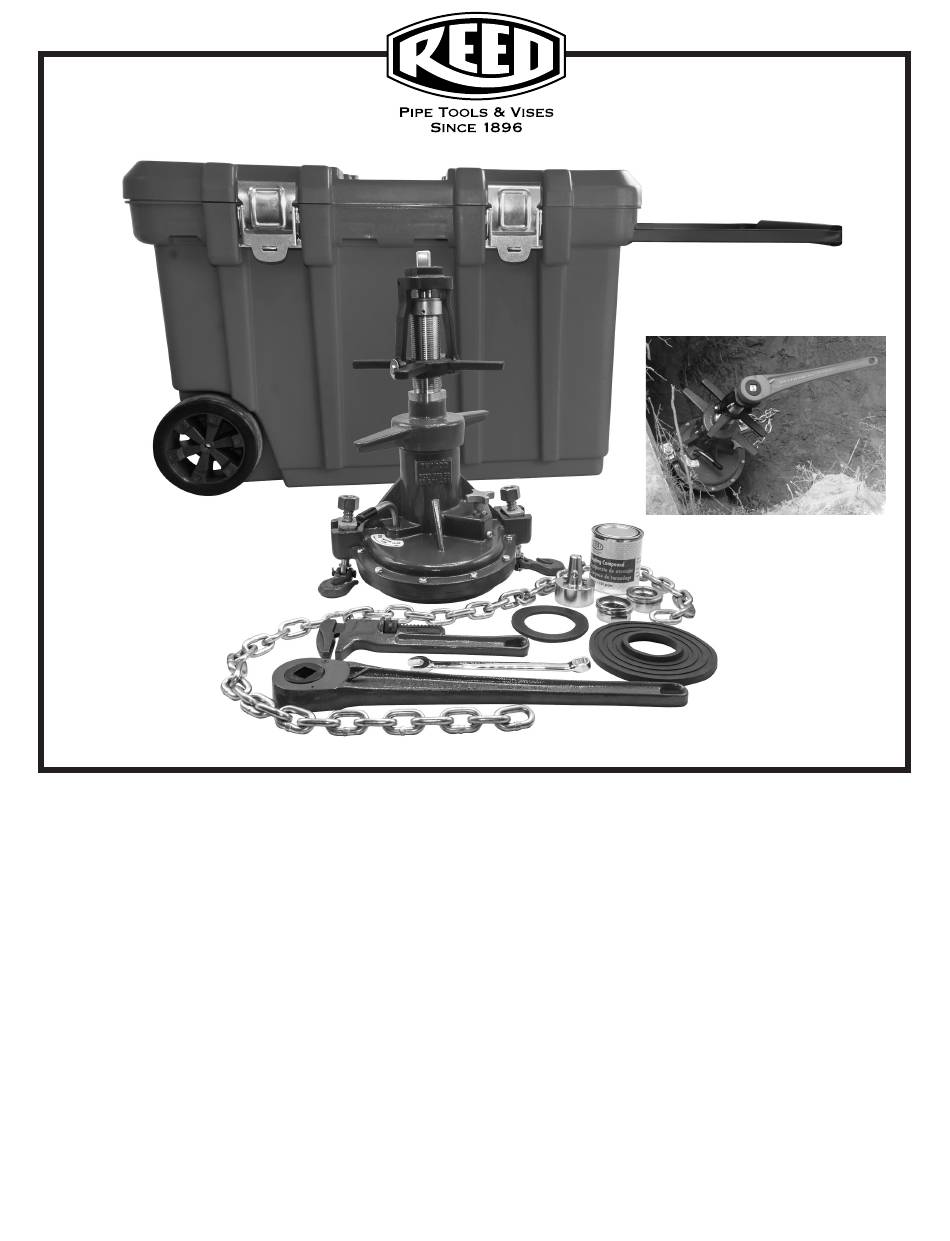

TM1100
Direct Tapping Machine Operator's Manual
Manual del operador para aterrajar
DIRECT TAPPING MACHINE - TM1100
COMBINATION TAPPING & DRILLING MACHINE - CDTM1100, CDTM2100
WARNING:
Read and fully understand all instructions before operat-
ing any of Reed's tapping or drilling machines. Failure to
follow all instructions listed inside, may result in serious
personnel injury and / or property damage.
1425 West 8th St.
1219-59300
REED MANUFACTURING COMPANY
P.O. Box 1321, Erie, Pa 16512 USA
www.reedmfgco.com
CONTENTS:
1) Basic Product Information
2) Operating Instructions
3) Maintenance Instructions
4) Parts Illustration, Parts List, and Necessary Accessories
Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
Operator's Manual
1
1219-59300

Advertisement

loading
Need help?

Need help?

Do you have a question about the TM1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for REED TM1100

  • Page 1 WARNING: CONTENTS: Read and fully understand all instructions before operat- 1) Basic Product Information ing any of Reed’s tapping or drilling machines. Failure to 2) Operating Instructions follow all instructions listed inside, may result in serious 3) Maintenance Instructions personnel injury and / or property damage.
  • Page 2: Tapping Machine - Tm1100

    Additional Specifications Assemble chamber to the pipe. • Tool Box overall outside dimensions: Clean area of pipe where tap will occur. Use a REED DS12 TM1100 27 x 5/8 x 13 3/4 X 14 or DS36 Descaler. See sketch for overall machine dimensions.
  • Page 3 Manually: Adjust the ratchet wrench resisting force to allow boring bar to slowly to turn clockwise. retract. b. Power Drive: Reed Power Drive Close the swing valve by pushing Adapter #98427, 700PDTMPDA down on the handle and turning it 90 Manual Use #05276 or 601PDTAP #05246.
  • Page 4 90 degrees A PIPE WRENCH. clockwise. Remove the corp adapter using the REED RCORP wrench provided. Push the Boring Bar down until the corp stop threads touch the pipe. If not already done, swing Yoke over the Boring Bar to engage the bearing.
  • Page 5: Maintenance Instructions

    2. 1-1/2” and 2” branch taps - clean more thoroughly. a. Install 99301 Sleeve. Lubricate the tool holding area of the boring bar with REED b. Reinstall bearing assembly. Line the set screw up with the #98425 Tapping Compound. lower hole in the boring bar. Drive the screw in until recessing Flush the bottom chamber with a water hose to remove any the screw slightly.
  • Page 6 Direct Tapping Machines Operator’s Manual TM1100 Tapping Machine TM1100 Tapping Parts Illustration, Parts List, and Necessary Accessories: Replacement Parts Feed Assembly Saddle “Necessary Accessories” Boring Bar Assembly 1219-59300 Reed Manufacturing Company Phone: 800-666-3691 or 814-452-3691...
  • Page 7 Operator's Manual 59300 Note: Extension chain and clevis to be used to extend TM1100 beyond basic 16" diameter capacity. Add one chain and clevis for up to 32" capacity. Add two chains and clevisis for capacity up to 48". See Also RP11...
  • Page 8 No warranty claims will be allowed unless the product in question is received freight prepaid at the REED factory. All warranty claims are limited to repair or replacement, at the option of REED, at no charge to the customer. REED is not liable for any damage of any sort, including incidental and consequential damages.
