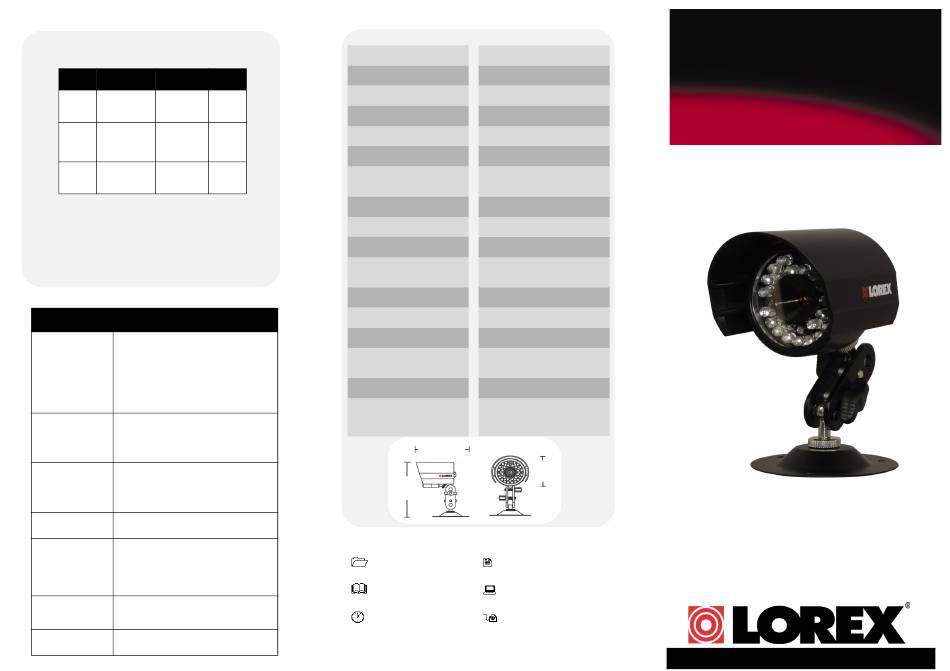

Lorex CVC6996 Series Quick Start Manual

Cable Extension Options
Extend the cable run for your camera up to 300ft or more
depending on the cable type used. See table below:
Max. # of
Max. Cable
Option Cable Type
Run Distance Extensions
1 Regular BNC 180ft / 55m
(supplied with
camera)
2 'RG59' or 'Coax' 300ft / 92m
or ' Coaxial'
BNC (sold sepa-
rately)
3 Lorex Universal 300ft / 92m
Cable
(sold separately)
Notes:
1. For optimal performance, consider using option 2 or 3. Preference for using
the same cable type for the entire distance.
2. Cable run recommendation based on typical camera power consumption (up
to 500mA). For specialty cameras with higher current consumption,
maximum cable run may be reduced. Consider providing power to the camera
at the camera side rather then at the end of the extension cable.
3. Indicators that your cable run may be too long:
• Video is permanently Black & White (even during day time)
• Video is distorted
Troubleshooting
Problem Solution
No Picture/Signal • Ensure your TV is on the correct input
channel. Common terms of an input channel:
INPUT, AV CHANNEL, LINE1, LINE2, AUX.
• If your camera is connected to a VCR/DVR,
ensure it is properly connected to your TV/
Monitor.
• Ensure connections are properly connected.
• Ensure all the camera power supply is
plugged in.
Picture is too bright • Ensure your camera isn't pointed directly at a
source of light (e.g sun or spot light).
• Slide the sunshade (bullet cameras only)
forward to block excess light.
• Move your camera to a different location.
Picture is too dark • If using during the day, the camera may not
be getting enough light. Slide the sunshade
backwards to let in more light. Check the
brightness and contrast settings of the device
your camera connects to (TV/Monitor/DVR).
Night Vision is not • The night vision activates when light levels
working drop. The area may have too much light.
Picture is not clear • Check the camera lens for dirt, dust,
spiderwebs. Clean the lens with a soft, clean
cloth.
• Make sure that the cable run is within the
limitations specified in the section ' Cable
Extension Options'
Bright spot in video • Night vision reflects when pointing a camera
when viewing camera to a window. Move the camera to a different
at night location.
BNC connection does • Use a BNC to RCA adapter at the end of the
not connect to my TV extension cable.
Camera Specifications
Image Sensor
Video Format / Pixels
Horizontal Resolution
3
Sync. & Scan. Systems
5
S/N Ratio
Iris & Shutter Speed
3
Minimum Illumination
Video Output
Lens / Lens Mount
FOV (diagonal)
Termination
IR / Night Vision Range
Power Requirement
Power Consumption
Operating Temp.
Weight (with stand)
Dimensions
LxWxH
(with sunshade)
5.1"/
129mm
IT'S ALL ON THE WEB!
Product Information
User Manuals
Quick Start Guides
Lorex Technologies Inc.
Copyright © 2010 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
1/4" Advanced Color
NTSC: 656(H) x 492 (V)
480 TVL
Internal; 2:1 Interlace
> 48dB
AES; 1/60 ~ 1/50,000 sec.
0.6 LUX @ F1.2 (IR off)
0 LUX (IR LEDs on)
Comp. 1.0 Vpp @ 75ohm
5.0 mm F2.8/ Fixed
50 Degrees
Video: BNC Female
Power: Barrel Female
30 IR LEDs/850nm/75' (23m)
12V DC ±10%
220 mA or 3W max
14°F ~ 122°F
(-10°C ~ 50°C)
0.66 lb / 0.3 kg
5.1" x 3" x 5.1"
130 mm x 75 mm x 129 mm
5.1"/130mm
3"/ 75mm
3.2"/80mm
2.5"
62mm
www.lorextechnology.com
Specification Sheets
Software Upgrades
Firmware Upgrades

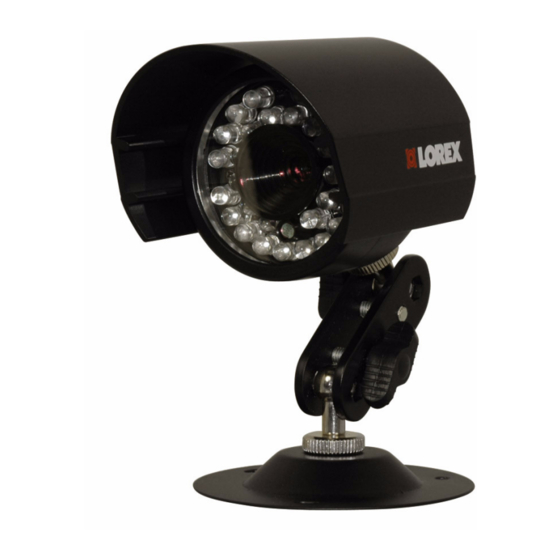

HIGH RESOLUTION
INDOOR/OUTDOOR
COLOR CAMERA
with Night Vision
MODEL: CVC6996 SERIES
QUICK START GUIDE
English Version 1.0
