- Page 1 M A X I M I Z I N G Y O U R P E R F O R M A N C E S E A...
- Page 3 Instruction Manual Simrad HT50/HT51 Axis 50 GMDSS Handheld VHF Radios E03766 Issue 2.0...
- Page 4 HT50/HT51/Axis 50 GMDSS © 2005 Simrad Ltd The technical data, information, and illustrations contained in this publication were to the best of our knowledge correct at the time of going to print. We reserve the right to change specifications, equipment, installation, and maintenance instructions without notice as part of our policy of continual development and improvement.
-
Page 5: Table Of Contents
Instruction Manual 1 GENERAL 1.1 Introduction ........2 OPERATION 2.1 Controls . -
Page 7: General

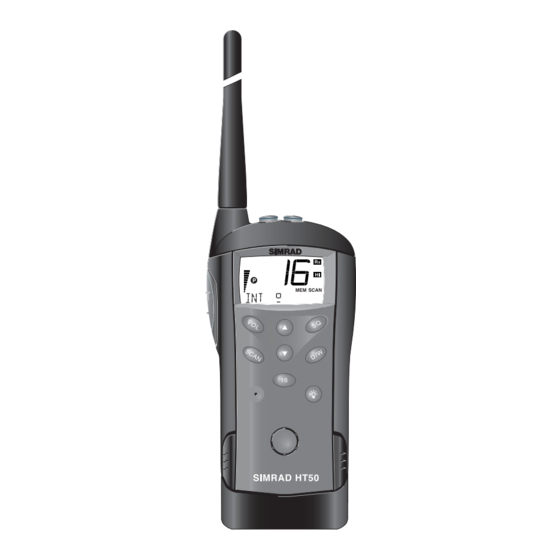

Instruction Manual 1 GENERAL 1.1 Introduction The Simrad waterproof handheld VHF range comprises three models: • The HT50 VHF radio is designed for leisure and light com- mercial use, and meets or exceeds stringent International Regulations EN301-178. • The HT51 model has all the features of the HT50, but includes an accessory socket for use with fistmikes, headsets, and other third party accessories. -
Page 8: Operation
HT50/HT51/Axis 50 GMDSS 2 OPERATION 2.1 Controls The location of the controls for the HT50 are shown in Fig 2.1. Functions: On / Off High / Low power, Keypad lock PTT (Push-To-Talk button) Volume mode select Squelch mode select Up key Down key Scan mode Dual Watch / Tri-Watch... - Page 9 Instruction Manual Pressing and holding certain keys will access additional func- tions. These are indicated by a double beep, or a triple beep if held for longer (Table 1). Press Press Press & hold Press & hold Hold Triple Double during Power Up Beep...
- Page 10 HT50/HT51/Axis 50 GMDSS Bar graph – Power up Battery level Standby Battery level Transmit Battery level Volume mode Volume level Squelch mode Squelch level pressed Backlight level b Personal channel indicator Channel selected d Receiving or transmitting indicator High or Low power indicator Function indicator Selected channel stored in memory h Channel inhibited from scan...
-
Page 11: Selecting Secondary Channel Sets
Instruction Manual • The icon indicates that the selected channel is included in Memory Scan. • Press and hold until double beep sounds to scan all chan- nels (display shows “SCAN”). • Press and hold until triple beep sounds to inhibit/enable selected channel from scan (display shows “INH”... -
Page 12: Disable/Enable Key Beep
HT50/HT51/Axis 50 GMDSS 2.3 Disable/enable key beep The HT50 beeps every time a key is pressed to confirm opera- tion. To disable the key beep, press and hold SQ while turning the set on. Repeat this procedure to turn the key beep on again. Second level functions (such as All Channel Scan, Tri-Watch, etc.) will still be indicated by a beep, even if the key beep is disabled. -
Page 13: Charger Options
Instruction Manual 2.6 Charger options The HT50 is supplied with a TC50 trickle charger that will accept the whole radio or the battery only. The TC50 runs from a 12.6V–15.5V DC supply or from AC mains with an appropri- ate optional adaptor/power supply. Charging with the trickle charger takes approximately 12–16 hours. -
Page 14: Ht51 Accessory Socket
HT50/HT51/Axis 50 GMDSS When using a lithium battery pack, the low-level battery indi- cator may flash under transmit conditions. This does not neces- sarily reflect the charge level remaining in the battery, as it is due to the different voltage characteristics of a Lithium battery pack under load. -
Page 15: Appendix
Instruction Manual 3 APPENDIX 3.1 Licensing Note Prior to use please check the national licensing requirements for operators. In the UK license applications and queries should be made to the following authority: Ship Radio Licencing Radio Licencing Centre The Post Office P.O. -
Page 16: Antenna
HT50/HT51/Axis 50 GMDSS 3.2 Antenna The antenna for the radio is fitted to the unit via a robust screw fitting to an M6 threaded socket on the top of the radio. This system is more rugged than a traditional BNC connector, so the radio’s drop-proof integrity is not compromised by the antenna fixing. -
Page 17: Channel Frequencies
Instruction Manual 3.4 Channel frequencies Note Ch 0 will only be made available in the UK to Coastguard users with written authorization. Ch 70 is restricted for DSC (Digital Selective Calling) use only and is therefore not available on the HT50 or Axis 50 VHF radio. -
Page 18: Battery Life Guidelines
HT50/HT51/Axis 50 GMDSS 3.5 Battery life guidelines New batteries should be fully (trickle) charged and fully dis- charged several times to achieve full capacity. To a large extent, the battery life will depend on the usage, or Duty Cycle, of the radio (Tables 2 and 3), i.e. the battery will be drained much quicker if the radio is transmitting continually than if it is just receiving. -
Page 19: Troubleshooting
Instruction Manual 3.6 Troubleshooting Symptom Possible cause Remedy Unit will not switch on • Battery not charged • Re-charge battery • Battery not attached correctly • Ensure battery is fully to radio engaged (see section 2.5) Scan or Memory Scan •... -
Page 20: Spares & Accessories
HT50/HT51/Axis 50 GMDSS 3.7 Spares & accessories The following spares and accessories are available from author- ized Simrad Service Agents. Please quote the relevant part number when ordering. ANT3 HT50 Batteries – Axis 50 GMDSS Batteries – Spare Antenna NH12 NC08 1200 mAh NimH Battery Pack 850 mAh NiCad Battery Pack... -
Page 21: Technical Specification
Instruction Manual 3.8 Technical specification Channel capability . .54 international channels 1–28, 60–69, 71–88 ....Up to 10 private channels* ....UK : includes M (previously 37) and M2 . -
Page 22: Declaration Of Conformity
HT50/HT51/Axis 50 GMDSS 3.9 Declaration of Conformity English Hereby, Simrad Limited (Margate) declares that this HT50/HT51 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Simrad Limited (Margate) vakuuttaa täten että HT50/HT51 tyyppinen laite on Finnish direktiivin 1999/5/EY oleellisten vaatimusten ja sitä... -
Page 23: Service & Warranty
Instruction Manual 3.10 Service & Warranty Your radio should seldom need servicing, although it will bene- fit from an application of silicone or Teflon grease to the battery contacts and antenna socket each season. For the HT51 only, please ensure the accessory connector is regularly greased. This unit is guaranteed for 2 years from date of retail sale. - Page 26 M A X I M I Z I N G Y O U R P E R F O R M A N C E S E A...
