E-27-S
6900-194-001_REV_B
Revised: 08-11-2020
User Manual
Stationary Models
P-10-S, P-15-S, P-22-S
E-15-S, E-22-S, E-22-SP, E-27-S, E-45-S
H-60-S, H-75-S, H-90-S, H-105-S
L-75-S, L-90-S, L-105-S, L-105-SL
S-85-S, S-85-SL, S-90-S, S-90-SL, S-110-S, S-110-SL
SB-100-S
S-110-SL
P.O. Box 3527
City of Industry, CA 91744-0527 U.S.A.
•
800-782-7706
626-968-6681
•
www.whitehallmfg.com
•
E-22-SP
Advertisement
Table of Contents

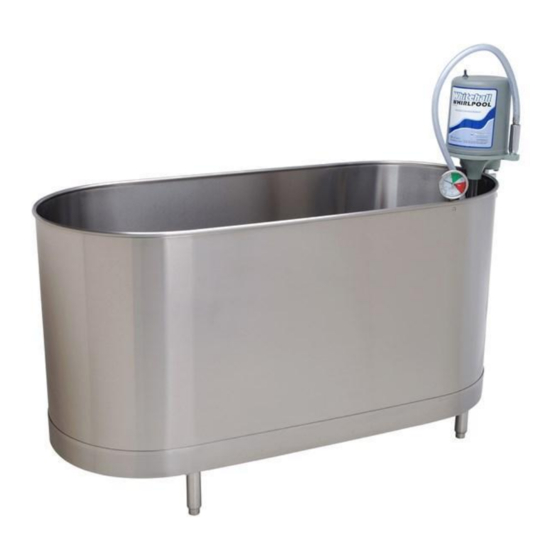

Summary of Contents for Morris Whitehall Podiatry P-10-S

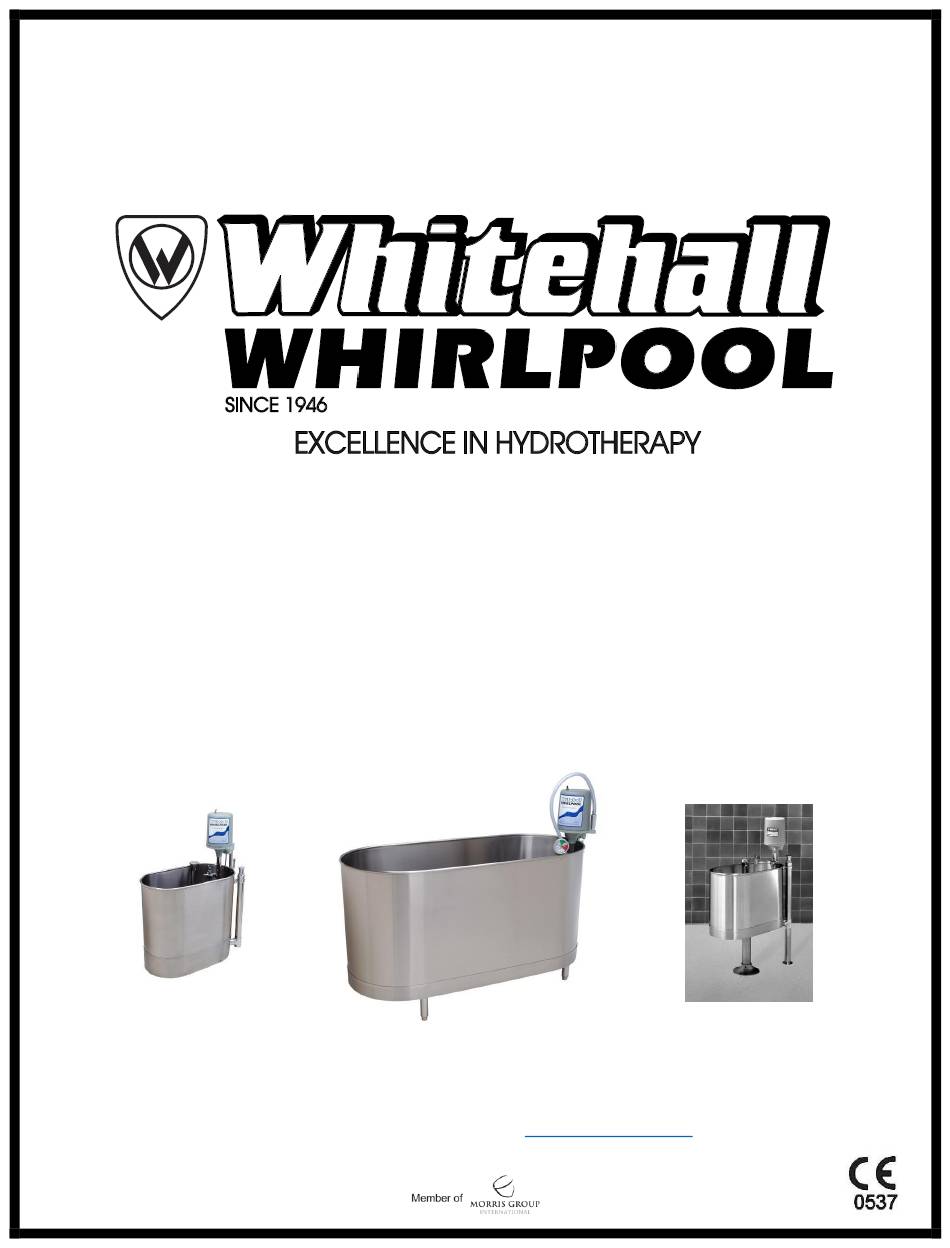

- Page 1 User Manual Stationary Models Podiatry P-10-S, P-15-S, P-22-S Extremity E-15-S, E-22-S, E-22-SP, E-27-S, E-45-S Hi-Boy H-60-S, H-75-S, H-90-S, H-105-S Lo-Boy L-75-S, L-90-S, L-105-S, L-105-SL Sports S-85-S, S-85-SL, S-90-S, S-90-SL, S-110-S, S-110-SL Slant Back SB-100-S E-27-S E-22-SP S-110-SL P.O. Box 3527 City of Industry, CA 91744-0527 U.S.A.
- Page 2 The information in this manual is proprietary and confidential to Whitehall Manufacturing, a division of Acorn Engineering and a member of Morris Group International. Any reproduction, dissemination or distribution of this document in whole or in part without prior written authorization of Whitehall Manufacturing is strictly prohibited. While every effort has been made to ensure the accuracy of information provided in this document, please note the information is subject to change without notice.
-
Page 3: Table Of Contents
Contents Symbols .............................. 4 Warnings ............................. 5 Intended Use ............................7 Contraindications ..........................7 User Skills ............................7 Device Description ..........................8 Options and Accessories ......................... 9 Facility Requirements ........................11 Instructions ............................14 Installation Instructions ........................14 Operating Instructions ........................16 Draining Instructions ........................ -
Page 4: Symbols
WARNING READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE OPERATING THE WHIRLPOOL Failure to follow the instructions in this manual could result in Whirlpool damage and/or bodily injury Symbols Waste Electrical and Electronic Equipment (WEEE) Indicates that the product must not be disposed of with regular waste. It is the customer’s responsibility to dispose of waste equipment according to local laws. -
Page 5: Warnings
Warnings Treatments: • Whirlpools are intended for use by a medical professional only, e.g., Physiotherapist, Physical Therapist, Rehabilitation Therapist, Athletic Trainers, Podiatrist. • During treatment, the medical professional must stay with patient at all times. • For Whirlpools that support that the entire mass of the patient, the maximum allowable patient mass is 135 kg (298 lbs). - Page 6 • To avoid damage to the thermometer, do not drop the thermometer or expose it to temperatures above 60°C (140°F). • No parts shall be serviced or maintained while in use with a patient. • To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth.
-
Page 7: Intended Use
Intended Use Whitehall Whirlpools are intended to facilitate hydrotherapy. Tub size, water temperature, and water circulation requirements are determined by the medical professional treating the patient. Whirlpools are intended for use in professional healthcare and supervised athletic training facilities only. Muscle or joint pain are the typical indications for hydrotherapy, and Whirlpools can be used for any part of the body below the neck. -
Page 8: Device Description
• To have become familiar with the Whirlpool before using it with a patient Device Description The Whirlpool consists of a welded stainless steel tub for holding water and a turbine assembly mounted to the side of the tub. The turbine assembly is a motor-operated centrifugal pump that circulates the water. -
Page 9: Options And Accessories
Options and Accessories The following options are incorporated into the Whirlpool device and are not detachable. Description Used on Models All –S models Separate Drain and Overflow Assembly Separate Drain Pump All -SL models Ground Fault Circuit Interruption Cable EGXX, where XX Powder Coat Paint All except Slant Back indicates the color of... - Page 10 Description Used on Instructions Models Loosen wing nuts on the lower TTS1 Tank Top Seat H-60-S mounting clip assemblies for 508 mm (20 H-75-S Position tank top seat assembly inch) wide tubs H-90-S over radius of tank and align hooks S-85-S with tank rim S-85-SL...
-
Page 11: Facility Requirements
Facility Requirements The following are needed prior to using your Whirlpool: • Clean water source for filling tub • Drain plumbed per Figure 1 (-S and –SP models only), installed by licensed plumber • A sink or floor drain (-SL models only) •... - Page 12 Key: L = Length 305 mm W = Width (12 in) REC. MIN. D = Depth OH = Overall Height CD = Center of Drain to Wall 279 mm (11 in) MIN. ③ Figure 1:-S and –SP Whirlpool installation diagram - see table below for L, W, D, OH, CW, and CD values. ①...
- Page 13 Dimension, mm (inches) Model # Overall Center of Height Drain to Wall P-10-S 559 (22) 305 (12) 457 (18) 330 (13) P-15-S 635 (25) 381 (15) 533 (21) P-22-S 711 (28) 381 (15) 457 (18) 610 (24) E-15-S 635 (25) 330 (13) 381 (15) 533 (21)
-
Page 14: Instructions
Instructions Installation Instructions To install tub 1. -S models: a. Connect tub drain to installed drain line using supplied 51 mm (2 inch) drain tube coupling and escutcheon and position the tub in desired location. b. Trace outline of skirt on floor near the four holes (for all but slant back) or six holes (for slant back) in the base of the skirt. - Page 15 NOTE: The turbine assembly can weigh as much as 22 kg (48 lbs). It is recommended that 2 people mount the turbine assembly onto the tub. To install the turbine (3) onto tub, 1. (Figure 3) Loosen handle (5) then lower turbine support rod (6) into turbine support tube.
-
Page 16: Operating Instructions
Operating Instructions Refer to warnings on page 5 before operating the Whirlpool. 1. Ensure Whirlpool power cord is plugged into medical-grade GFCI outlet. 2. Fill tub with water so that the bottom of turbine is at least 15.2 cm (6 inches) below surface of water. 3. -
Page 17: Draining Instructions
Draining Instructions 1. Turn the turbine power switch off to stop water circulation. 2. –SL models w/o separate drain pump (Figure 7): Either open drain valve (2) and drain to floor or a. Lower turbine to lowest position and lock in place. b. - Page 18 4. –SL models with separate drain pump (-SDP, Figure 11): a. Place discharge nozzle (5) into floor drain or sink. b. Turn the drain pump switch (18, Figure 4) on. When water stops discharging from the nozzle, turn the drain pump switch off. c.
-
Page 19: Thermometer Calibration Instructions
Thermometer Calibration Instructions 1. Fill the tub so that the bottom of the thermometer tip is immersed in at least 10.2 cm (4 inches) of water. 2. Place the stem tip of a calibrated thermometer next to the tip of the Whirlpool thermometer. -
Page 20: Disinfecting And Cleaning Instructions
Disinfecting and Cleaning Instructions Important: 1. Do not use abrasive compounds or applicators such as metal brushes – they can damage the whirlpool's appearance. Do not allow steel wool to come in contact with stainless steel. Steel particles can embed into the stainless steel surface and create rust. - Page 21 7. Spray or wipe all exposed surfaces with a mixture of suitable disinfectant solution per manufacturer’s instructions. Exposed surfaces shall remain wet for at least 10 minutes. 8. Drain the turbine bucket into the tub and open drain. 9. Rinse all exposed surfaces with warm or hot water. 10.
-
Page 22: Turbine Maintenance
Turbine Maintenance Motors are equipped with sealed greased ball bearings that do not require lubrication so are maintenance-free. Clean vent holes in the motor cover shell periodically to allow free air flow and prevent overheating. Troubleshooting Symptom Possible Cause Remedy Loss in Foreign material caught 1. -
Page 23: Classification
Classification Electric Shock Protection Class I Applied Parts None Ingress Protection IP24 Mode of Operation Continuous Specifications Mechanical P-10 P-15 P-22 S-85 S-90 S-110 SB-100 Water capacity 54.1 78.7 120.8 419.4 518.2 515.6 Liters (US Gallons) (14.3) (20.8) (31.9) (100.1) (110.8) (136.9) (136.2) - Page 24 Mailing Address: P.O. Box 3527 • City of Industry, CA 91744-0527 U.S.A Physical Address: 15125 Proctor Avenue • City of Industry, CA 91746 U.S.A Phone 800-782-7706 • 626-968-6681 Fax 626-855-4862 Web: www.whitehallmfg.com E-mail: info@whitehallmfg.com ARAZY GROUP [IRELAND] LIMITED 1st Floor, 9 Exchange Place. I.F.S.C., Dublin 1, D0l X8h2, Ireland ireland@arazygroup.com MANUFACTURER’S WARRANTY...
