PUSH TO STOP
TURN TO START
Model: ESTOP1-0H
•
Read these instructions carefully. Failure to follow these instructions completely could damage the product or cause
a hazardous condition.
•
Check the ratings given in the instructions and on the product your installing to make sure the E-Stop Gas Timer is
suitable for your application. See description below.
•
Installer must be a trained, experienced service technician or gas plumber.
•
After installation is complete, check out product operation as provided in these instructions.
Description

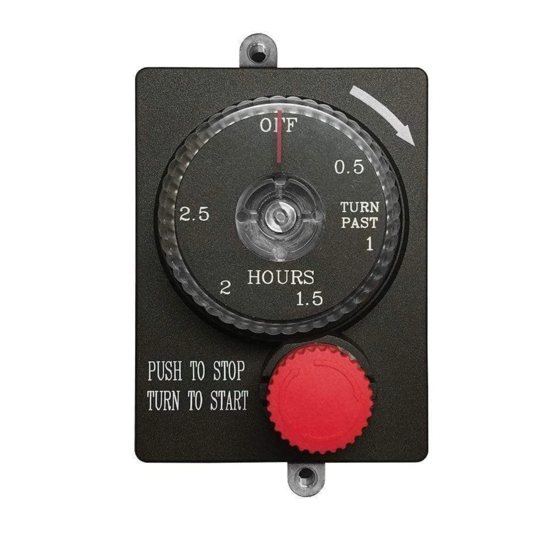

The E-Stop Gas Timer is an emergency shut-off, mechanical timer, and manual shut-off gas valve
designed to be installed on the inlet side of a gas appliance to enable the user to control the time gas is allowed to flow
to a gas appliance. This is a mechanical timer (no batteries or power required) that has the ability to control gas flow for
1-hour (60 minutes) using the ESTOP1-0H model or 2.5-hours (150 minutes) using the ESTOP2-5H model. In addition,
both models have an emergency shut-off (red knob) that enables the user to quickly and easily shut the gas completely
OFF, should the need arise.
The E-Stop Gas Timer body is 4-inches high x 2 ⅞ -inches wide x 2 ⅛ -inches deep and can replace a manual shut-off
valve and meet local code requirements as the accessible shut-off valve. It can be use for multiple applications (indoor
or outdoor) from gas fire pits, gas grills, gas logs, gas torch lights, etc., wherever a shut-off valve is a requirement or a
specified by a customer.
Specifications
Pipe Size: ½" NPT (2) inlets and (2) outlets
CSA Rated Capacity: 165,000 Btu/Hr at 1" Pressure Drop (NG)
Timer Accuracy: 60 Min. +/- 15% or 2.5 Hrs.+/- 15%
Multiple Mounting Holes: Uses 3/16-24 machine threads
CSA Certified: Tested to ANSI Z21.21; CSA 6.5

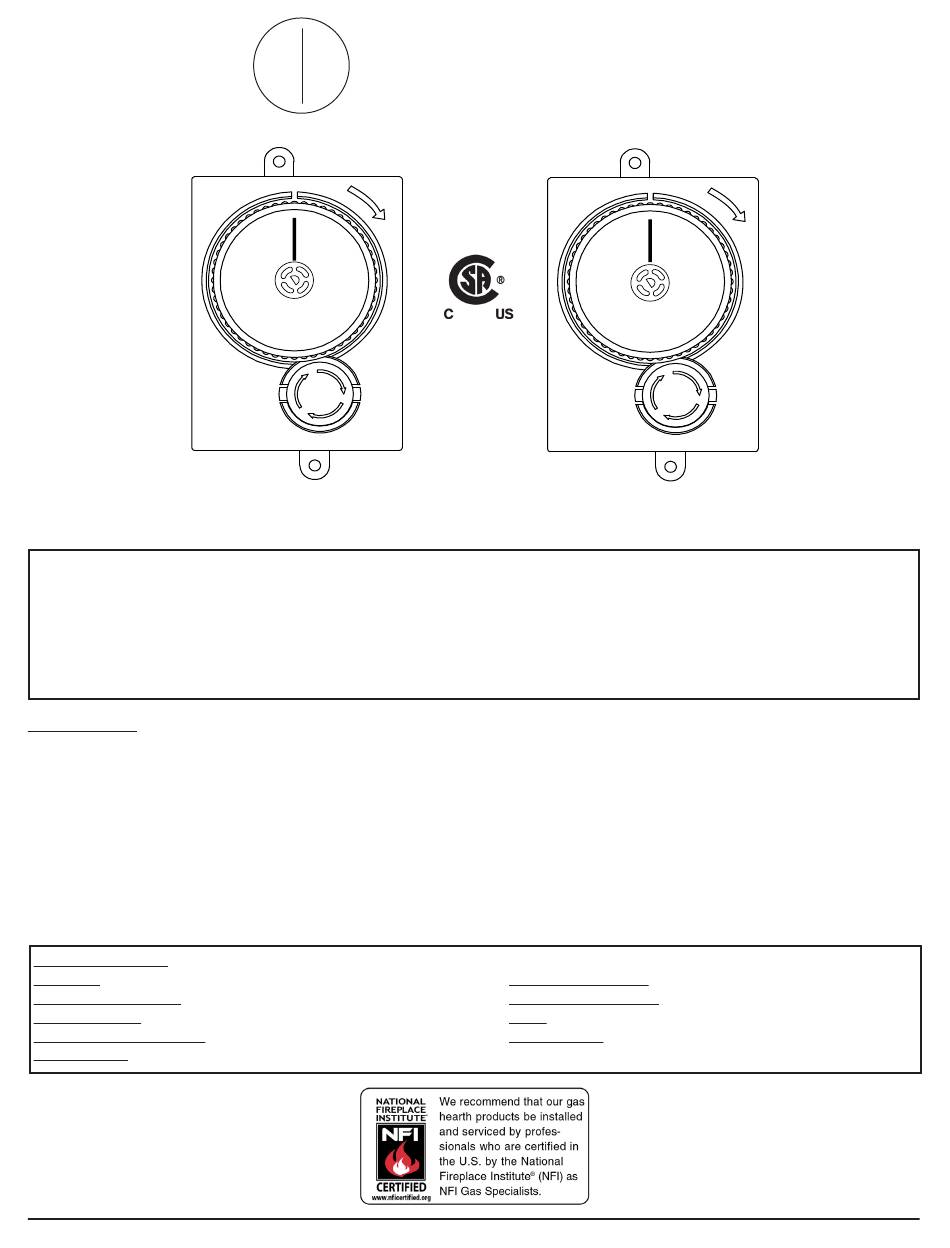

American Flame: E-Stop Gas Timer
A F
A M E R I C A N F L A M E
E-Stop Gas Timer
OFF
TURN
20
60
PAST
MINUTES
40
E-STOP1-0
2.5
2
PUSH TO STOP
TURN TO START
Model: ESTOP2-5H
WARNING
Maximum Pressure: ½" PSI
Ambient Temperature: 0°F to 175°F (79°C)
Inlets: Have fine mesh screens to filter any debris
Designed For: Natural or LP Gas (no conversion required)
OFF
0.5
TURN
PAST
1
HOURS
1.5
E-STOP2-5
REV. 12-28-17
Advertisement
Table of Contents
Summary of Contents for american flame ESTOP1-0H
- Page 1 This is a mechanical timer (no batteries or power required) that has the ability to control gas flow for 1-hour (60 minutes) using the ESTOP1-0H model or 2.5-hours (150 minutes) using the ESTOP2-5H model. In addition, both models have an emergency shut-off (red knob) that enables the user to quickly and easily shut the gas completely OFF, should the need arise.
- Page 2 Table 1 Pressure drop and capacity for Natural Gas. Table 2 Pressure drop and capacity for LP Gas). Note: Pressure drop information listed is generated in American Flame lab and is to be used as reference only. Mounting The E-Stop Gas Timer has the ability to be mounted from the side of the body, using the four (4) provided holes (two mounting holes per side) or using the two mounting hole tabs at the top and bottom of the body when facing forward.
- Page 3 “D” Shows Front View of E-Stop Fig. 3 Plumbing options Operation TO TURN ON Step 1: Rotate the clear timer dial past 20 (ESTOP1-0H) or Timer Dial: past 0.5 (ESTOP2-5H) to set the time. Timer will begin “ticking” Rotate clockwise to when the dial is turned while the countdown time is set.
- Page 4 Limited Warranty Skytech Products Group (American Flame) warrants the E-Stop Gas Timer for 12 months from the date of purchase or installation to the original purchaser to be free from defects in materials and workmanship. It is designed for INDOOR OR OUTDOOR USE.
