AFL U-Series 3RU Installation Manual

Splice and patch panel
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation Guide
3RU Splice and
Patch Panel
Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the U-Series 3RU and is the answer not in the manual?

Questions and answers

Summary of Contents for AFL U-Series 3RU

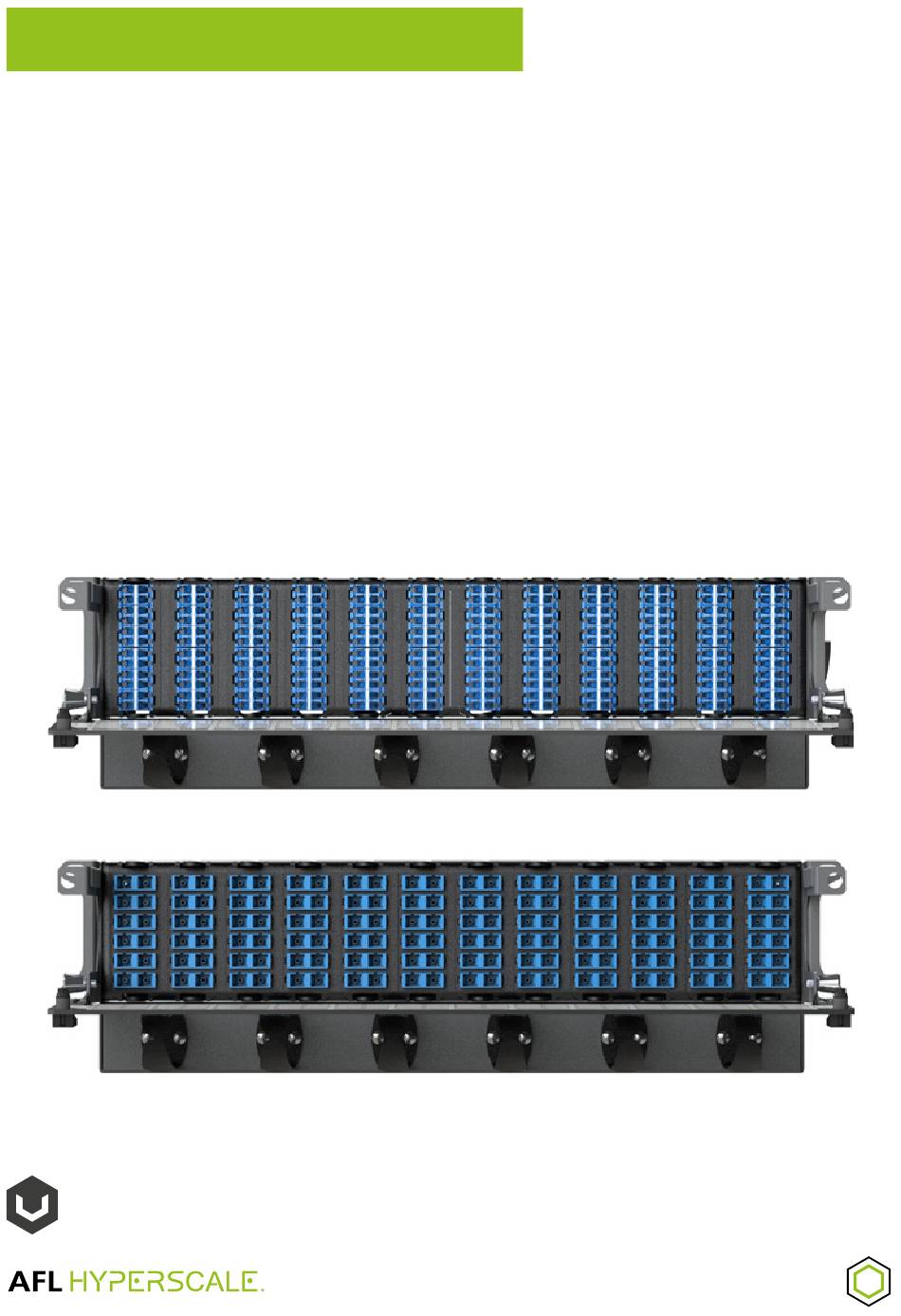

  • Page 1 Installation Guide 3RU Splice and Patch Panel Series...
  • Page 2 U-Series 3RU Splice and Patch Panel Before installing or adjusting this product, please read these instructions carefully. Please keep this guide for future reference. Safety Precautions General Precautions Personnel must be thoroughly familiarized with all applicable Occupational Health and Safety (OH&S) regulations, local regulations, and your company safety practices and policies.

  • Page 3: Component Overview

    U-Series 3RU Splice and Patch Panel Component Overview © AFL Hyperscale. All rights reserved Series...

  • Page 4: What You Will Need

    Ø11-16mm What You Will Need Related Products Cross-Head + Flat-Head FVP Pre-Terminated 250 μm WTC with SWR ® Screwdriver Replacement Cassette One-Click Cleaner U-Series 3456f & 6912f ® Breakout Box D-LC, Duplex LC © AFL Hyperscale. All rights reserved Series...

  • Page 5: Installation Procedure

    U-Series 3RU Splice and Patch Panel Installation Procedure Insert cage nuts (08) in the positions shown Insert the cage nut screws (08) with a above on both the left- and right-hand sides of screwdriver. the rack. Turn the quick release fasteners anti-clockwise Attach the front door assembly (07) as shown.
  • Page 6 Route the conduit (11) into the panel Push conduit (11) up and over the cable jacket and cable tie (10) it to the internal bracket and cable tie (10) the conduit to the bracket. as shown above. © AFL Hyperscale. All rights reserved Series...
  • Page 7 U-Series 3RU Splice and Patch Panel Installation Procedure Ensure the fiber is routed around these managers before cutting to the maximum length Pre-installed Inbound fiber ribbon pigtails Undress the fiber from all the managers and Dress the fiber into the panel as per the green...
  • Page 8 Aqua Pink LC Fiber Map 9 10 11 12 Adapter Plate Numbers Adapter Keyway Up Position Number Fiber/Tubing Color Blue Orange Green Brown Grey White Black Yellow Purple Pink Aqua SC Fiber Map © AFL Hyperscale. All rights reserved Series...
  • Page 9 U-Series 3RU Splice and Patch Panel Notes © AFL Hyperscale. All rights reserved Series...
  • Page 10 Notes © AFL Hyperscale. All rights reserved Series...
  • Page 11 U-Series 3RU Splice and Patch Panel Notes © AFL Hyperscale. All rights reserved Series...
  • Page 12 Thank you for choosing AFL Hyperscale AFL Hyperscale reserves the right to make changes in this Installation Guide at any time without notice www.aflhyperscale.com AFLHS3RUSPP270820...
