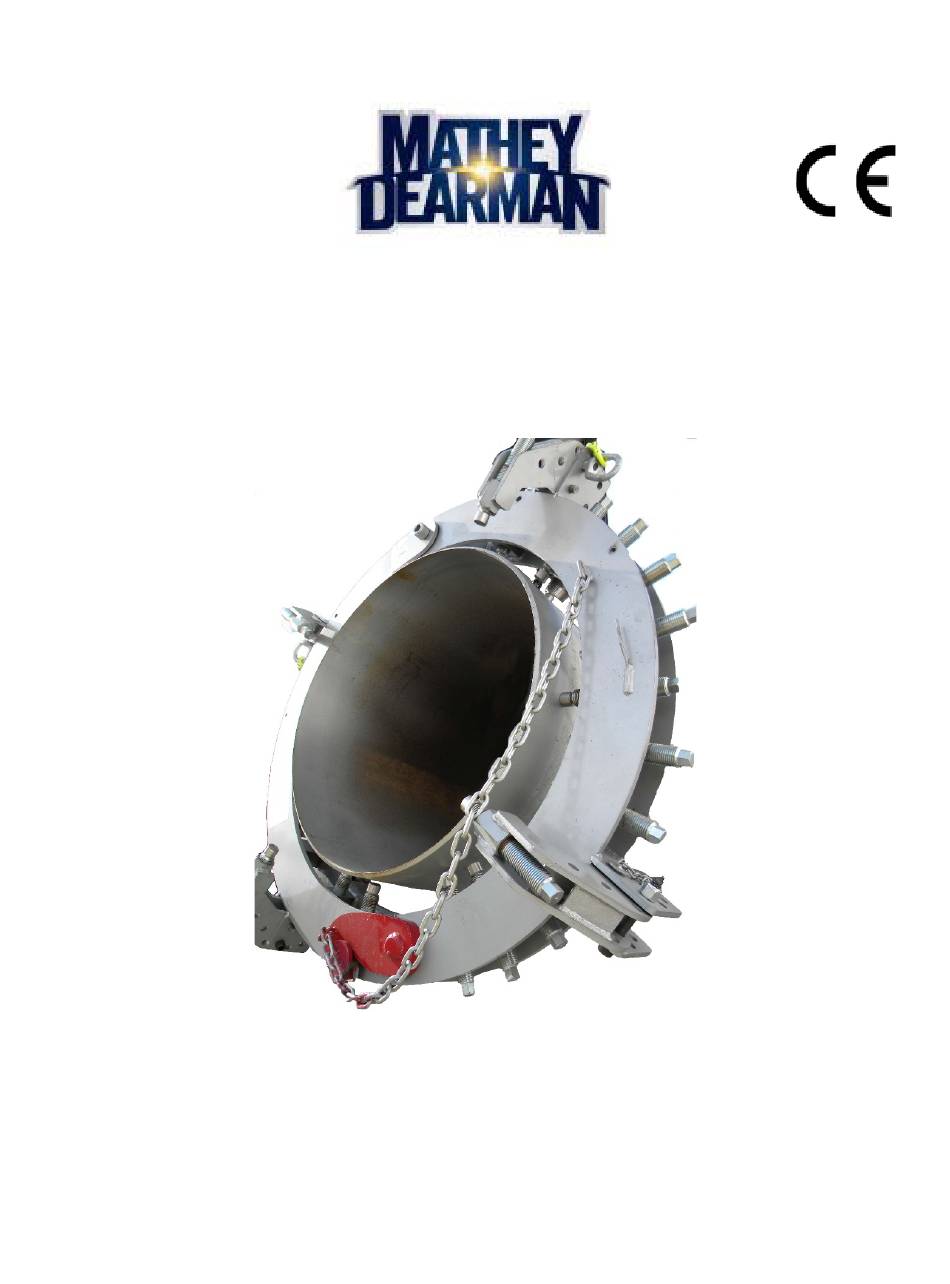

- Page 1 STANDARD & MEGA RIM CLAMP Operations and Maintenance Manual 4344 S Maybelle Avenue Tulsa, OK 74107 USA Revised: April 22, 2014, Phone: (918) 447‐1288 MODEL # __________________ Fax: (918) 447‐0188 Email: SERIAL # __________________ sales@mathey.com ...
- Page 2 SAFETY INSTRUCTIONS Mathey Dearman Equipment ALL WARNINGS PROVIDED IN THIS MANUAL MUST BE READ AND ALL PROCEDURES FOLLOWED IN AN EFFORT TO PREVENT INJURY OR DEATH TO PERSONNEL AND / OR DAMAGE TO THE EQUIPMENT. ONLY QUALIFIED AUTHORIZED PERSONNEL should operate Mathey Dearman equipment. This manual includes safety instructions throughout the operation instructions as well as those noted on this Safety Instruction page. Throughout this manual these warnings will be noted by theses warning symbols. ...
- Page 3 SAFETY INSTRUCTIONS STANDARD/MEGA RIM CLAMP OPERATION IN ADDITION TO THE ABOVE WARNINGS ALL NATIONAL AND INTERNATIONAL SAFETY RULES FOR THE USE OF THE RIM CLAMP MUST BE FOLLOWED TO PREVENT ANY INJURIES OR DEATH AS A RESULT OF IMPROPER CLAMPING PROCEDURES. TO REDUCE THE RISK OF SERIOUS OR INJURY DEATH THE STANDARD OR MEGA RIM CLAMP SHOULD NEVER BE USED TO LIFT THE PIPE UNDER ANY CIRCUMSTANCES. The pipe must have an external source of support at all times when the Standard or Mega Rim Clamp is being installed and during use. ONLY QUALIFIED, TRAINED AND AUTHORIZED PERSONNEL should ...
- Page 4 For Warranty Information visit www.mathey.com 4 ...
- Page 5 TABLE OF CONTENTS SAFETY INSTRUCTIONS 2‐3 WARRANTY INFORMATION 4 INTRODUCTION 5 CHART 1 ‐ Clamp Reforming Capacity 6 MAIN COMPONENTS 7 OPERATION INSTRUCTION 8‐10 Clamp Lifting and Latching 8 Clamp Positioning & Alignment 9 Pipe Reforming Instructions 10 Clamp release and removal 10 MAINTIANANCE 11 STANDARD & MEGA RIM CLAMP SIZES 12 CHART 2 ‐ Clamp Sizes 12 SPARE PARTS LIST 12 5 ...
- Page 6 NTRODUCTION The Mathey Dearman Rim‐Type Reforming Clamp is designed to reform pipe sizes from 4” to 72”. Reforming capabilities are based on pipe diameter and wall thickness. The body is designed to allow a full circumference weld and/or grind without the need to remove the clamp. There are two types of reforming clamps available. The first is the Standard Rim Clamp which has the capability to reform pipe with a maximum tensile strength of 45,000 psi. The second type is the Mega ...
- Page 7 AIN OMPONENTS WARNING: REDUCE THE RISK OF SERIOUS INJURYOR DEATH, NEVER USE THE STANDARD OR MEGA RIM CLAMP AS A LIFTING DEVICE FOR THE PIPE UNDER ANY CIRCUMSTANCES. 7 ...
- Page 8 PERATION NSTRUCTIONS Prior to using the Rim Clamp ensure that the lifting pressure has been released from the chain lifting mechanism by allowing the clamp to lightly rest on a flat surface. Once the pressure has been released, the operator may then unlatch the red latch hook by pulling on the hook release chain. This will allow the clamp to open so that it can be lowered onto the pipe (Figure 1). Smaller Rim Clamps, between 4” and 16” in size, may be placed over the pipe manually. Larger size rim clamps must be connected to a lifting device by using the chain lifting mechanism. (Figure 2). ...
- Page 9 Once the clamp is prepared, the operator should slowly lower the rim clamp onto the pipe so that the jackbars extend approximately two (2) inches beyond the end of the pipe. (See Figure 4) As the clamp is lowered onto the pipe, it will start to close. As the ...
- Page 10 When the two (2) pipe joints or pipe and fitting are aligned as closely as possible, determine which reforming screws can be used to reform the pipe to the mating pipe. Adjust the reforming jackscrews as needed to reshape the pipe to match the pipe joint or fitting that is being aligned. The reforming jackscrews should only be used where high spots exist. NOTE: It is not necessary to use all of the reforming jackscrews at the same time. Only tighten the reforming jackscrews that are over the high spots as well as the area of the pipe that is 180° from ...
- Page 11 AINTENANCE NSTRUCTIONS Before and after use, the Standard or Mega Rim Clamp should be inspected. The clamp frame should be checked for cracks or defects in the frame. All moving parts such as the stabilizers, reforming screws, moveable jackbar jackscrews, and red latch hook should be checked to insure proper movement and for any thread damage that may have occurred during use. All slag and debris should be cleaned and/or removed from the clamp prior to the next clamping operation. If the threads on the jackscrews are damaged, the user should use a file to smooth any rough edges to insure that they smoothly move in and out of the jackscrew nuts. The jackscrews should be lubricated with Loctite C5‐A Copper based Anti‐Seize lubricant every 10 hours of operation. Note: Any repairs made to the Standard or Mega Rim Clamp will void the Warranty. If repairs are needed, an authorized representative of the company must contact Mathey Dearman immediately at 918.477.1288 or 800.725.7311 WARNING: Any repairs made to the Standard or Mega Rim Clamp will void the Warranty. This may affect the integrity of the clamp and may result in serious injury or death or damage to equipment. Problems with the Standard or Mega Rim Clamp should be reported IMMEDIATELY to Mathey Dearman, Inc. Phone: 918.477.1288 | 800.725.7311 11 ...
- Page 12 & TANDARD AND EGA IM LAMP IZES PARE ARTS Standard Rim Mega Pipe Size Range Clamp Rim Clamp Inch Millimeter D711‐0406 D711‐0406M 4‐6 102‐152 D711‐0608 D711‐0608M 6‐8 152‐203 D711‐0810 D711‐0810M 8‐10 203‐254 D711‐1012 D711‐1012M 10‐12 254‐305 D711‐1214 D711‐1214M 12‐14 305‐356 D711‐1416 D711‐1416M 14‐16 356‐508 D711‐1618 ...
